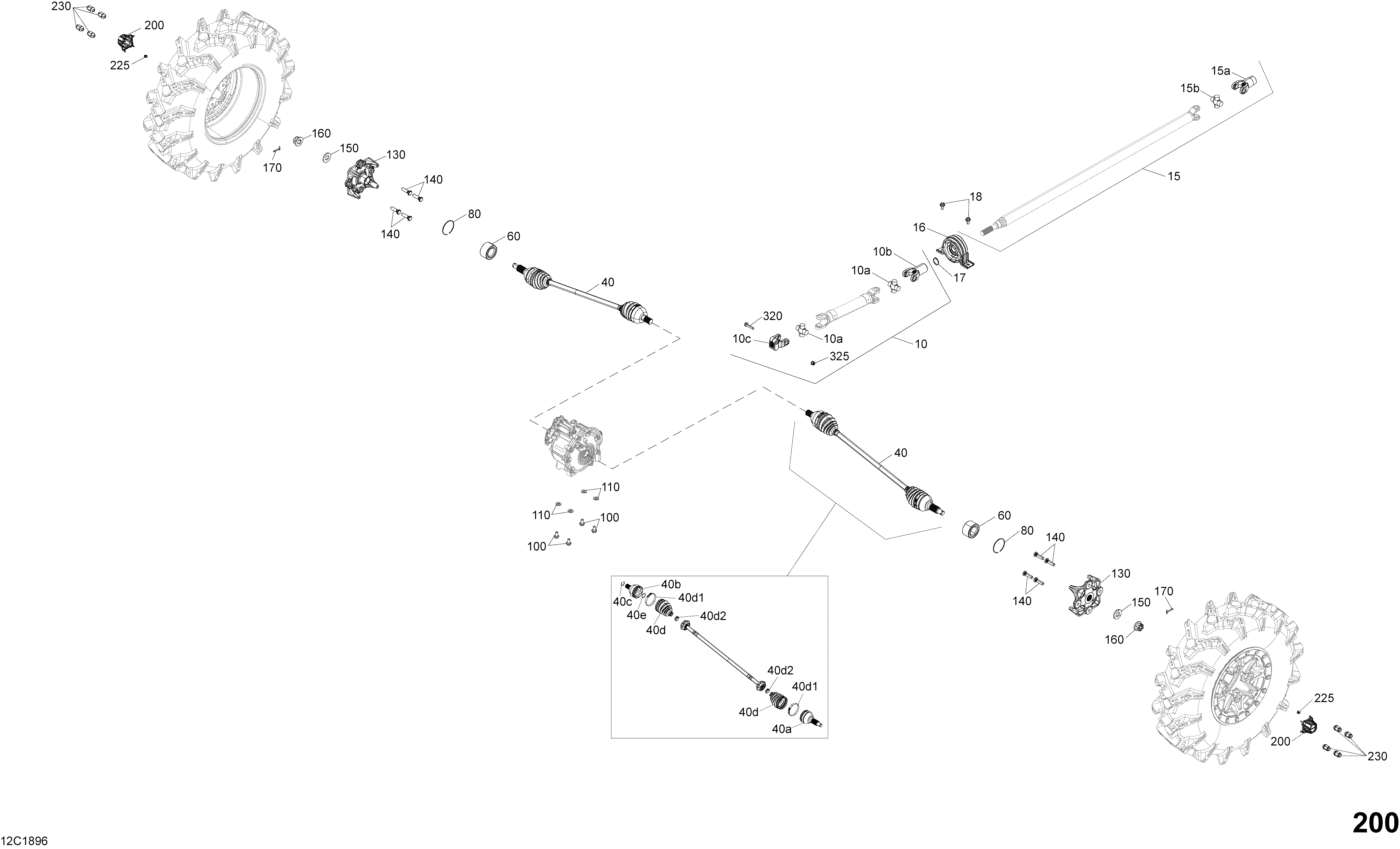

07- Front Drive - Main Parts - Turbo R - XRC для BRP 8- Maverick X3 Turbo R - XRC - 2018
-
№АртикулНазвание
-
10705402187 Drive Axle Ass'y. Includes 10 to 10cDrive Axle Ass'y. Includes 10 to 10c
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10b715900524 Fixed Yoke JointFixed Yoke Joint
-
10c715900401 YokeYoke
-
15705402026 Drive Shaft Ass'y. Includes 15 to 15bDrive Shaft Ass'y. Includes 15 to 15b
-
15a715900401 YokeYoke
-
15b715900402 J-Joint Cross KitJ-Joint Cross Kit
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
40705402048 Half ShaftHalf Shaft
-
40a715900574 CV JointCV Joint
-
40b715900575 Plunging JointPlunging Joint
-
40c715900569 CirclipCirclip
-
40d705401354 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40d1715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40e715900580 O-ringO-ring
-
60293350109 Ball BearingBall Bearing
-
80293370102 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
110234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705502122 Wheel HubWheel Hub
-
140250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
200705401841 Wheel CapWheel Cap
-
225293000110 Valve CapValve Cap
-
230250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
320250000952 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
