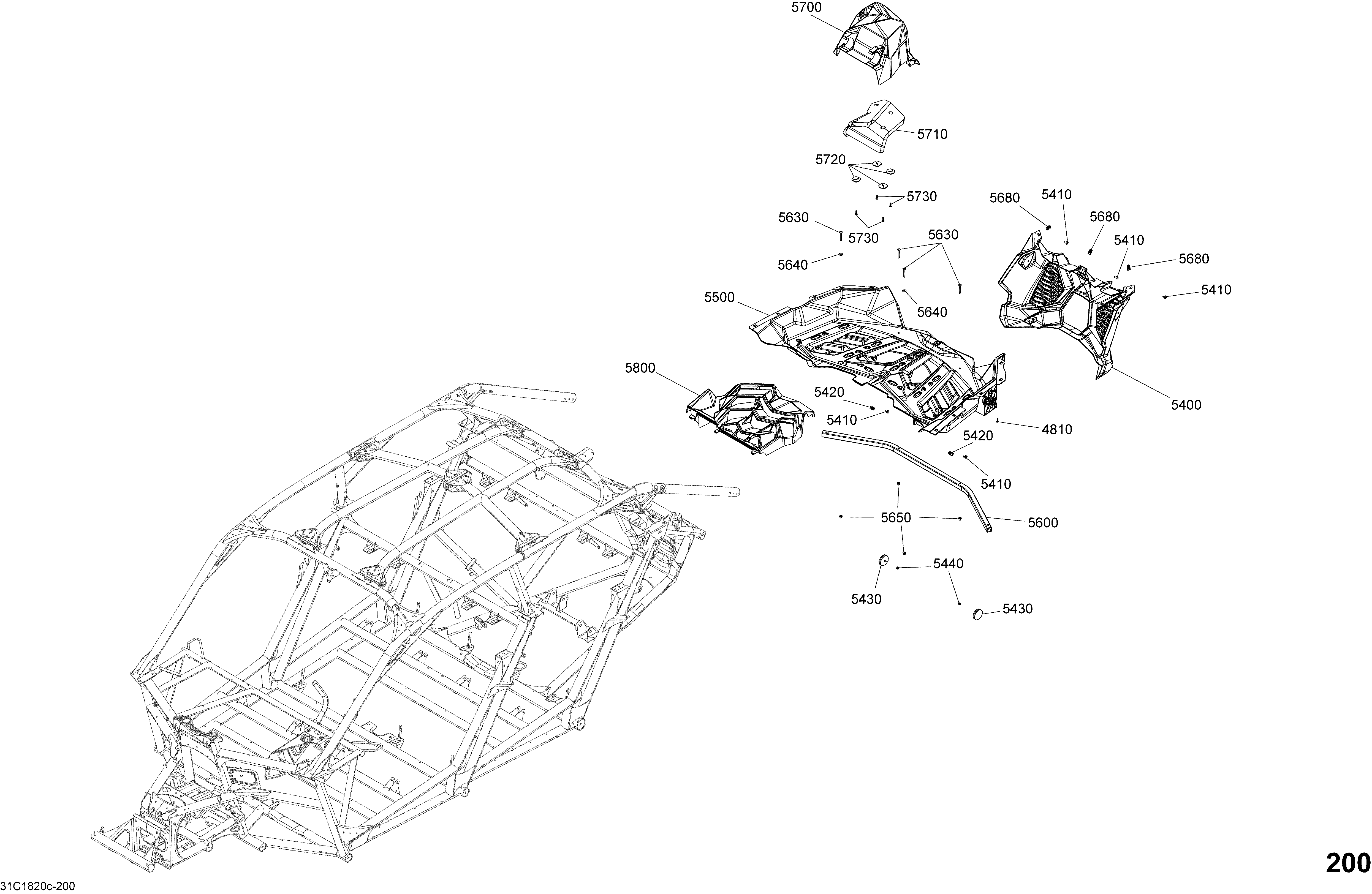

09- Body Parts - Liquid Gold - Package Xrs DPS - Rear Section для BRP 91- Maverick X3 MAX Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400705010001 Rear FaciaRear Facia
-
5410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5420250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
5430705011221 Red ReflectorRed Reflector
-
5440233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5500715004063 Luggage RackLuggage Rack
-
5600705012589 TubeTube
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5680250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
5700705012700 Air Inlet CoverAir Inlet Cover
-
5710705011293 Foam Air Intake CoverFoam Air Intake Cover
-
5720705003841 Support PlateSupport Plate
-
5730250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
5800705010286 Rear CoverRear Cover
