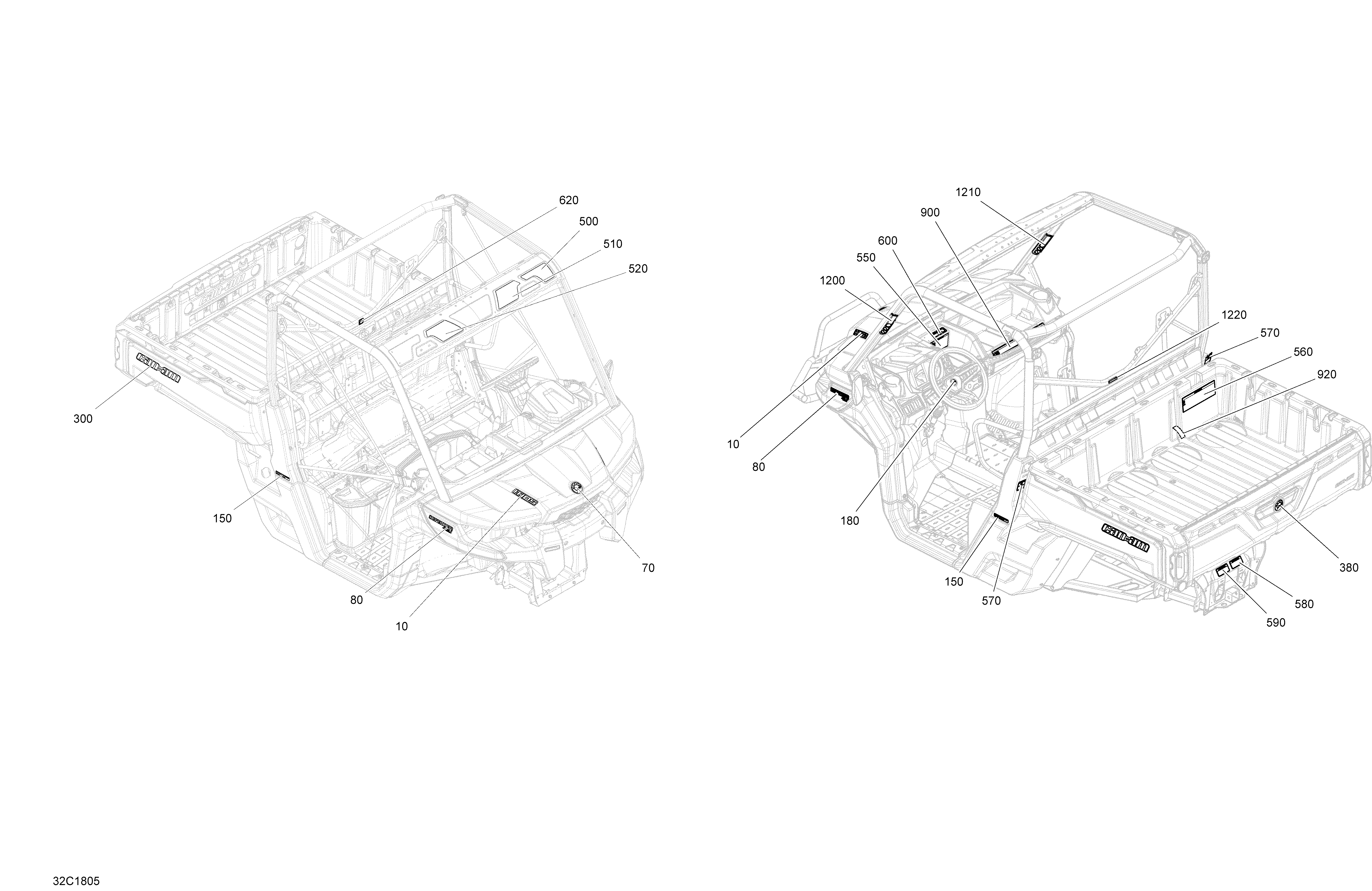

09- Decals Traxter Non MAX HD5 Package BASE для BRP 1- Traxter HD5 - 2018
-
№АртикулНазвание
-
10704906139 Hood Decal HD5Hood Decal HD5
-
70516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
80704906873 Lateral Decal TraxterLateral Decal Traxter
-
150704905524 Decal, Rotax PowerDecal, Rotax Power
-
180704904274 CAN-AM LogoCAN-AM Logo
-
300704905529 Decal Can-AmDecal Can-Am
-
380516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
500704905476 Warning Label Operator's GuideWarning Label Operator's Guide
-
510704905506 Warning Label Operator's GuideWarning Label Operator's Guide
-
520704905487 Warning Label PassengerWarning Label Passenger
-
550704905913 Warning Label DashWarning Label Dash
-
560704906947 Warning Label Cargo LoadWarning Label Cargo Load
-
570704905488 Warning Label InjuryWarning Label Injury
-
580704906404 Warning Towing DecalWarning Towing Decal
-
590704905481 Warning Label TrailerWarning Label Trailer
-
620704906029 Label SymbolLabel Symbol
-
900704905492 Inter. Multilanguage LabelInter. Multilanguage Label
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
1200704906768 Warning Label Roll OverWarning Label Roll Over
-
1210704906769 Warning Label Roll OverWarning Label Roll Over
-
1220704905500 Warning Label CageWarning Label Cage
