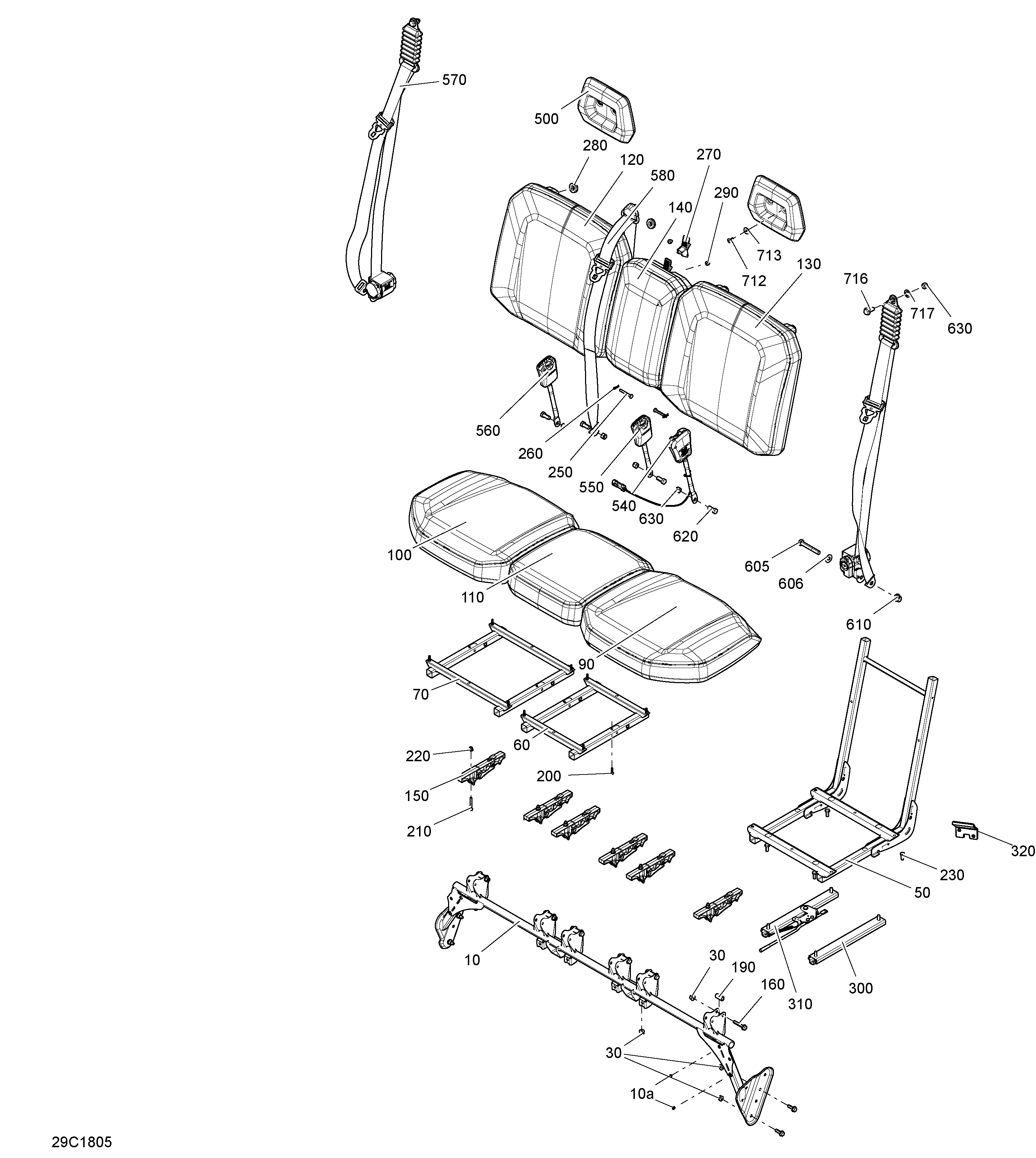

09- Seat Traxter - HD8 для BRP 2- Traxter HD8 - 2018
-
№АртикулНазвание
-
10708001904 Seat Support. Package DPS. Includes 10 to 10aSeat Support. Package DPS. Includes 10 to 10a
-
10708001904 Seat Support. Package STD. Includes 10 to 10aSeat Support. Package STD. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50708001723 Operator Seat Member. Includes 50 to 50aOperator Seat Member. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60708002527 Middle Seat FrameMiddle Seat Frame
-
70708002524 Seat FrameSeat Frame
-
90708002544 LH Cushion Ass'y. Package DPSLH Cushion Ass'y. Package DPS
-
90708002544 LH Cushion Ass'y. Package STDLH Cushion Ass'y. Package STD
-
100708001498 RH Cushion Ass'y. Package STDRH Cushion Ass'y. Package STD
-
100708001498 RH Cushion Ass'y. Package DPSRH Cushion Ass'y. Package DPS
-
110708001629 Central Cushion Ass'y. Package STDCentral Cushion Ass'y. Package STD
-
110708001629 Central Cushion Ass'y. Package DPSCentral Cushion Ass'y. Package DPS
-
120708001701 Backrest Ass'y. Package DPSBackrest Ass'y. Package DPS
-
120708001701 Backrest Ass'y. Package STDBackrest Ass'y. Package STD
-
120708001995 Backrest Ass'y. Package PROBackrest Ass'y. Package PRO
-
130708001930 Backrest Ass'y. Package PRO. Includes 130 to 130aBackrest Ass'y. Package PRO. Includes 130 to 130a
-
130a293830005 Rubber BumperRubber Bumper
-
140708001630 Center Backrest Ass'y. Package DPSCenter Backrest Ass'y. Package DPS
-
140708001630 Center Backrest Ass'y. Package STDCenter Backrest Ass'y. Package STD
-
140708001932 Center Backrest Ass'y. Package PROCenter Backrest Ass'y. Package PRO
-
150708002581 Seat Base PivotSeat Base Pivot
-
160207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
190708001903 BushingBushing
-
200250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 GrommetGrommet
-
290293830005 Rubber BumperRubber Bumper
-
500708001721 Head RestHead Rest
-
540708002331 Driver BuckleDriver Buckle
-
550708002330 Middle BuckleMiddle Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708002642 Lateral Safety BeltLateral Safety Belt
-
580708002643 Central Safety BeltCentral Safety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
606250200102 Flat Washer M12Flat Washer M12
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
712250000721 Torx ScrewTorx Screw
-
713250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
716708000890 Safety Belt ScrewSafety Belt Screw
-
717708000891 Position WasherPosition Washer
