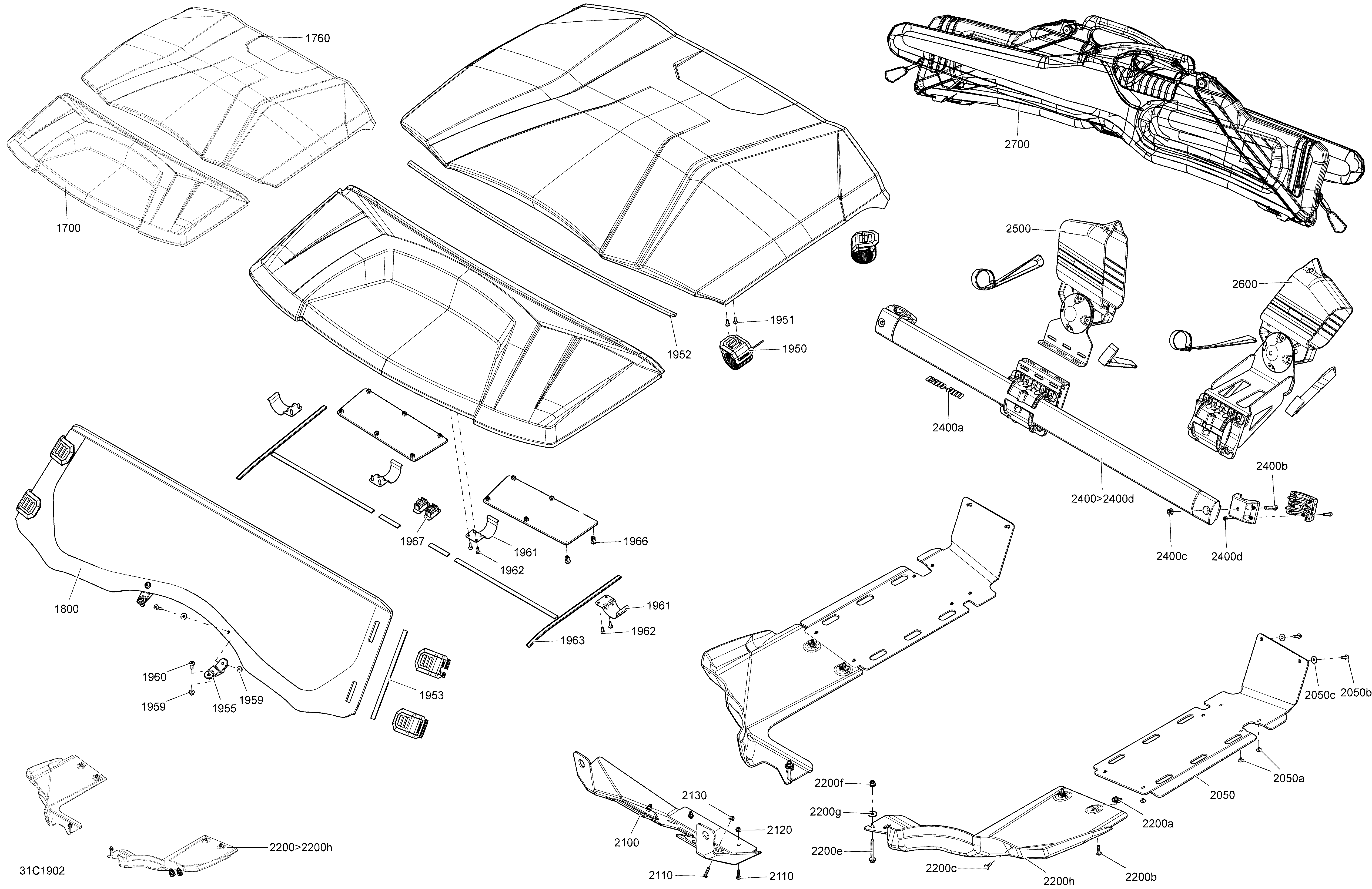

09- Body And Accessories - Accessories - Hunting Edition для BRP 002 - Commander 1000R EFI - North America - 2019
-
№АртикулНазвание
-
1700715001952 Roof Visor Ass'y. Includes 1700 to 1700dRoof Visor Ass'y. Includes 1700 to 1700d
-
1700a705009030 ''U'' Brace Strip''U'' Brace Strip
-
1700c293250087 Gasket, NeopreneGasket, Neoprene
-
1700d710001999 Plug CarlingPlug Carling
-
1700f293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1760715001949 Mid Roof Kit. Includes 1760 to 1760bMid Roof Kit. Includes 1760 to 1760b
-
1760b293200136 Seal, MeterSeal, Meter
-
1760c293250087 Gasket, NeopreneGasket, Neoprene
-
1760715001949 Mid Roof KitMid Roof Kit
-
1800703501024 Windshield Half Ass'yWindshield Half Ass'y
-
1950705013420 Retainer Velcro PerforatedRetainer Velcro Perforated
-
1951250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1952293200136 Seal, MeterSeal, Meter
-
1953293250087 Gasket, NeopreneGasket, Neoprene
-
1954705011349 J ClipJ Clip
-
1955705006537 Windshield SupportWindshield Support
-
1956293250087 Gasket, NeopreneGasket, Neoprene
-
1959233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1960250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1961705009030 ''U'' Brace Strip''U'' Brace Strip
-
1962250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1963293250087 Gasket, NeopreneGasket, Neoprene
-
1966293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1967710001999 Plug CarlingPlug Carling
-
1969250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1970233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
2050715001640 LH Rear Skid Plate. Includes 2050 to 2050dLH Rear Skid Plate. Includes 2050 to 2050d
-
2050a293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050b210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
2050c234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2055293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2100705205448 Front ProtectorFront Protector
-
2110250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2120250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2130233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2200715002494 Side Skid Plate Kit. Includes 2200 to 2200jSide Skid Plate Kit. Includes 2200 to 2200j
-
2200a250100111 Panel Nut M8Panel Nut M8
-
2200b250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
2200c250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
2200d250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
2200e207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
2200f233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
2200g234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2200h705009032 Support PlateSupport Plate
-
2400715001320 Support Multi function. Includes 2400 to 2400dSupport Multi function. Includes 2400 to 2400d
-
2400a704904566 CAN-AM DecalCAN-AM Decal
-
2400b207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
2400c233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
2400d232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
2500715001420 Gun Boot SupportGun Boot Support
-
2600715001586 2ND Gun Boot Support2ND Gun Boot Support
-
2700715001419 Gun Boot kitGun Boot kit
