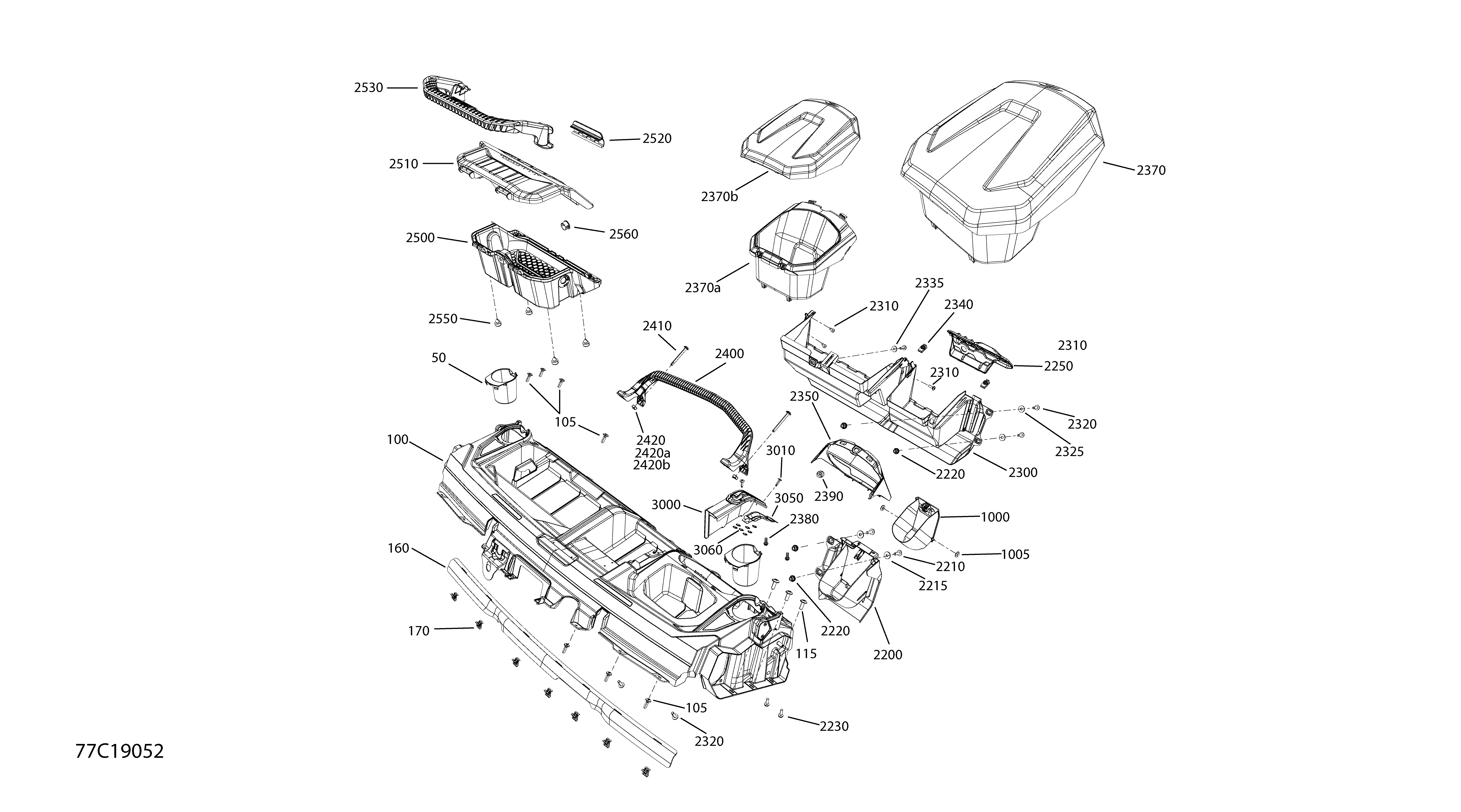

09- Cab Interior - Except XT CAB - Dash Section для BRP 004 - Defender MAX HD8 - North America - 2019
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
100715005588 Dashboard Kit. Except Package XMRDashboard Kit. Except Package XMR
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
115250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
160707900411 Dash TrimDash Trim
-
170517302785 Edge ClipEdge Clip
-
1000707900252 Drawer. Except Package BASEDrawer. Except Package BASE
-
1005293300194 O-Ring. Except Package BASEO-Ring. Except Package BASE
-
2200707900251 LH Lower Dash. Except Package BASELH Lower Dash. Except Package BASE
-
2210250000722 Torx Screw M6 X 20. Except Package BASETorx Screw M6 X 20. Except Package BASE
-
2215234062670 Flat Washer, Stainless. Except Package BASEFlat Washer, Stainless. Except Package BASE
-
2220250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2230250000720 Torx Screw K50 X 16. Except Package BASETorx Screw K50 X 16. Except Package BASE
-
2250707900320 Switches PanelSwitches Panel
-
2300707900250 RH Lower Dash. Except Package BASERH Lower Dash. Except Package BASE
-
2310250000720 Torx Screw K50 X 16. Except Package BASETorx Screw K50 X 16. Except Package BASE
-
2320250000722 Torx Screw M6 X 20. Except Package BASETorx Screw M6 X 20. Except Package BASE
-
2325234062670 Flat Washer, Stainless. Except Package BASEFlat Washer, Stainless. Except Package BASE
-
2335234062670 Flat Washer, Stainless. Except Package BASEFlat Washer, Stainless. Except Package BASE
-
2340250000957 Extruded Panel Nut M6. Except Package BASEExtruded Panel Nut M6. Except Package BASE
-
2350707900285 Cluster Support. Packages BASE & DPSCluster Support. Packages BASE & DPS
-
2350707900358 Cluster Support. Except Packages BASE & DPSCluster Support. Except Packages BASE & DPS
-
2370707900606 Storage Bin ASS'Y. Except Packages BASE & DPS. Includes 2370 to 2370bStorage Bin ASS'Y. Except Packages BASE & DPS. Includes 2370 to 2370b
-
2370a707900284 Storage Bin. Except Packages BASE & DPSStorage Bin. Except Packages BASE & DPS
-
2370b707900225 Storage Cover. Except Packages BASE & DPSStorage Cover. Except Packages BASE & DPS
-
2380241151640 Hex. Flanged Screw K50 X 2.24 X 16. Except Packages BASE & DPSHex. Flanged Screw K50 X 2.24 X 16. Except Packages BASE & DPS
-
2390705003264 Grommet. Except Packages BASE & DPSGrommet. Except Packages BASE & DPS
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2420269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2500707900244 Glove Box Base. Except Package BASEGlove Box Base. Except Package BASE
-
2510707900245 Glove Box Cover. Except Package BASEGlove Box Cover. Except Package BASE
-
2520269501945 Clip. Except Package BASEClip. Except Package BASE
-
2530707900567 Handle. Except Package BASEHandle. Except Package BASE
-
2550293830005 Rubber Bumper. Except Package BASERubber Bumper. Except Package BASE
-
2560293000120 Cap. Except Package BASECap. Except Package BASE
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3060250100178 Push NutPush Nut
