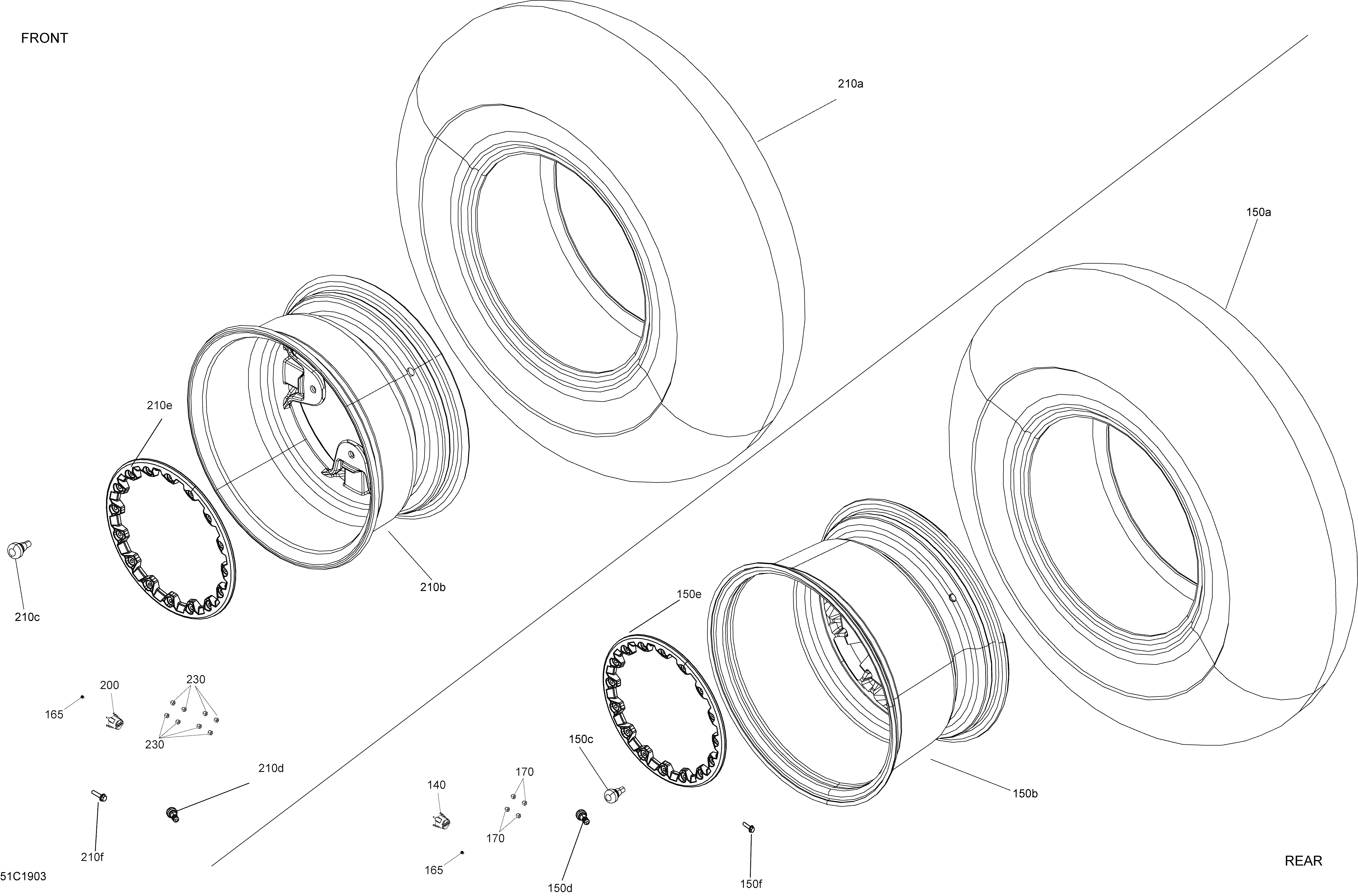

07- Wheels And Tires - XMR - Turbo для BRP 002 - Maverick Turbo - North America - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401841 Wheel CapWheel Cap
-
210a705402096 Front Tire Carlstar 30X9X14Front Tire Carlstar 30X9X14
-
210b705402256 RimRim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
230250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
140705401841 Wheel CapWheel Cap
-
150a705502621 Rear Tire Carlstar 30X11x14Rear Tire Carlstar 30X11x14
-
150b705402256 RimRim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
170250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
