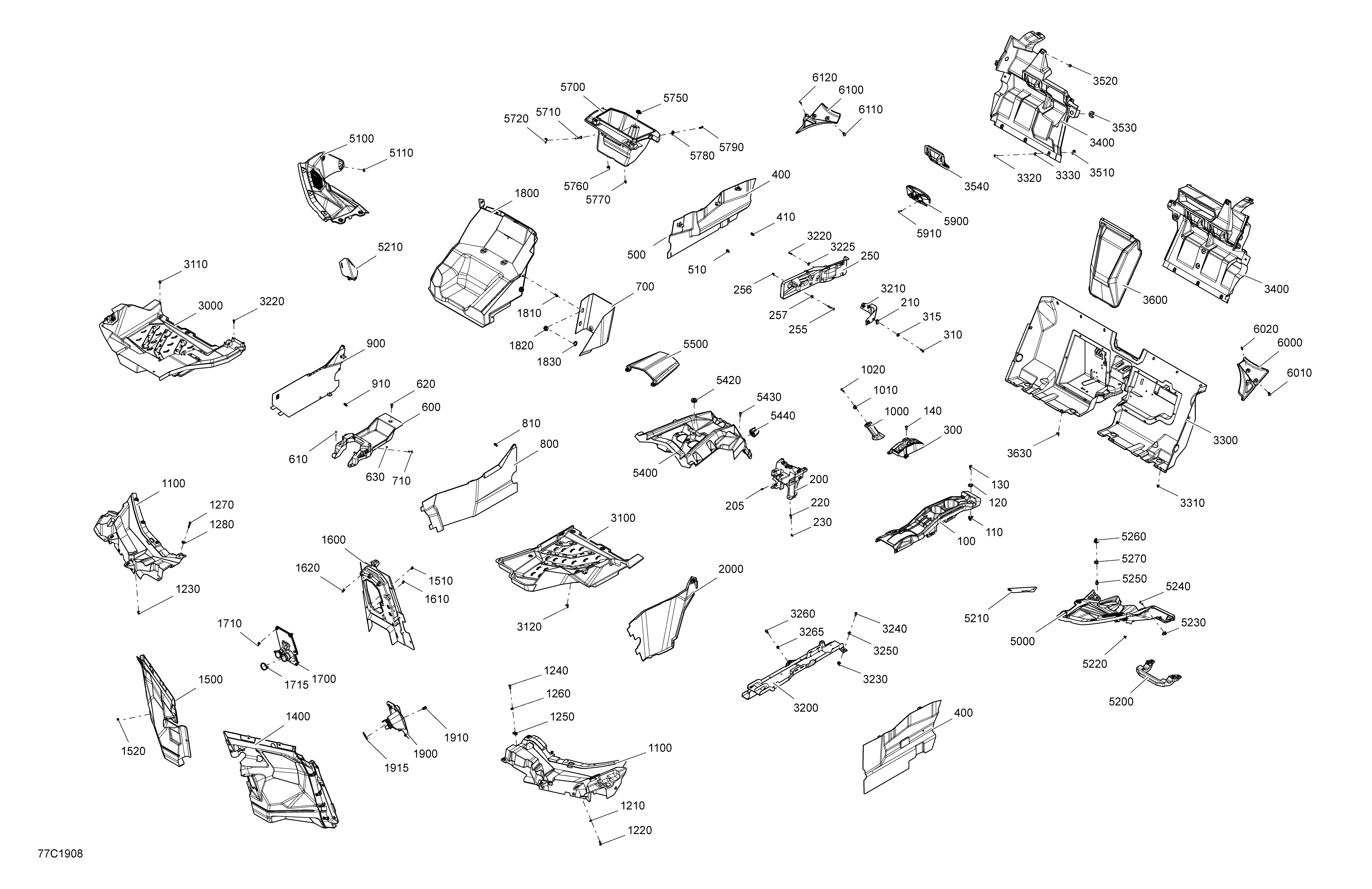

09- Cab Interior Maverick - North America для BRP 003 - Maverick Turbo R - North America - 2019
-
№АртикулНазвание
-
100715004068 Front Console Kit. Packages STD & XDSFront Console Kit. Packages STD & XDS
-
100715004068 Front Console Kit. Package XRS - Timeless Black - Black HoodFront Console Kit. Package XRS - Timeless Black - Black Hood
-
100715004068 Front Console Kit. Package XRS - Platinum SilverFront Console Kit. Package XRS - Platinum Silver
-
100715005023 Front Console Kit. Packages XMR & XRCFront Console Kit. Packages XMR & XRC
-
100715005023 Front Console Kit. Package XRS - Timeless Black - Hyper Silver HoodFront Console Kit. Package XRS - Timeless Black - Hyper Silver Hood
-
110707900133 InsertInsert
-
120503189273 WasherWasher
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
200707900459 Front Central Consol SupportFront Central Consol Support
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
250707900488 Shifter Gate SupportShifter Gate Support
-
255250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
256233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300707900644 Lever IndicatorLever Indicator
-
310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
315234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900396 LH Lateral Dash PanelLH Lateral Dash Panel
-
410705010721 ClipClip
-
500707900397 RH Lateral Dash PanelRH Lateral Dash Panel
-
510705010721 ClipClip
-
600707900460 Front Top ConsoleFront Top Console
-
610250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
700707900473 Cover Central ConsoleCover Central Console
-
710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800707900398 LH Lateral Console PanelLH Lateral Console Panel
-
810705010721 ClipClip
-
900707900399 RH Lateral Console PanelRH Lateral Console Panel
-
910705010721 ClipClip
-
1000707900011 Passenger HandlePassenger Handle
-
1010707900048 Connector TubeConnector Tube
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1100707900337 LH Front Upper DeflectorLH Front Upper Deflector
-
1200707900338 RH Front Upper DeflectorRH Front Upper Deflector
-
1210234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1230293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1250250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1260234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1270250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1280250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1400707900341 LH Front BulkheadLH Front Bulkhead
-
1500707900342 RH Front BulkheadRH Front Bulkhead
-
1510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1600707900407 Front Bulkhead PanelFront Bulkhead Panel
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1620293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1700707900701 GrommetGrommet
-
1710293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1715414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1800707900410 RH Lower Dash PanelRH Lower Dash Panel
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1820707900133 InsertInsert
-
1830503189273 WasherWasher
-
1900707900427 Cover Steering ColumnCover Steering Column
-
1910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1915293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2000707900477 Side Panel CoverSide Panel Cover
-
2005250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3000707900339 LH Front FloorLH Front Floor
-
3100707900340 RH Front FloorRH Front Floor
-
3110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3120293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900710 Support Hose CentralSupport Hose Central
-
3210707900478 Cable SupportCable Support
-
3220250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3225250200025 Washer M5Washer M5
-
3230250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3250234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3260250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3261234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3300707900697 Baffle Lower RBaffle Lower R
-
3310293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3330234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3370707900703 Cover Fuse BoxCover Fuse Box
-
3380293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3400707900632 LH Upper Rear BulkheadLH Upper Rear Bulkhead
-
3410707900652 Bulkhead CoverBulkhead Cover
-
3500707900441 RH Upper Rear BulkheadRH Upper Rear Bulkhead
-
3510250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3520293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3530705010718 GrommetGrommet
-
3540707900486 Bulkhead CoverBulkhead Cover
-
3600707900442 Central Upper Rear Bulkhead. Except Package XMRCentral Upper Rear Bulkhead. Except Package XMR
-
3600707900649 Middle Upper Rear Bulkhead. Package XMRMiddle Upper Rear Bulkhead. Package XMR
-
3620707900651 Hose SupportHose Support
-
3630293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3660707900699 Support Hose RearSupport Hose Rear
-
3670707900729 Support Hose RearSupport Hose Rear
-
5000715005325 LH Dashboard KitLH Dashboard Kit
-
5100707900698 Dashboard RHDashboard RH
-
5110234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5200707900479 Dash SupportDash Support
-
5210707900465 LH Speaker CoverLH Speaker Cover
-
5215707900590 RH Speaker CoverRH Speaker Cover
-
5220517302785 ClipClip
-
5230250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5241250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
5250293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5260707900133 InsertInsert
-
5270503189273 WasherWasher
-
5400707900700 Dashboard CentralDashboard Central
-
5420517303756 GrommetGrommet
-
5430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5440707900598 Key ProtectorKey Protector
-
5500707900400 Dash CoverDash Cover
-
5600715004067 Cover Glove Box Kit. Not ShownCover Glove Box Kit. Not Shown
-
5700707900350 Glove BoxGlove Box
-
5710250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5720250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5750517303756 GrommetGrommet
-
5760293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5770293830005 Rubber BumperRubber Bumper
-
5780250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5790250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5900707900502 Central MirrorCentral Mirror
-
5910250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
6000707900507 Warning Label PlateWarning Label Plate
-
6010293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6020250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6100707900574 Warning Label PlateWarning Label Plate
-
6110293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6200707900615 LH Shoulder PadLH Shoulder Pad
-
6250707900616 RH Shoulder PadRH Shoulder Pad
-
6260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
6270250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6280234062670 Flat Washer, StainlessFlat Washer, Stainless
