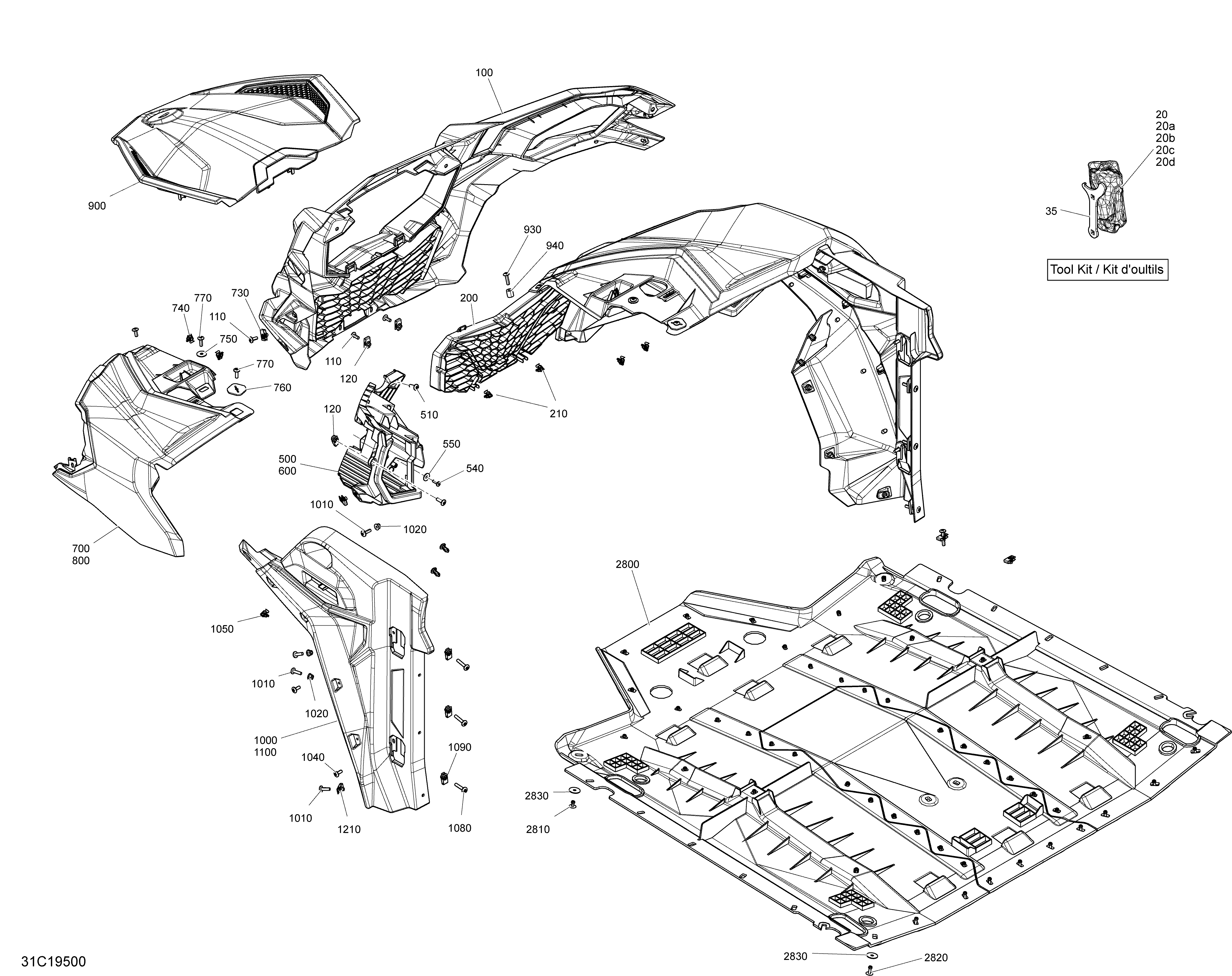

09- Body - Front Parts - Red для BRP 006 - Maverick Sport MAX 1000R - DPS - North America - 2019
-
№АртикулНазвание
-
20704700169 Tool Kit. Includes 20 TO 20dTool Kit. Includes 20 TO 20d
-
20a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
20b529000021 Screw DriverScrew Driver
-
20c529000088 Driven Open ToolDriven Open Tool
-
20d708200340 Torx Key T30Torx Key T30
-
35529000057 Adjustment WrenchAdjustment Wrench
-
100705011317 Front FasciaFront Fascia
-
110250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
200705011318 Fascia Removable GridFascia Removable Grid
-
210517306478 ClipClip
-
500705011319 LH Headlamp StructureLH Headlamp Structure
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
540250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705011320 RH Headlamp StructureRH Headlamp Structure
-
700705012411 Red, LH Hood Ass'yRed, LH Hood Ass'y
-
730250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
740517306478 ClipClip
-
750250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
760705003841 Support PlateSupport Plate
-
770250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800705012412 Red, RH Hood Ass'yRed, RH Hood Ass'y
-
900705011322 Removable HoodRemovable Hood
-
930250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
940705502616 BushingBushing
-
1000705011323 LH Front MudguardLH Front Mudguard
-
1010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1040250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1050517306478 ClipClip
-
1080250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1090250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1100705011324 RH Front MudguardRH Front Mudguard
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2800705011427 Front Skid PlateFront Skid Plate
-
2810293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2820293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2830224060251 WasherWasher
