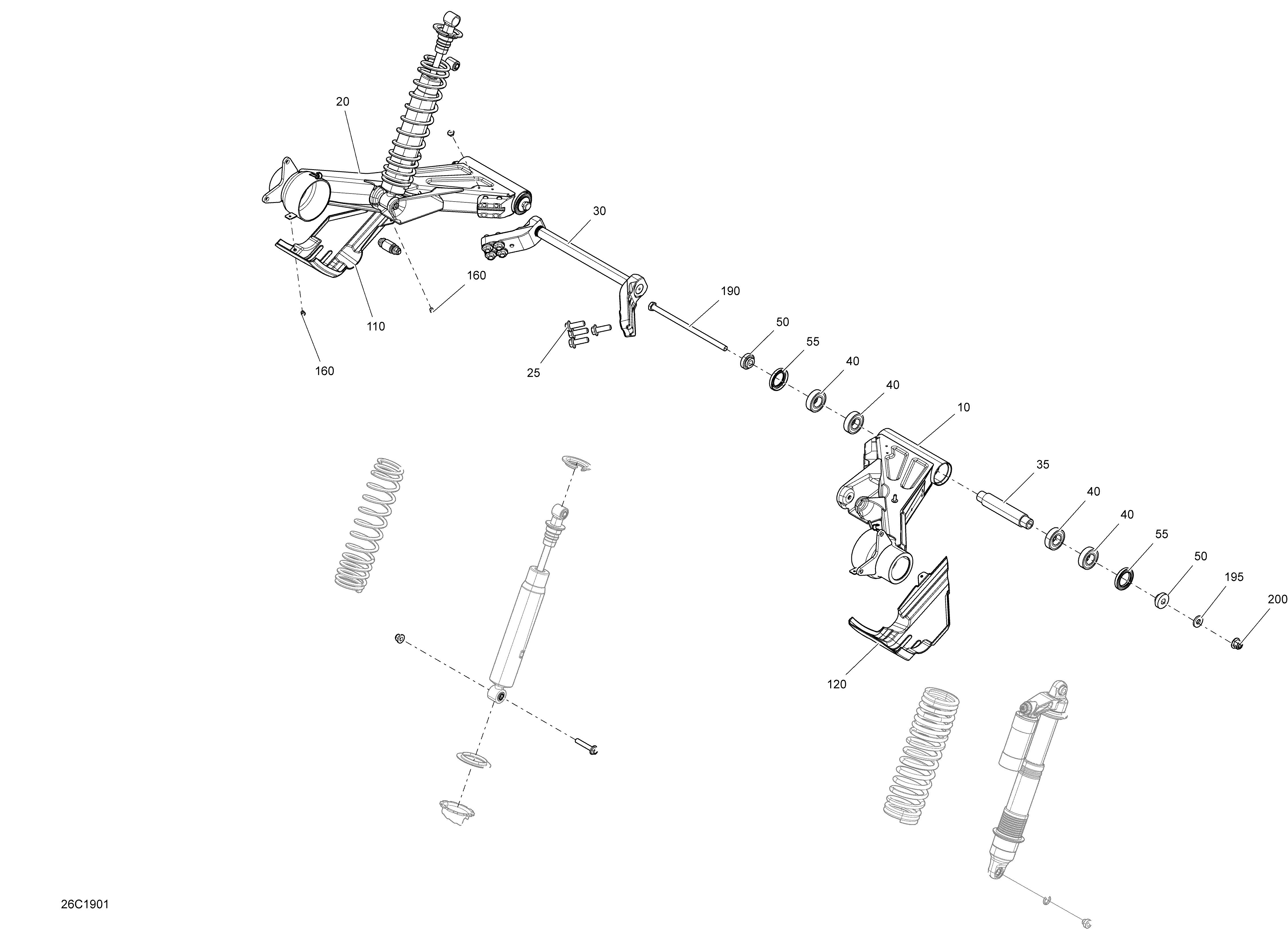

08- Rear Suspension для BRP 002 - Commander 1000R EFI - International - 2019
-
№АртикулНазвание
-
10703500965 RH Swing ArmRH Swing Arm
-
20703500964 LH Swing ArmLH Swing Arm
-
25207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
30706001500 Sway Bar Ass'ySway Bar Ass'y
-
35706001529 BushingBushing
-
40293350115 Ball BearingBall Bearing
-
50706001350 SpacerSpacer
-
55293200094 SealSeal
-
110706000630 LH Joint ProtectorLH Joint Protector
-
120706000814 RH Joint ProtectorRH Joint Protector
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
190250001031 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
195250200120 Flat Washer M12Flat Washer M12
-
200233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
301207606046 Hex. Flanged Screw M10 X 60. Not ShownHex. Flanged Screw M10 X 60. Not Shown
-
302233201436 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
303390406500 Pop Rivet 3/16''. Not ShownPop Rivet 3/16''. Not Shown
