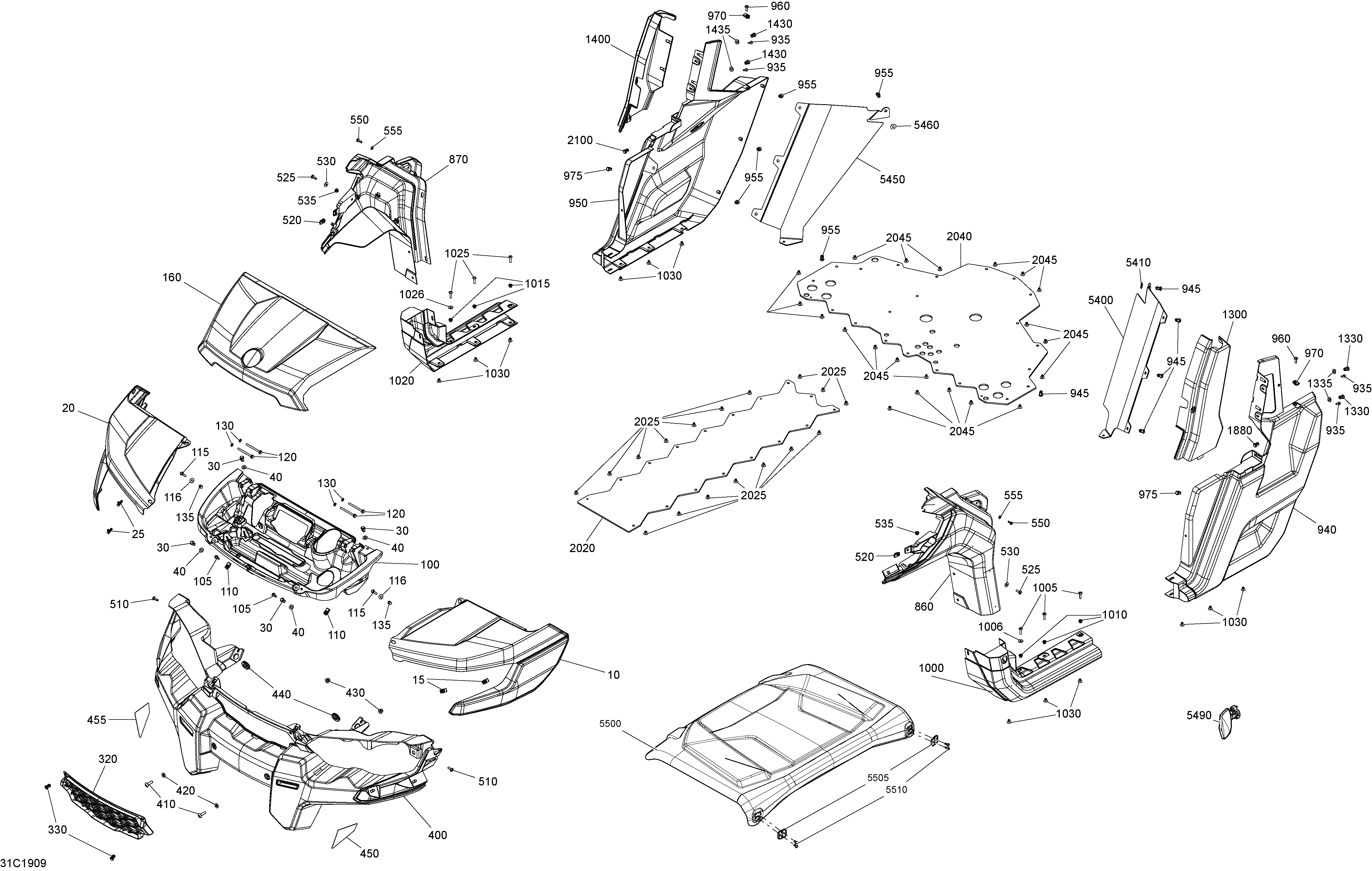

09- Body - Yellow для BRP 001 - Defender HD5 - International - 2019
-
№АртикулНазвание
-
10705010513 Yellow LH Front FenderYellow LH Front Fender
-
15250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
20705010514 Yellow RH Front FenderYellow RH Front Fender
-
25250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
30293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
110250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705010523 2000 Yellow, Front Service Cover2000 Yellow, Front Service Cover
-
320705009364 Grid Front FasciaGrid Front Fascia
-
330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
400705011392 Front FaciaFront Facia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
420503192494 WasherWasher
-
430233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705012704 Rear LH Side PanelRear LH Side Panel
-
941414916600 Black Nylon Cap. Except Package Hunting Edition & XTPBlack Nylon Cap. Except Package Hunting Edition & XTP
-
945293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
950705012705 RH Rear Side PanelRH Rear Side Panel
-
955293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
975293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1006234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1035293150108 Pop Rivet 3/16”. Except Package Hunting Edition & XTPPop Rivet 3/16”. Except Package Hunting Edition & XTP
-
1300715003564 LH Rear Cage Cover KitLH Rear Cage Cover Kit
-
1330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1335503192494 WasherWasher
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
1430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1435503192494 WasherWasher
-
1880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2025293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2045293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050705010422 Lateral Skid Plate. Except Package BASE, DPS, Pro InternationalLateral Skid Plate. Except Package BASE, DPS, Pro International
-
2055293150104 Pop Rivet 3/16''. Except Package BASE, DPS, Pro InternationalPop Rivet 3/16''. Except Package BASE, DPS, Pro International
-
2100293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3000715003638 Panoramic Center Mirror Kit. Package XTPPanoramic Center Mirror Kit. Package XTP
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5460292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5490715002459 Side Mirror. Package Hunting Edition. Includes 5490 to 5490aSide Mirror. Package Hunting Edition. Includes 5490 to 5490a
-
5490a705010469 Plate. Package Hunting EditionPlate. Package Hunting Edition
-
5500715002430 Roof Kit. Except Packages BASE, DPS & XTPRoof Kit. Except Packages BASE, DPS & XTP
-
5505705800058 Roof Cap. Packages Hunting Edition, XT & Pro InternationalRoof Cap. Packages Hunting Edition, XT & Pro International
-
5510250000874 Torx Truss M8 X 25. Packages Hunting Edition, XT & Pro InternationalTorx Truss M8 X 25. Packages Hunting Edition, XT & Pro International
-
6010232081414 Hex. Nut M8. Not ShownHex. Nut M8. Not Shown
-
6015234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
-
6020250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
6025250000760 Torx Screw Truss Head K50X20 T20. Not ShownTorx Screw Truss Head K50X20 T20. Not Shown
-
6030250200162 Flat Washer M6.6 X 22. Not ShownFlat Washer M6.6 X 22. Not Shown
-
6035250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
6040705800131 Roof Anchor. Not ShownRoof Anchor. Not Shown
-
6055705800058 Roof Cap. Not ShownRoof Cap. Not Shown
-
6060250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6065250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6070250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6075234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
-
6080250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6085234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
