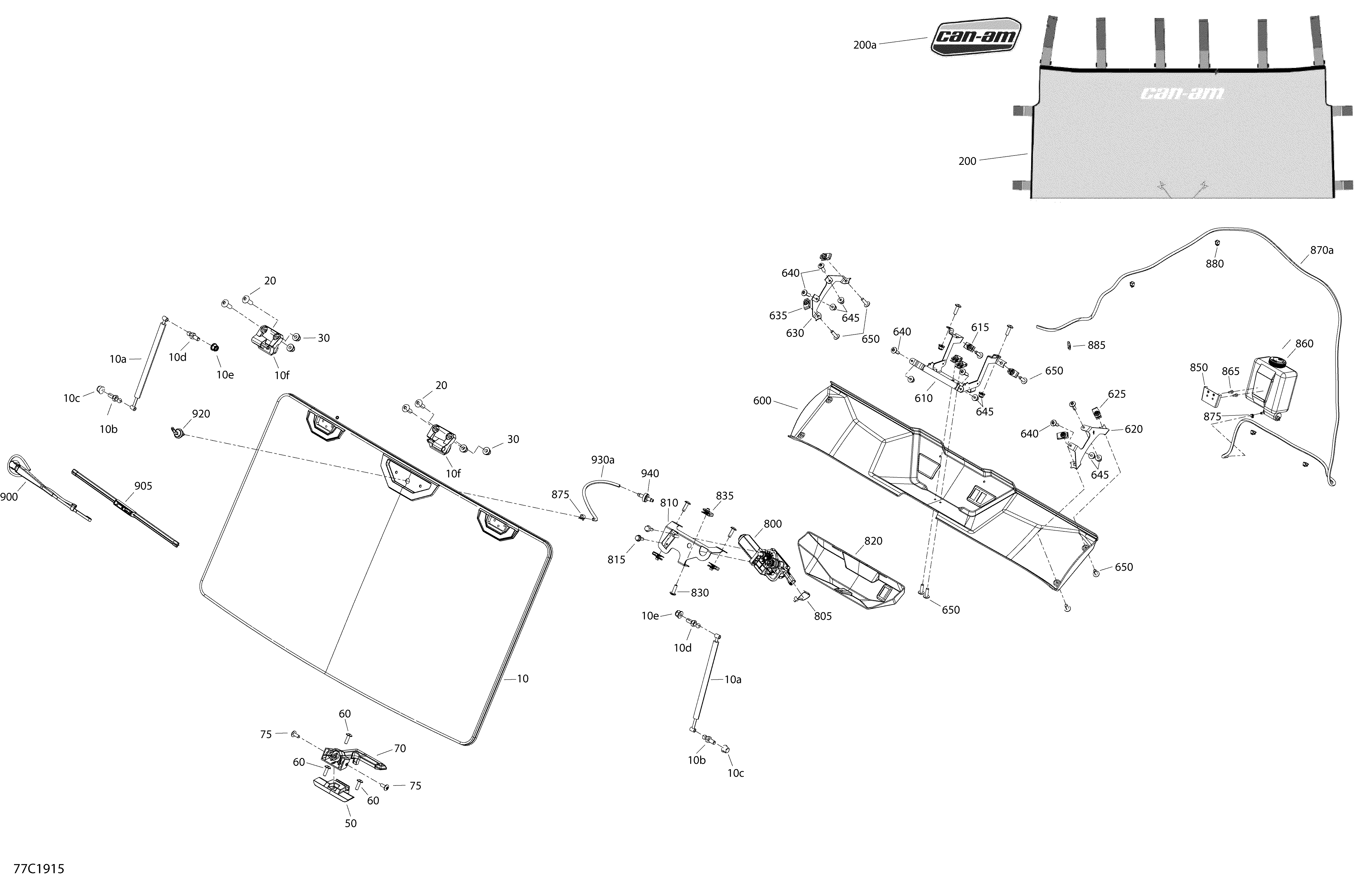

09- Enclosure Cab - HD8 - Pro International для BRP 002 - Defender HD8 - International - 2019
-
№АртикулНазвание
-
10715002942 Windshield Ass'y. Includes 10 to 10fWindshield Ass'y. Includes 10 to 10f
-
10a705800030 ShockShock
-
10b250300039 Ball Head StudBall Head Stud
-
10c233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10d250300039 Ball Head StudBall Head Stud
-
10e233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10f705800082 Windshield HingesWindshield Hinges
-
20250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50705800008 Handle AnchorHandle Anchor
-
60250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
70705800085 Mobile Handle Ass'yMobile Handle Ass'y
-
75250000881 Torx Truss M8 X 16Torx Truss M8 X 16
-
200715003249 Clear Rear Deflector. Includes 200 to 200aClear Rear Deflector. Includes 200 to 200a
-
200a704904566 CAN-AM DecalCAN-AM Decal
-
600715005562 Radio Support KitRadio Support Kit
-
610705800060 SupportSupport
-
615250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
620705800108 LH SupportLH Support
-
625250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
630705800109 RH SupportRH Support
-
635250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
640250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
645233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
650207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
800705010657 Wiper MotorWiper Motor
-
805293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
810705800073 Cover Support Ass'yCover Support Ass'y
-
815207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
820705800072 Cover, Wiper MotorCover, Wiper Motor
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
835250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
850705800086 Windshield Washer Tank SupportWindshield Washer Tank Support
-
860705800039 Windshield Washer TankWindshield Washer Tank
-
865250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
870a293830193 Polyurethane HosePolyurethane Hose
-
875414554800 Spring ClampSpring Clamp
-
880414227300 ClipClip
-
885293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
900705010656 Wiper ArmWiper Arm
-
905705011443 Winshield WiperWinshield Wiper
-
920705800103 90° Elbow Connector90° Elbow Connector
-
930a293830193 Polyurethane HosePolyurethane Hose
-
940275500398 Check ValveCheck Valve
-
1750232081414 Hex. Nut M8. Not ShownHex. Nut M8. Not Shown
-
1760250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
1770234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
