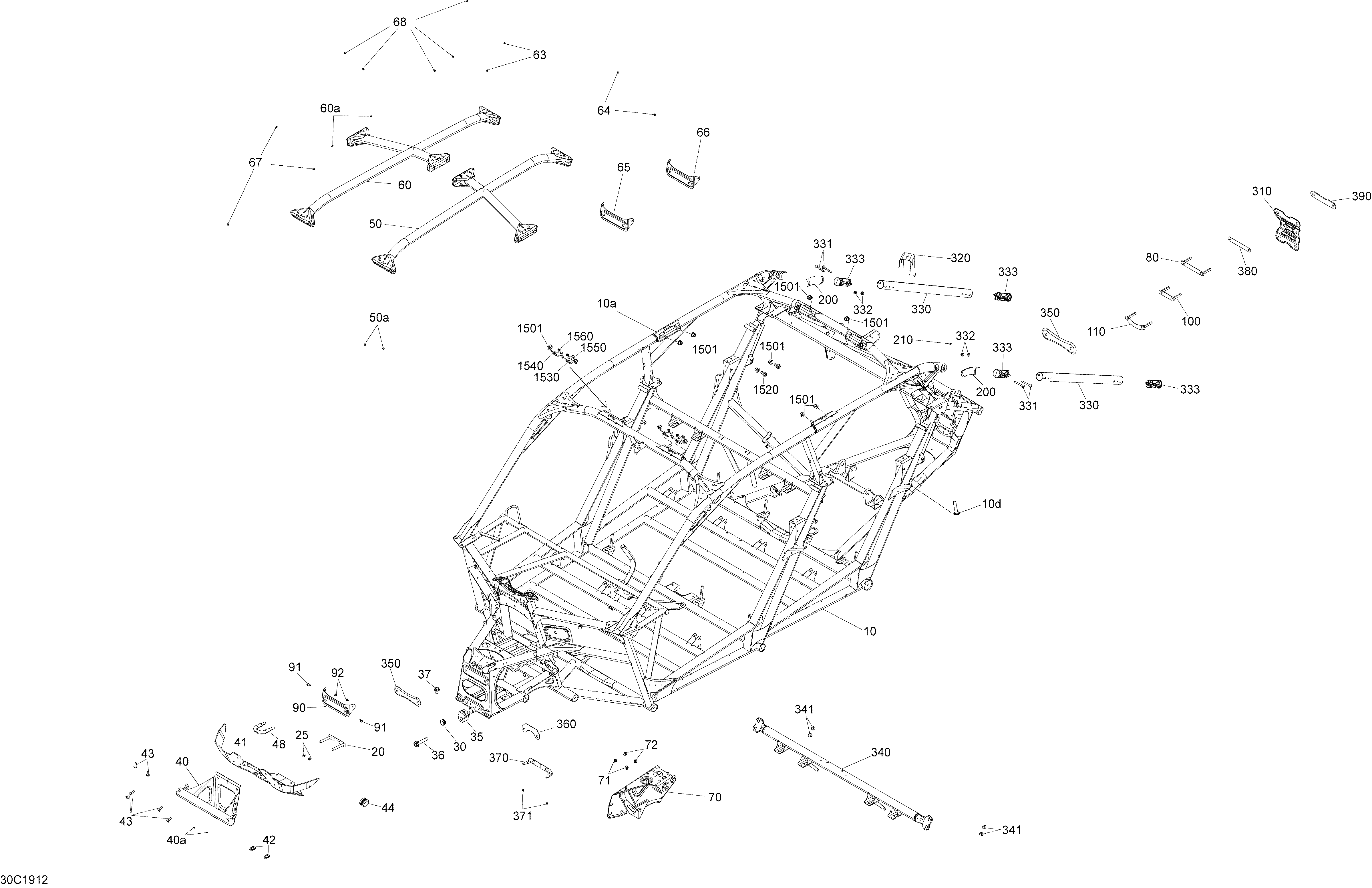

09- Frame для BRP 006 - Maverick MAX Turbo R - International - 2019
-
№АртикулНазвание
-
10>10c715005783 Black Frame Kit. Includes 10 to 10cBlack Frame Kit. Includes 10 to 10c
-
10a>10a2715004371 Black Cage Kit. Includes 10a to 10a2Black Cage Kit. Includes 10a to 10a2
-
10>10c715005781 Hyper Silver Frame Kit. Includes 10a to 10a2Hyper Silver Frame Kit. Includes 10a to 10a2
-
10a>10a2715005723 Hyper Silver Cage Kit. Includes 10a to 10a2Hyper Silver Cage Kit. Includes 10a to 10a2
-
10a1233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
10a2207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
10b233701400 Hexagonal NutHexagonal Nut
-
10c390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10d250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
20705207424 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
35705206992 Bumper Link. Package XMRBumper Link. Package XMR
-
36250000987 Screw-Hex.Flange DIN.6921 M12X1.75. Package XMRScrew-Hex.Flange DIN.6921 M12X1.75. Package XMR
-
37250000060 Flanged Screw M10 X 16, Scotch Grip. Package XMRFlanged Screw M10 X 16, Scotch Grip. Package XMR
-
40705205746 Black, Front Bumper. Black. Includes 40 to 40aBlack, Front Bumper. Black. Includes 40 to 40a
-
40705207305 Front Bumper. Hyper Silver. Includes 40 to 40aFront Bumper. Hyper Silver. Includes 40 to 40a
-
40705206869 Sunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40aSunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40a
-
40a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705206871 Front Master Plate. Package XMRFront Master Plate. Package XMR
-
42250000957 Extruded Panel Nut M6. Package XMRExtruded Panel Nut M6. Package XMR
-
43250000722 Torx Screw M6 X 20. Package XMRTorx Screw M6 X 20. Package XMR
-
44705202455 Cap. Package XMRCap. Package XMR
-
48705206983 U-Clamp. Package XMRU-Clamp. Package XMR
-
49233201436 Flanged Elastic Nut M10. Package XMRFlanged Elastic Nut M10. Package XMR
-
50705206251 LH Added Cage. Black. Includes 50 to 50aLH Added Cage. Black. Includes 50 to 50a
-
50705207366 Hyper Silver, LH Added Cage. Hyper Silver. Includes 50 to 50aHyper Silver, LH Added Cage. Hyper Silver. Includes 50 to 50a
-
50705207364 Sunburst Yellow, LH Added Cage. Package XMR. Includes 50 to 50aSunburst Yellow, LH Added Cage. Package XMR. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60705206410 RH Added Cage. Black. Includes 60 to 60aRH Added Cage. Black. Includes 60 to 60a
-
60705207367 Hyper Silver, RH Added Cage. Hyper Silver. Includes 60 to 60aHyper Silver, RH Added Cage. Hyper Silver. Includes 60 to 60a
-
60705207365 Sunburst Yellow, RH Added Cage. Package XMR. Includes 60 to 60aSunburst Yellow, RH Added Cage. Package XMR. Includes 60 to 60a
-
60a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
63233221466 Elastic Flange Nut M12. Package XMRElastic Flange Nut M12. Package XMR
-
64250000856 Screw-Hex.Flanged DIN.6921 M12X25. Package XMRScrew-Hex.Flanged DIN.6921 M12X25. Package XMR
-
65705206806 Stiffner. Package XMRStiffner. Package XMR
-
66705206807 Stiffner. Package XMRStiffner. Package XMR
-
67250000717 Torx Head Screw M6 X 16. Package XMRTorx Head Screw M6 X 16. Package XMR
-
68233261494 Hex. Elastic Flanged Nut M6. Package XMRHex. Elastic Flanged Nut M6. Package XMR
-
70705206924 DPS SupportDPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80705206852 Rear Upper PlateRear Upper Plate
-
90705206877 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206853 Front PlateFront Plate
-
110705206854 Rear PlateRear Plate
-
200705205926 Black, LH Link Plate. BlackBlack, LH Link Plate. Black
-
200705206651 Link Plate. Package XMRLink Plate. Package XMR
-
200705207308 Link Plate. Hyper SilverLink Plate. Hyper Silver
-
210293150102 Rivet 3/16''Rivet 3/16''
-
310705205750 Rear PlateRear Plate
-
320715004450 Black, Rear Attachement Hook. Package XMRBlack, Rear Attachement Hook. Package XMR
-
330705205751 Black, Rear Mount. BlackBlack, Rear Mount. Black
-
330705206649 Rear C-Member. Package XMRRear C-Member. Package XMR
-
330705207382 Rear C-Member. Hyper SilverRear C-Member. Hyper Silver
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705205268 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705207425 Upper Arm LinkUpper Arm Link
-
360705205295 Lower Arm LinkLower Arm Link
-
365705207438 Front Plate. Except Package XMRFront Plate. Except Package XMR
-
370706203122 SupportSupport
-
371390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Rear Upper PlateRear Upper Plate
-
1501233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
1520250000856 Screw-Hex.Flanged DIN.6921 M12X25Screw-Hex.Flanged DIN.6921 M12X25
-
1530705206806 StiffnerStiffner
-
1540705206807 StiffnerStiffner
-
1550250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1560233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
