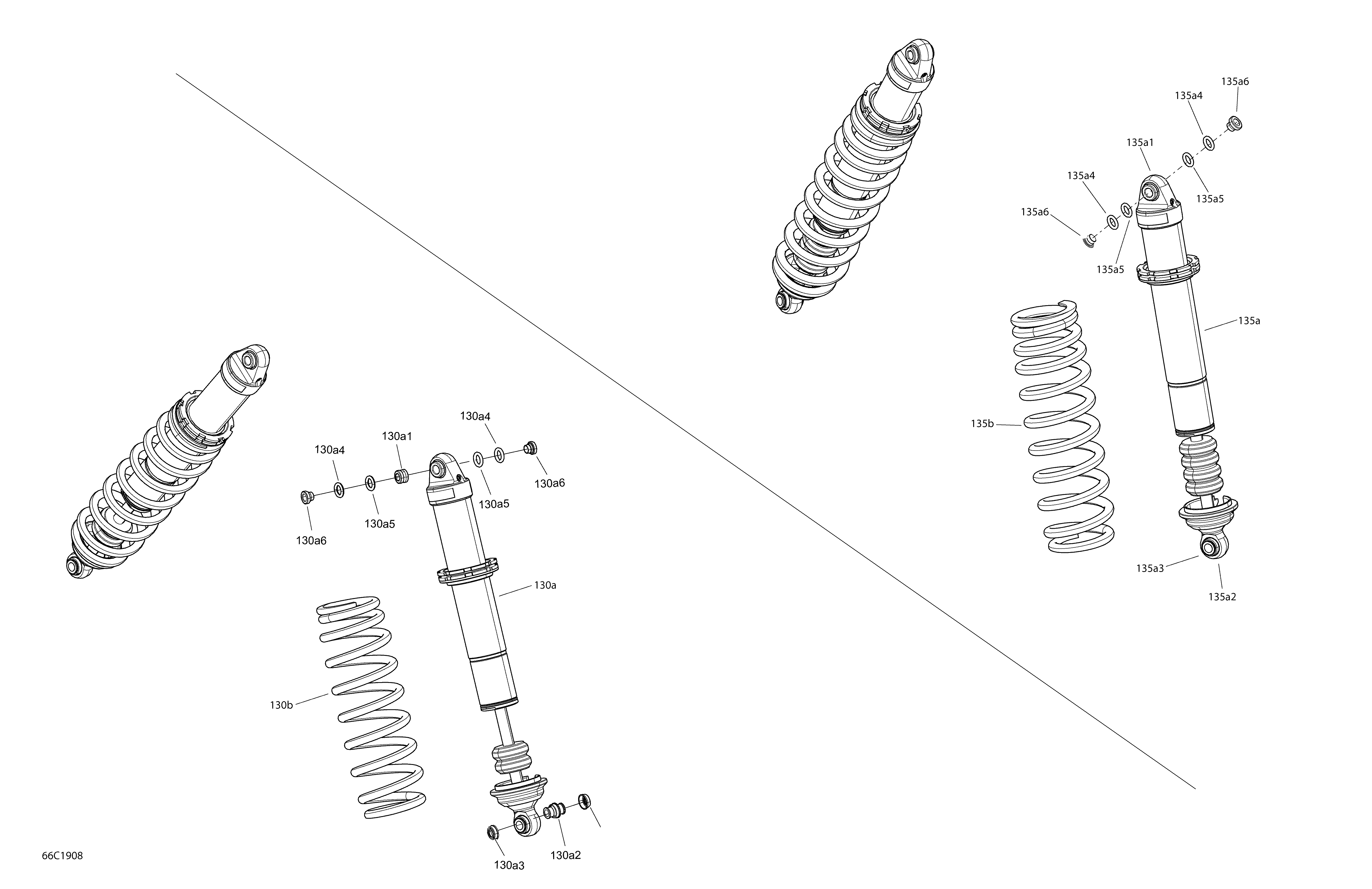

07- Shocks - Package BASE для BRP 001 - Maverick Sport 1000 - BASE - International - 2019
-
№АртикулНазвание
-
130a706203194 Front Shock. Includes 130a to 130a6Front Shock. Includes 130a to 130a6
-
130a1715900329 Spherical BearingSpherical Bearing
-
130a2715900330 Spherical BearingSpherical Bearing
-
130a3715900331 ProtectorProtector
-
130a4715900268 O-Ring BushingO-Ring Bushing
-
130a5715900252 Retaining RingRetaining Ring
-
130a6715900267 Internal BushingInternal Bushing
-
130b706203195 Deep Black Front SpringDeep Black Front Spring
-
135a706003029 Rear Shock. Includes 135a to 135a6Rear Shock. Includes 135a to 135a6
-
135a1715900329 Spherical BearingSpherical Bearing
-
135a2715900330 Spherical BearingSpherical Bearing
-
135a3715900331 ProtectorProtector
-
135a4715900268 O-Ring BushingO-Ring Bushing
-
135a5715900252 Retaining RingRetaining Ring
-
135a6715900267 Internal BushingInternal Bushing
-
135b706003030 Deep Black, Rear SpringDeep Black, Rear Spring
