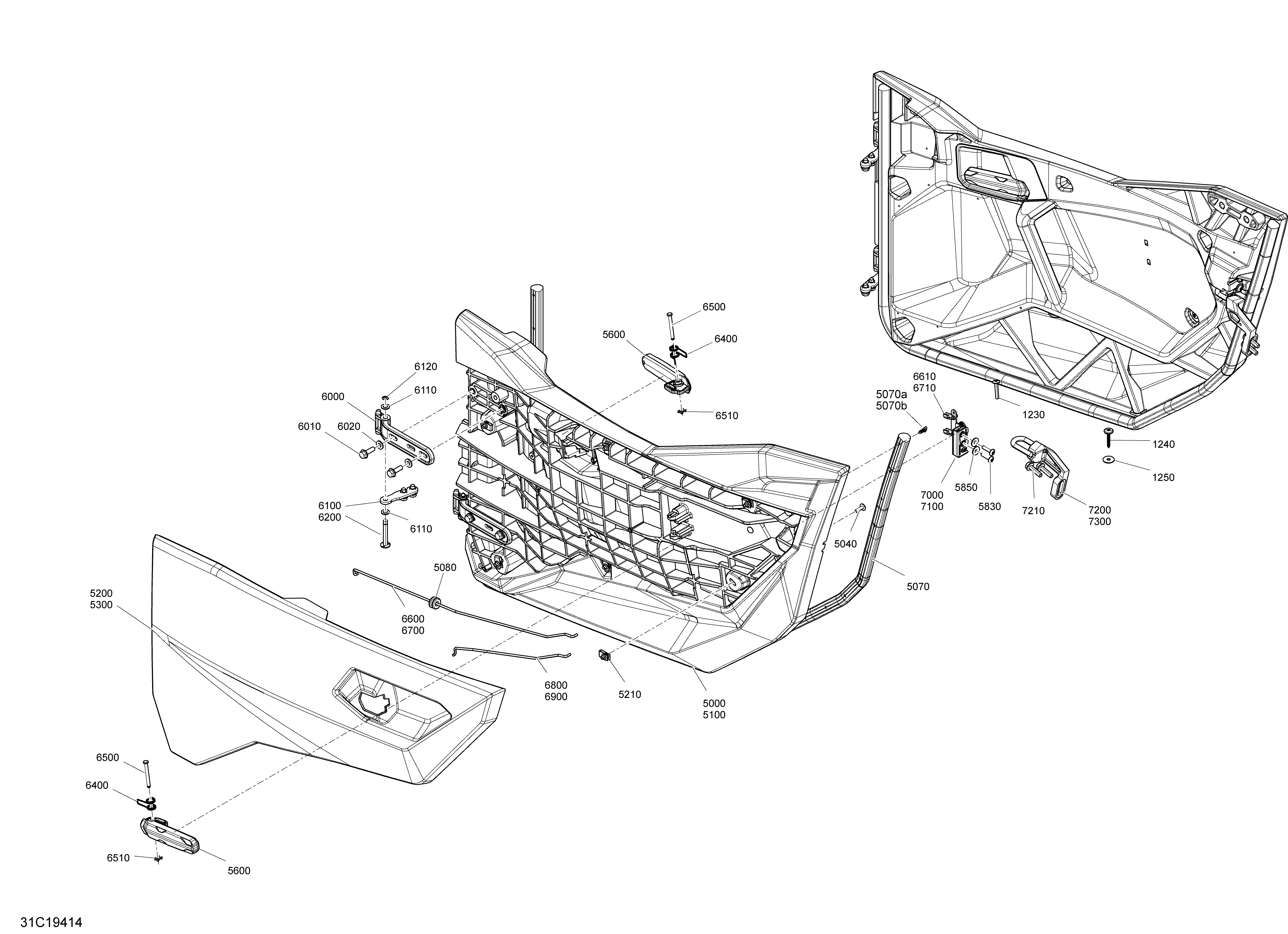

09- Body Maverick Sport - 1000R - Red - Door Parts для BRP 002 - Maverick Sport 1000R - DPS - International - European Communities - 2019
-
№АртикулНазвание
-
1230250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1240250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
1250250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
5000705012982 LH Front Door PanelLH Front Door Panel
-
5040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5070293250473 Front Door Neoprene Seal Ass'y. Includes 5070 to 5070bFront Door Neoprene Seal Ass'y. Includes 5070 to 5070b
-
5070a293730081 Natural Color, DartNatural Color, Dart
-
5070b293730082 Red, DartRed, Dart
-
5080293720104 GrommetGrommet
-
5100705012983 RH Front Door PanelRH Front Door Panel
-
5200705013440 Can-Am Red, LH Door Trim PanelCan-Am Red, LH Door Trim Panel
-
5210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5300705013441 Can-Am Red, RH Door Trim PanelCan-Am Red, RH Door Trim Panel
-
5600705012986 Opening HandleOpening Handle
-
5830250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
5850234062670 Flat Washer, StainlessFlat Washer, Stainless
-
6000705013228 HingeHinge
-
6010207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6020503192494 WasherWasher
-
6100705011629 Lower Hinge AjustementLower Hinge Ajustement
-
6110234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
6120705601030 CirclipCirclip
-
6200705012506 Upper Hinge AjustementUpper Hinge Ajustement
-
6400705013062 Handle SpringHandle Spring
-
6500705207440 Handle AxleHandle Axle
-
6510705601721 External Retaining RingExternal Retaining Ring
-
6600705207146 LH Upper Locking RodLH Upper Locking Rod
-
6610708300202 RH Tie Rod ClipRH Tie Rod Clip
-
6700705207147 RH Upper Locking RodRH Upper Locking Rod
-
6710708300182 LH Tie Rod ClipLH Tie Rod Clip
-
6800705207150 LH Lower Locking RodLH Lower Locking Rod
-
6900705207151 RH Lower Locking RodRH Lower Locking Rod
-
7000705013095 LH LatchLH Latch
-
7100705013096 RH LatchRH Latch
-
7200705207027 LH Stricker SupportLH Stricker Support
-
7210207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
7300705207028 RH Stricker SupportRH Stricker Support
