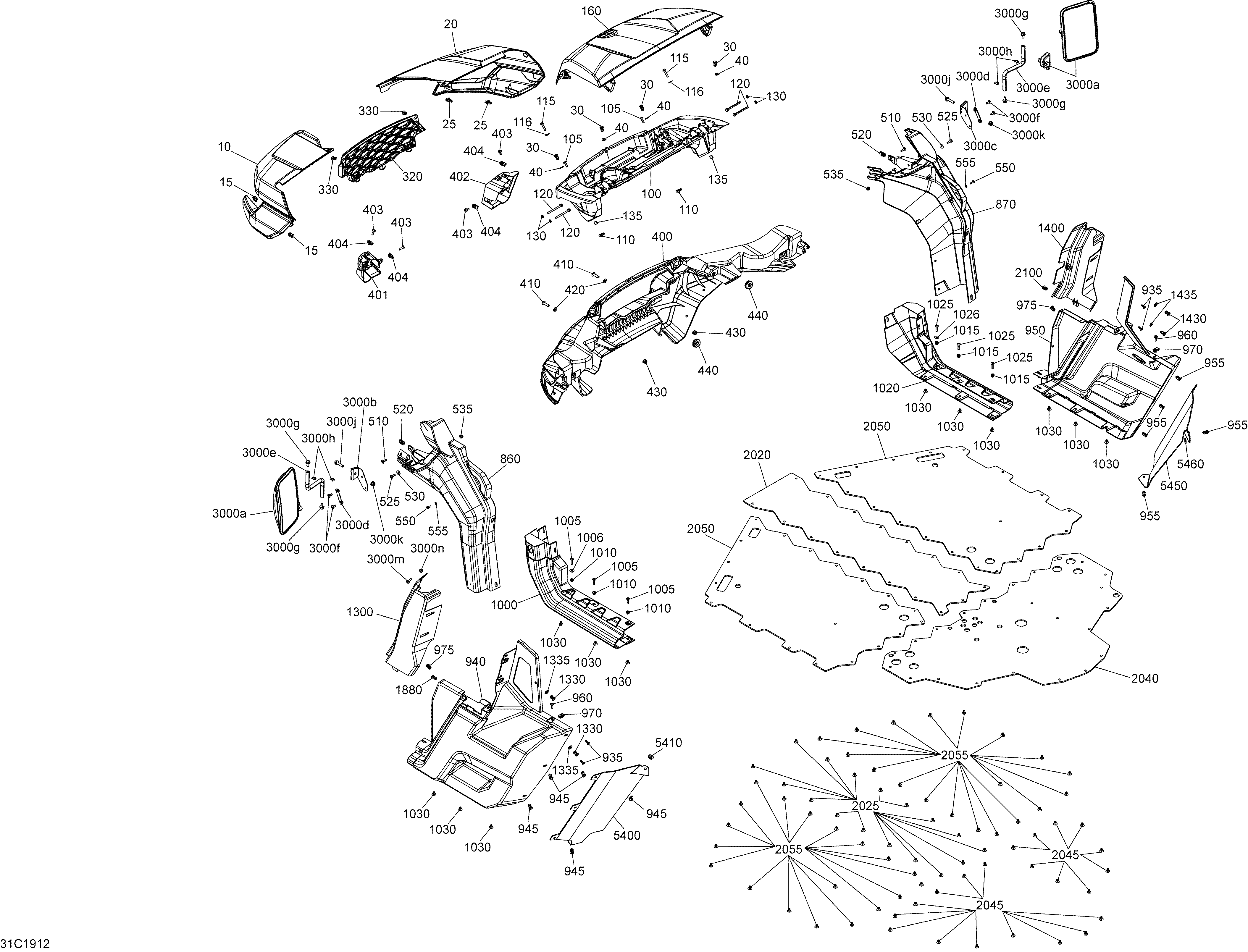

09- Body Squadron Green для BRP 002 - Traxter HD8 - T1B Series - 2019
-
№АртикулНазвание
-
10705012590 Squadron Green, Front LH FenderSquadron Green, Front LH Fender
-
15250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
20705012591 Squadron Green, Front RH FenderSquadron Green, Front RH Fender
-
25250000957 Extruded Panel Nut M6. Not ShownExtruded Panel Nut M6. Not Shown
-
30293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
110250000957 Extruded Panel Nut M6. Not ShownExtruded Panel Nut M6. Not Shown
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705012592 Squadron Green, Removable HoodSquadron Green, Removable Hood
-
320705009364 Grid Front FasciaGrid Front Fascia
-
330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
400705011576 Front FaciaFront Facia
-
401705012285 LH Flasher CapLH Flasher Cap
-
402705012286 RH Flasher CapRH Flasher Cap
-
403250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
404250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
420503192494 WasherWasher
-
430233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
440705010718 GrommetGrommet
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705012704 Rear LH Side PanelRear LH Side Panel
-
941414916600 Black Nylon CapBlack Nylon Cap
-
945293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
950705012705 RH Rear Side PanelRH Rear Side Panel
-
955293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
975293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1006234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1035293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1300715003564 LH Rear Cage Cover KitLH Rear Cage Cover Kit
-
1330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1335503192494 WasherWasher
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
1430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1435503192494 WasherWasher
-
1880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2025293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2045293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050705010422 Lateral Skid Plate. Package ProLateral Skid Plate. Package Pro
-
2055293150104 Pop Rivet 3/16''. Package ProPop Rivet 3/16''. Package Pro
-
2100293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3000a705011497 MirrorMirror
-
3000b705012151 LH Mirror SupportLH Mirror Support
-
3000c705012152 RH Mirror SupportRH Mirror Support
-
3000d705010469 PlatePlate
-
3000e705012671 Mirror RodMirror Rod
-
3000f250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
3000g207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
3000h293370131 Snap RingSnap Ring
-
3000j207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
3000k233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
3000m250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
3000n233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3000p250200178 Flat WasherFlat Washer
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5460292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
6060250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6065250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6070250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6075234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
-
6080250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6085234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
