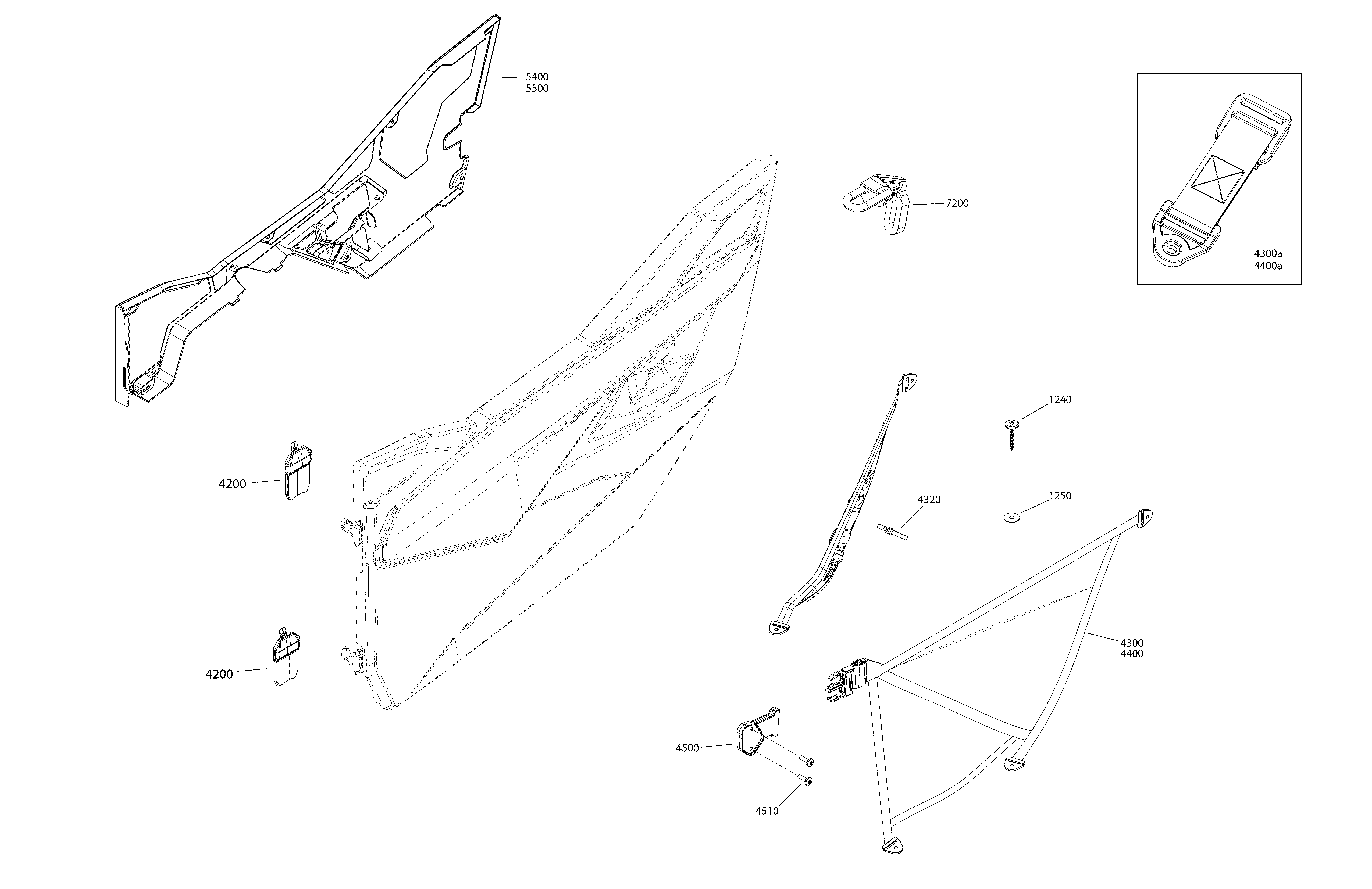

09- Body Maverick Trail - 800 - White - Door Section для BRP 001 - Maverick Trail 800 - BASE/DPS - T2B Series - 2019
-
№АртикулНазвание
-
1240250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
1250250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4200705012703 Hinge Cover. Includes 4300 to 4300aHinge Cover. Includes 4300 to 4300a
-
4300707900676 LH Front Safety NetLH Front Safety Net
-
4300a707900049 Upper LinkUpper Link
-
4320293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
4400707900605 RH Front Safety Net. Includes 4400 to 4400aRH Front Safety Net. Includes 4400 to 4400a
-
4400a707900049 Upper LinkUpper Link
-
4500707900592 Safety Net LinkSafety Net Link
-
4510250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400715005003 LH Inner Door PanelLH Inner Door Panel
-
5500715005004 RH Inner Door PanelRH Inner Door Panel
-
7200705207303 LH Stricker Pin LinkLH Stricker Pin Link
