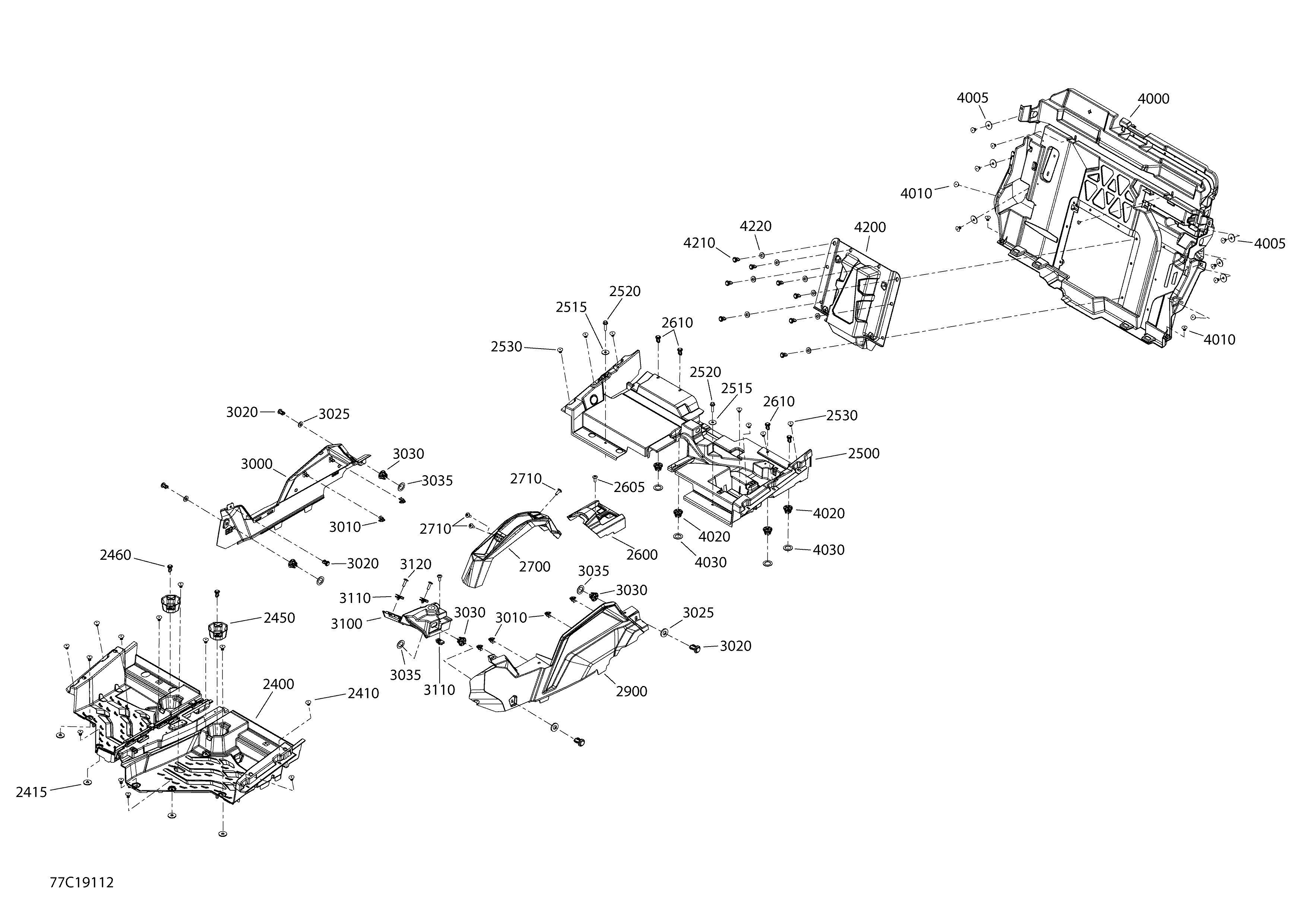

09- Cab - Rear Section для BRP 003 - Maverick Trail 1000 - DPS - T2B Series - 2019
-
№АртикулНазвание
-
2400707900533 Front FloorFront Floor
-
2410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2415250200025 Washer M5Washer M5
-
2450707900532 Cup HolderCup Holder
-
2460293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500707900534 Rear FloorRear Floor
-
2515250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
2520207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2530293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2600707900538 Belt CoverBelt Cover
-
2605250000721 Torx ScrewTorx Screw
-
2610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2700707900537 Top ConsolTop Consol
-
2710250000721 Torx ScrewTorx Screw
-
2900715005013 Lh Lateral Console PanelLh Lateral Console Panel
-
3000707900540 Rh Lateral Console PanelRh Lateral Console Panel
-
3010517306478 ClipClip
-
3020293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3025503192494 WasherWasher
-
3030707900133 InsertInsert
-
3035503189273 WasherWasher
-
3100707900545 Passenger FootrestPassenger Footrest
-
3110250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3120250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4000707900550 Rear BulkheadRear Bulkhead
-
4005250200044 Washer-flat M6 * X 25Washer-flat M6 * X 25
-
4010293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4020707900133 InsertInsert
-
4030503189273 WasherWasher
-
4200707900552 Maintenance CoverMaintenance Cover
-
4210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4220503192494 WasherWasher
-
5000250000958 Panel Nut M5 X 0.8. Not ShownPanel Nut M5 X 0.8. Not Shown
-
5010250000724 Torx Screw M5 X 20. Not ShownTorx Screw M5 X 20. Not Shown
