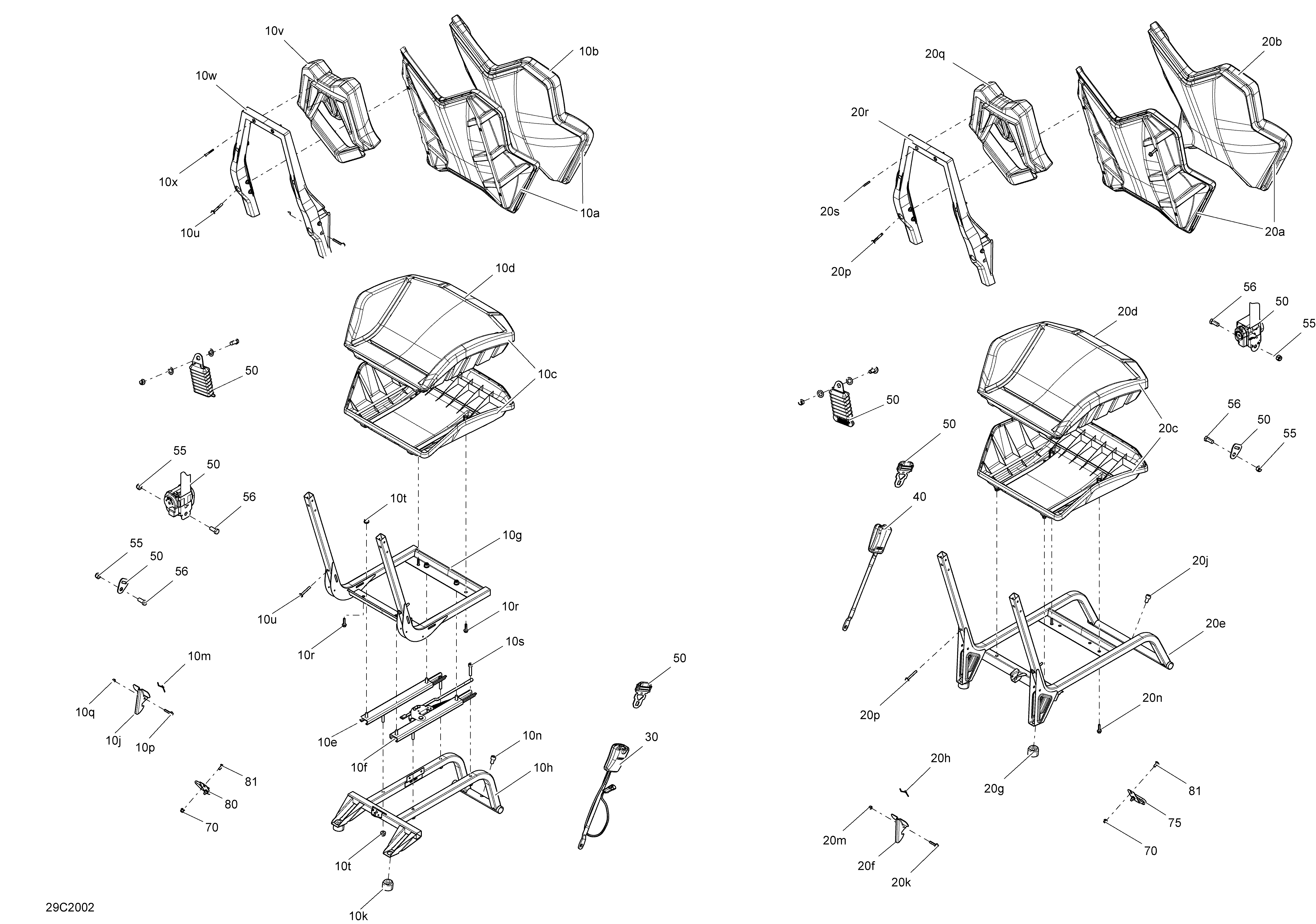

09- Seat для BRP 002 - Commander 1000R EFI - North America - 2020
-
№АртикулНазвание
-
10a703500945 Backrest Ass'y. Boreal Green. Includes 10a to 10bBackrest Ass'y. Boreal Green. Includes 10a to 10b
-
10b708000675 Backrest Cover. Boreal GreenBackrest Cover. Boreal Green
-
10c703500943 Cushion Ass'y. Boreal Green. Includes 10c to 10dCushion Ass'y. Boreal Green. Includes 10c to 10d
-
10d708001103 Seat Cover. Boreal GreenSeat Cover. Boreal Green
-
10e708000848 LH Rail. Boreal GreenLH Rail. Boreal Green
-
10f708001739 RH Rail. Boreal GreenRH Rail. Boreal Green
-
10g708001356 Operator Seat Frame. Boreal GreenOperator Seat Frame. Boreal Green
-
10h708000667 Seat Member. Boreal GreenSeat Member. Boreal Green
-
10j708001355 Seat Latch. Boreal GreenSeat Latch. Boreal Green
-
10k708001671 Rubber Bumper. Boreal GreenRubber Bumper. Boreal Green
-
10m708000921 Spring. Boreal GreenSpring. Boreal Green
-
10n205501644 Socket Screw M10 X 16. Boreal GreenSocket Screw M10 X 16. Boreal Green
-
10p207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Boreal GreenHex. Flanged Screw M6 X 30, Scotch Grip. Boreal Green
-
10q232561600 Hex. Elastic Stop Nut M6. Boreal GreenHex. Elastic Stop Nut M6. Boreal Green
-
10r207562544 Hex. Flanged Screw M6 X 25. Boreal GreenHex. Flanged Screw M6 X 25. Boreal Green
-
10s205084044 Socket Head Screw M8 X 1.25 X 40. Boreal GreenSocket Head Screw M8 X 1.25 X 40. Boreal Green
-
10t233281414 Hex. Flanged Elastic Nut M8. Boreal GreenHex. Flanged Elastic Nut M8. Boreal Green
-
10u250000672 Hex. Flange Screw M6. Boreal Green. Includes 10u to 10xHex. Flange Screw M6. Boreal Green. Includes 10u to 10x
-
10v708001074 Head Rest. Boreal GreenHead Rest. Boreal Green
-
10w708001245 Seat Support. Boreal GreenSeat Support. Boreal Green
-
10x250000897 Hex. Flange Screw K50 X 40. Boreal GreenHex. Flange Screw K50 X 40. Boreal Green
-
10a703500945 Backrest Ass'y. Package DPS. Includes 10a to 10bBackrest Ass'y. Package DPS. Includes 10a to 10b
-
10b708000675 Backrest Cover. Package DPSBackrest Cover. Package DPS
-
10c703500943 Cushion Ass'y. Package DPS. Includes 10c to 10dCushion Ass'y. Package DPS. Includes 10c to 10d
-
10d708001103 Seat Cover. Package DPSSeat Cover. Package DPS
-
10e708000848 LH Rail. Package DPSLH Rail. Package DPS
-
10f708001739 RH Rail. Package DPSRH Rail. Package DPS
-
10g708001356 Operator Seat Frame. Package DPSOperator Seat Frame. Package DPS
-
10h708000667 Seat Member. Package DPSSeat Member. Package DPS
-
10j708001355 Seat Latch. Package DPSSeat Latch. Package DPS
-
10k708001671 Rubber Bumper. Package DPSRubber Bumper. Package DPS
-
10m708000921 Spring. Package DPSSpring. Package DPS
-
10n205501644 Socket Screw M10 X 16. Package DPSSocket Screw M10 X 16. Package DPS
-
10p207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package DPSHex. Flanged Screw M6 X 30, Scotch Grip. Package DPS
-
10q232561600 Hex. Elastic Stop Nut M6. Package DPSHex. Elastic Stop Nut M6. Package DPS
-
10r207562544 Hex. Flanged Screw M6 X 25. Package DPSHex. Flanged Screw M6 X 25. Package DPS
-
10s205084044 Socket Head Screw M8 X 1.25 X 40. Package DPSSocket Head Screw M8 X 1.25 X 40. Package DPS
-
10t233281414 Hex. Flanged Elastic Nut M8. Package DPSHex. Flanged Elastic Nut M8. Package DPS
-
10u250000672 Hex. Flange Screw M6. Package DPS. Includes 10u to 10xHex. Flange Screw M6. Package DPS. Includes 10u to 10x
-
10v708001074 Head Rest. Package DPSHead Rest. Package DPS
-
10w708001245 Seat Support. Package DPSSeat Support. Package DPS
-
10x250000897 Hex. Flange Screw K50 X 40. Package DPSHex. Flange Screw K50 X 40. Package DPS
-
10a703500945 Backrest Ass'y. Camo. Includes 10a to 10bBackrest Ass'y. Camo. Includes 10a to 10b
-
10b708000675 Backrest Cover. CamoBackrest Cover. Camo
-
10c703500943 Cushion Ass'y. Camo. Includes 10c to 10dCushion Ass'y. Camo. Includes 10c to 10d
-
10d708001103 Seat Cover. CamoSeat Cover. Camo
-
10e708000848 LH Rail. CamoLH Rail. Camo
-
10f708001739 RH Rail. CamoRH Rail. Camo
-
10g708001356 Operator Seat Frame. CamoOperator Seat Frame. Camo
-
10h708000667 Seat Member. CamoSeat Member. Camo
-
10j708001355 Seat Latch. CamoSeat Latch. Camo
-
10k708001671 Rubber Bumper. CamoRubber Bumper. Camo
-
10m708000921 Spring. CamoSpring. Camo
-
10n205501644 Socket Screw M10 X 16. CamoSocket Screw M10 X 16. Camo
-
10p207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. CamoHex. Flanged Screw M6 X 30, Scotch Grip. Camo
-
10q232561600 Hex. Elastic Stop Nut M6. CamoHex. Elastic Stop Nut M6. Camo
-
10r207562544 Hex. Flanged Screw M6 X 25. CamoHex. Flanged Screw M6 X 25. Camo
-
10s205084044 Socket Head Screw M8 X 1.25 X 40. CamoSocket Head Screw M8 X 1.25 X 40. Camo
-
10t233281414 Hex. Flanged Elastic Nut M8. CamoHex. Flanged Elastic Nut M8. Camo
-
10u250000672 Hex. Flange Screw M6. Camo. Includes 10u to 10xHex. Flange Screw M6. Camo. Includes 10u to 10x
-
10v708001074 Head Rest. CamoHead Rest. Camo
-
10w708001245 Seat Support. CamoSeat Support. Camo
-
10x250000897 Hex. Flange Screw K50 X 40. CamoHex. Flange Screw K50 X 40. Camo
-
10a708002616 Backrest Ass'y. Package LTD. Includes 10a to 10bBackrest Ass'y. Package LTD. Includes 10a to 10b
-
10b708002618 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
10c708002617 Cushion Ass'y. Package LTD. Includes 10c to 10dCushion Ass'y. Package LTD. Includes 10c to 10d
-
10d708002619 Seat Cover. Package LTDSeat Cover. Package LTD
-
10e708000848 LH Rail. Package LTDLH Rail. Package LTD
-
10f708001739 RH Rail. Package LTDRH Rail. Package LTD
-
10g708001356 Operator Seat Frame. Package LTDOperator Seat Frame. Package LTD
-
10h708000667 Seat Member. Package LTDSeat Member. Package LTD
-
10j708001355 Seat Latch. Package LTDSeat Latch. Package LTD
-
10k708001671 Rubber Bumper. Package LTDRubber Bumper. Package LTD
-
10m708000921 Spring. Package LTDSpring. Package LTD
-
10n205501644 Socket Screw M10 X 16. Package LTDSocket Screw M10 X 16. Package LTD
-
10p207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package LTDHex. Flanged Screw M6 X 30, Scotch Grip. Package LTD
-
10q232561600 Hex. Elastic Stop Nut M6. Package LTDHex. Elastic Stop Nut M6. Package LTD
-
10r207562544 Hex. Flanged Screw M6 X 25. Package LTDHex. Flanged Screw M6 X 25. Package LTD
-
10s205084044 Socket Head Screw M8 X 1.25 X 40. Package LTDSocket Head Screw M8 X 1.25 X 40. Package LTD
-
10t233281414 Hex. Flanged Elastic Nut M8. Package LTDHex. Flanged Elastic Nut M8. Package LTD
-
10u250000672 Hex. Flange Screw M6. Package LTD. Includes 10u to 10xHex. Flange Screw M6. Package LTD. Includes 10u to 10x
-
10v708001074 Head Rest. Package LTDHead Rest. Package LTD
-
10w708001245 Seat Support. Package LTDSeat Support. Package LTD
-
10x250000897 Hex. Flange Screw K50 X 40. Package LTDHex. Flange Screw K50 X 40. Package LTD
-
20a703500945 Backrest Ass'y. Boreal Green. Includes 20a to 20bBackrest Ass'y. Boreal Green. Includes 20a to 20b
-
20b708000675 Backrest Cover. Boreal GreenBackrest Cover. Boreal Green
-
20c703500943 Cushion Ass'y. Boreal Green. Includes 20c to 20dCushion Ass'y. Boreal Green. Includes 20c to 20d
-
20d708001103 Seat Cover. Boreal GreenSeat Cover. Boreal Green
-
20e708001357 Passenger Seat Frame. Boreal GreenPassenger Seat Frame. Boreal Green
-
20f708001355 Seat Latch. Boreal GreenSeat Latch. Boreal Green
-
20g708001671 Rubber Bumper. Boreal GreenRubber Bumper. Boreal Green
-
20h708000921 Spring. Boreal GreenSpring. Boreal Green
-
20j205501644 Socket Screw M10 X 16. Boreal GreenSocket Screw M10 X 16. Boreal Green
-
20k207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Boreal GreenHex. Flanged Screw M6 X 30, Scotch Grip. Boreal Green
-
20m232561600 Hex. Elastic Stop Nut M6. Boreal GreenHex. Elastic Stop Nut M6. Boreal Green
-
20n207562544 Hex. Flanged Screw M6 X 25. Boreal GreenHex. Flanged Screw M6 X 25. Boreal Green
-
20p250000672 Hex. Flange Screw M6. Boreal Green. Includes 20p to 20sHex. Flange Screw M6. Boreal Green. Includes 20p to 20s
-
20q708001074 Head Rest. Boreal GreenHead Rest. Boreal Green
-
20r708001245 Seat Support. Boreal GreenSeat Support. Boreal Green
-
20s250000897 Hex. Flange Screw K50 X 40. Boreal GreenHex. Flange Screw K50 X 40. Boreal Green
-
20a703500945 Backrest Ass'y. Camo. Includes 20a to 20bBackrest Ass'y. Camo. Includes 20a to 20b
-
20b708000675 Backrest Cover. CamoBackrest Cover. Camo
-
20c703500943 Cushion Ass'y. Camo. Includes 20c to 20dCushion Ass'y. Camo. Includes 20c to 20d
-
20d708001103 Seat Cover. CamoSeat Cover. Camo
-
20e708001357 Passenger Seat Frame. CamoPassenger Seat Frame. Camo
-
20f708001355 Seat Latch. CamoSeat Latch. Camo
-
20g708001671 Rubber Bumper. CamoRubber Bumper. Camo
-
20h708000921 Spring. CamoSpring. Camo
-
20j205501644 Socket Screw M10 X 16. CamoSocket Screw M10 X 16. Camo
-
20k207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. CamoHex. Flanged Screw M6 X 30, Scotch Grip. Camo
-
20m232561600 Hex. Elastic Stop Nut M6. CamoHex. Elastic Stop Nut M6. Camo
-
20n207562544 Hex. Flanged Screw M6 X 25. CamoHex. Flanged Screw M6 X 25. Camo
-
20p250000672 Hex. Flange Screw M6. Camo. Includes 20p to 20sHex. Flange Screw M6. Camo. Includes 20p to 20s
-
20q708001074 Head Rest. CamoHead Rest. Camo
-
20r708001245 Seat Support. CamoSeat Support. Camo
-
20s250000897 Hex. Flange Screw K50 X 40. CamoHex. Flange Screw K50 X 40. Camo
-
20a703500945 Backrest Ass'y. Package DPS. Includes 20a to 20bBackrest Ass'y. Package DPS. Includes 20a to 20b
-
20b708000675 Backrest Cover. Package DPSBackrest Cover. Package DPS
-
20c703500943 Cushion Ass'y. Package DPS. Includes 20c to 20dCushion Ass'y. Package DPS. Includes 20c to 20d
-
20d708001103 Seat Cover. Package DPSSeat Cover. Package DPS
-
20e708001357 Passenger Seat Frame. Package DPSPassenger Seat Frame. Package DPS
-
20f708001355 Seat Latch. Package DPSSeat Latch. Package DPS
-
20g708001671 Rubber Bumper. Package DPSRubber Bumper. Package DPS
-
20h708000921 Spring. Package DPSSpring. Package DPS
-
20j205501644 Socket Screw M10 X 16. Package DPSSocket Screw M10 X 16. Package DPS
-
20k207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package DPSHex. Flanged Screw M6 X 30, Scotch Grip. Package DPS
-
20m232561600 Hex. Elastic Stop Nut M6. Package DPSHex. Elastic Stop Nut M6. Package DPS
-
20n207562544 Hex. Flanged Screw M6 X 25. Package DPSHex. Flanged Screw M6 X 25. Package DPS
-
20p250000672 Hex. Flange Screw M6. Package DPS. Includes 20p to 20sHex. Flange Screw M6. Package DPS. Includes 20p to 20s
-
20q708001074 Head Rest. Package DPSHead Rest. Package DPS
-
20r708001245 Seat Support. Package DPSSeat Support. Package DPS
-
20s250000897 Hex. Flange Screw K50 X 40. Package DPSHex. Flange Screw K50 X 40. Package DPS
-
20a708002616 Backrest Ass'y. Package LTD. Includes 20a to 20bBackrest Ass'y. Package LTD. Includes 20a to 20b
-
20b708002618 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
20c708002617 Cushion Ass'y. Package LTD. Includes 20c to 20dCushion Ass'y. Package LTD. Includes 20c to 20d
-
20d708002619 Seat Cover. Package LTDSeat Cover. Package LTD
-
20e708001357 Passenger Seat Frame. Package LTDPassenger Seat Frame. Package LTD
-
20f708001355 Seat Latch. Package LTDSeat Latch. Package LTD
-
20g708001671 Rubber Bumper. Package LTDRubber Bumper. Package LTD
-
20h708000921 Spring. Package LTDSpring. Package LTD
-
20j205501644 Socket Screw M10 X 16. Package LTDSocket Screw M10 X 16. Package LTD
-
20k207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package LTDHex. Flanged Screw M6 X 30, Scotch Grip. Package LTD
-
20m232561600 Hex. Elastic Stop Nut M6. Package LTDHex. Elastic Stop Nut M6. Package LTD
-
20n207562544 Hex. Flanged Screw M6 X 25. Package LTDHex. Flanged Screw M6 X 25. Package LTD
-
20p250000672 Hex. Flange Screw M6. Package LTD. Includes 20p to 20sHex. Flange Screw M6. Package LTD. Includes 20p to 20s
-
20q708001074 Head Rest. Package LTDHead Rest. Package LTD
-
20r708001245 Seat Support. Package LTDSeat Support. Package LTD
-
20s250000897 Hex. Flange Screw K50 X 40. Package LTDHex. Flange Screw K50 X 40. Package LTD
-
30708002061 Driver Buckle SideDriver Buckle Side
-
40708002062 Passenger Buckle SidePassenger Buckle Side
-
50708002644 Safety BeltSafety Belt
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
56250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
70250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
75708002303 Retaining Rod RHRetaining Rod RH
-
80708002302 Retaining Rod LHRetaining Rod LH
-
81250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
180s250100135 Nylon Insert Hex. Lock Nut 7/16-20. Not ShownNylon Insert Hex. Lock Nut 7/16-20. Not Shown
-
180t250000521 Hex. Cap Screw 7/16'' X 1''. Not ShownHex. Cap Screw 7/16'' X 1''. Not Shown
-
180u708000890 Safety Belt Screw. Not ShownSafety Belt Screw. Not Shown
-
180v708000891 Position Washer. Not ShownPosition Washer. Not Shown
-
180w233161464 Hex. Elastic Flange Nut M6. Not ShownHex. Elastic Flange Nut M6. Not Shown
-
180x250000672 Hex. Flange Screw M6. Not ShownHex. Flange Screw M6. Not Shown
Все узлы модели:
- 00- Model Numbers
- 01- Cooling - System
- 01- Crankcase - 1000R
- 01- Crankshaft, Piston and Cylinder - 1000R
- 01- Cylinder Head, Front - 1000R
- 01- Cylinder Head, Rear - 1000R
- 01- Engine
- 01- Engine Cooling - 1000R
- 01- Engine Lubrication - 1000R
- 01- Exhaust
- 02- Air Intake
- 02- Air Intake Manifold and Throttle Body - 1000R
- 02- Fuel
- 03- Magneto and Electric Starter - 1000R
- 05- Gear Box 1 - 420686653
- 05- Gear Box 2 - 420686653
- 05- Gear Box And Components 420686653
- 05- Transmission - 1000R
- 06- Brakes
- 07- Front Drive - Common Parts
- 07- Front Drive - Differential Parts
- 07- Front Shocks - DPS
- 07- Front Shocks - LTD
- 07- Front Shocks - XT - Boreal Green
- 07- Front Shocks - XT - Camo
- 07- Front Shocks - XT - Carbon Black
- 07- Front Suspension
- 07- Steering - DPS
- 07- Steering - XT & LTD
- 07- Wheels - DPS - LTD - XT
- 08- Drive Shaft - 1000R
- 08- Rear Drive - Common Parts
- 08- Rear Drive - Differential Parts
- 08- Rear Shock - DPS
- 08- Rear Shock - LTD
- 08- Rear Shock - XT
- 08- Rear Suspension
- 09- Body - Front Section - Asphalt Grey
- 09- Body - Front Section - Boreal Green
- 09- Body - Front Section - Camo
- 09- Body - Mid Section - Asphalt Grey
- 09- Body - Mid Section - Boreal Green
- 09- Body - Mid section - Camo
- 09- Cab Interior - Lower part
- 09- Cab Interior - Upper part
- 09- Decals - DPS
- 09- Decals - LTD
- 09- Decals - XT
- 09- Frame
- 09- Rear Cargo Box - Box
- 09- Rear Cargo Box - Door
- • 09- Seat
- 09- Storage Tray
- 10- Electric - Rear Harness - 710004681
- 10- Electrical System
- 10- Engine Harness and Electronic Module - V1
- 10- Main Harness - 710006089
