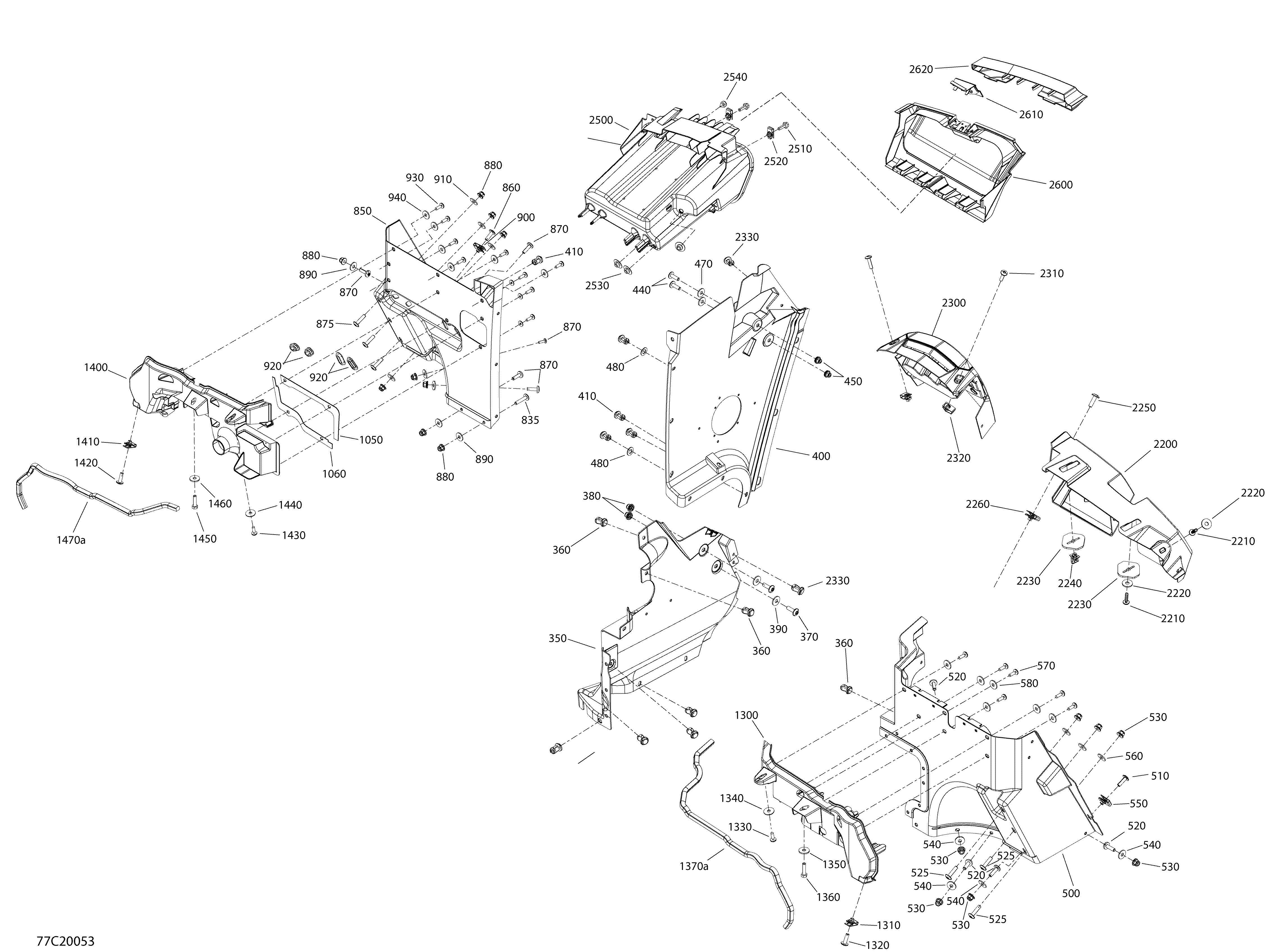

09- Cab Interior - Front part для BRP 003 - Commander MAX 800R EFI - North America - 2020
-
№АртикулНазвание
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
360293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
410293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
440250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
450250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
480506151252 WasherWasher
-
500707900175 LH Front Upper FloorLH Front Upper Floor
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
540234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
835250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
850707900004 RH Front FloorRH Front Floor
-
860250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
875250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
890234062670 Flat Washer, StainlessFlat Washer, Stainless
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
910234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920705003668 Oblong GrommetOblong Grommet
-
930250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1300707900029 LH Floor SupportLH Floor Support
-
1310250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1330250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1340224060201 Flat WasherFlat Washer
-
1350207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1360224061201 Flat WasherFlat Washer
-
1370a293200093 Neoprene SealNeoprene Seal
-
1400707900030 RH Floor SupportRH Floor Support
-
1410250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1440224060201 Flat WasherFlat Washer
-
1450207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1460224061201 Flat WasherFlat Washer
-
1470a293200093 Neoprene SealNeoprene Seal
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2210250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
2220234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2230705003841 Support PlateSupport Plate
-
2240517302785 Edge ClipEdge Clip
-
2250250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2300707900019 Lower Central Dashboard Ass'yLower Central Dashboard Ass'y
-
2310250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2320250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500707900009 Storage BinStorage Bin
-
2510207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove BoxTrim Glove Box
-
3600250000742 Torx Screw M5 X 14. Not ShownTorx Screw M5 X 14. Not Shown
-
3610250200040 Flat Washer. Not ShownFlat Washer. Not Shown
-
3615207562054 Flanged Hex. Screw S.GRIP M6 X 20. Not ShownFlanged Hex. Screw S.GRIP M6 X 20. Not Shown
-
3620207682044 Hex. Flanged Screw M8 X 20. Not ShownHex. Flanged Screw M8 X 20. Not Shown
-
3625233281414 Hex. Flanged Elastic Nut M8. Not ShownHex. Flanged Elastic Nut M8. Not Shown
