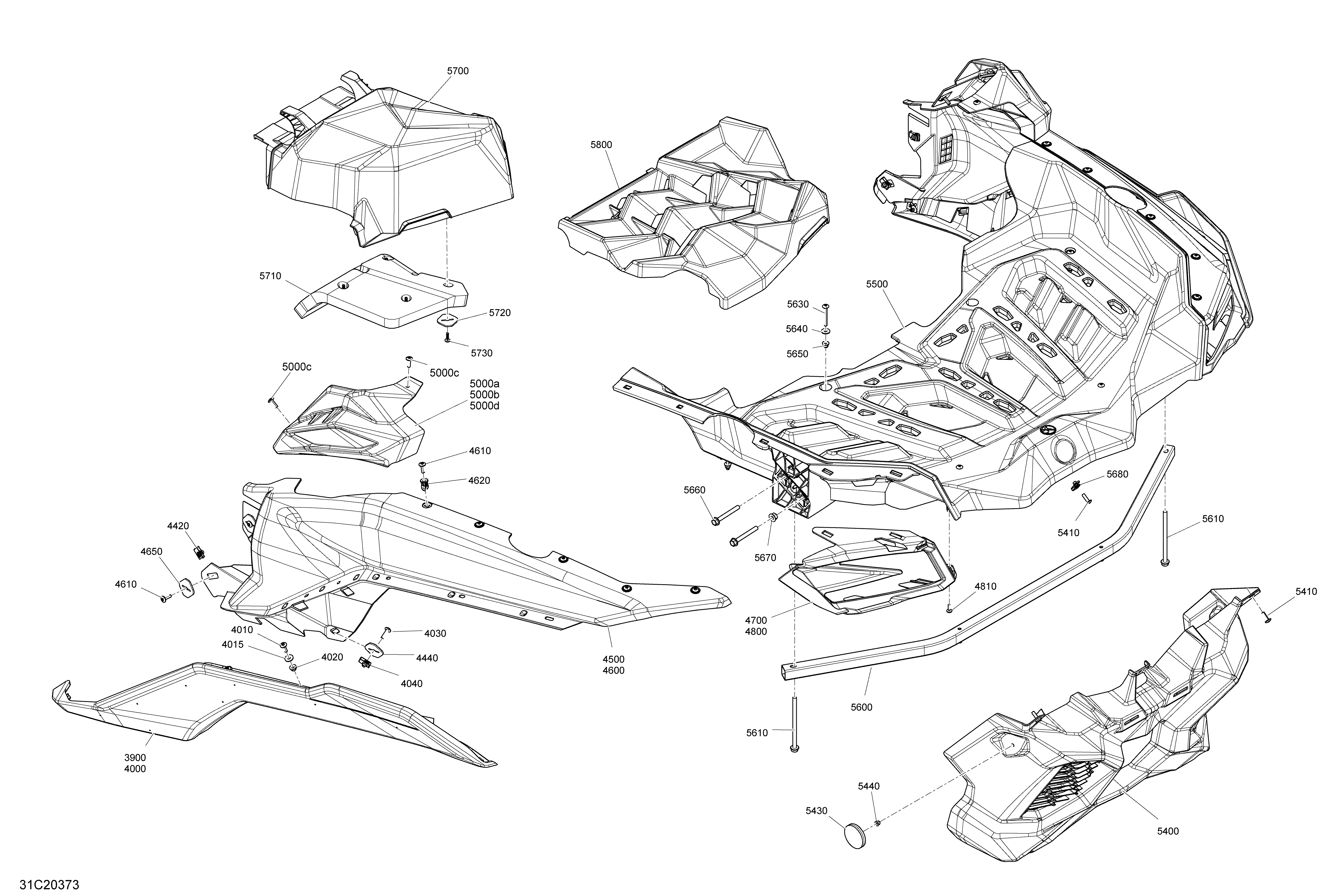

09- Body - Rear Section - XMR - Manta Green для BRP 002 - Maverick Turbo - XMR - North America - 2020
-
№АртикулНазвание
-
3900705009511 LH Rear Fender DeflectorLH Rear Fender Deflector
-
4000705009512 RH Rear Fender DeflectorRH Rear Fender Deflector
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4015234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4020233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4030250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4500705014091 Mineral Satin Gray, LH Rear FenderMineral Satin Gray, LH Rear Fender
-
4600705014092 Mineral Satin Gray, RH Rear FenderMineral Satin Gray, RH Rear Fender
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4620705010872 InsertInsert
-
4650705003841 Support PlateSupport Plate
-
4700705010686 LH Rear Lateral CoverLH Rear Lateral Cover
-
4800705010687 RH Rear Lateral CoverRH Rear Lateral Cover
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400705010001 Rear FaciaRear Facia
-
5410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5430705011221 Red ReflectorRed Reflector
-
5440233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5500715005711 Luggage Rack KitLuggage Rack Kit
-
5600705014670 TubeTube
-
5610230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5660207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5670233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
5680250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5800705013757 Rear CoverRear Cover
-
5000a705010335 LH Rear Cage TrimLH Rear Cage Trim
-
5000b705010336 RH Rear Cage TrimRH Rear Cage Trim
-
5000c250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5000d293650268 ClipClip
