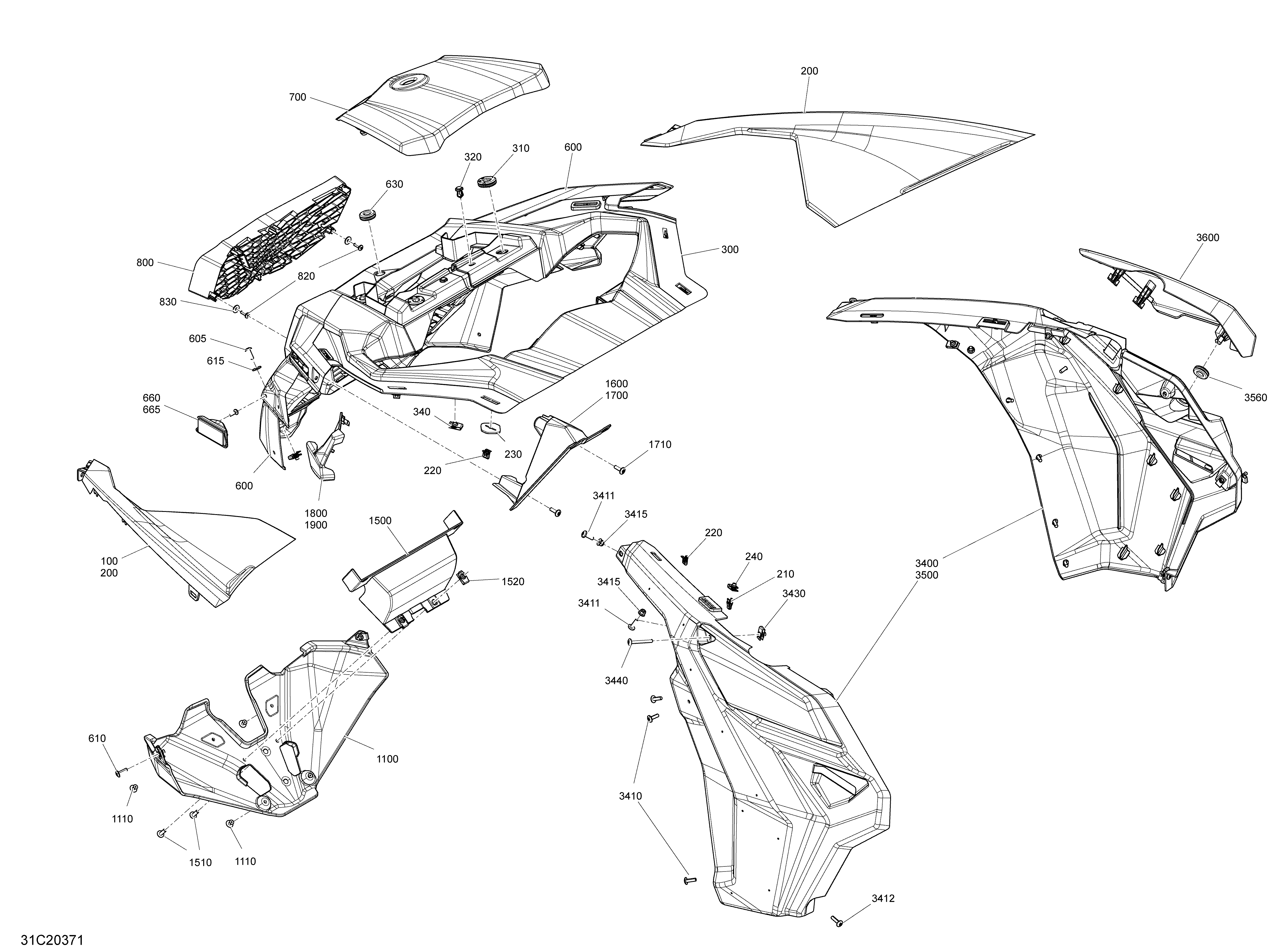

09- Body - Front Section - XRC - Orange для BRP 003 - Maverick Turbo - XRC - North America - 2020
-
№АртикулНазвание
-
100705012470 Carbon Black, LH Front FenderCarbon Black, LH Front Fender
-
200705012471 Carbon Black, RH Front FenderCarbon Black, RH Front Fender
-
210705010721 ClipClip
-
220517302785 Edge ClipEdge Clip
-
230705003841 Support PlateSupport Plate
-
240250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
300705014684 Central HoodCentral Hood
-
310705010718 GrommetGrommet
-
320293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
600705009508 Front FaciaFront Facia
-
605250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
630517303756 GrommetGrommet
-
660705011806 LH Reflector SupportLH Reflector Support
-
665705011814 RH Reflector SupportRH Reflector Support
-
700705014079 Carbon Black, Front HoodCarbon Black, Front Hood
-
800705014104 Orange Crush, Front GrillOrange Crush, Front Grill
-
820250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
830250200025 Washer M5Washer M5
-
1600705010626 LH Radiator deflectorLH Radiator deflector
-
1700705010627 RH Radiator deflectorRH Radiator deflector
-
1710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1800705010628 LH Light CoverLH Light Cover
-
1900705010629 RH Light CoverRH Light Cover
-
3400705009509 White, LH Front Lateral PanelWhite, LH Front Lateral Panel
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3412250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3430250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3500705009510 White, RH Front Lateral PanelWhite, RH Front Lateral Panel
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
