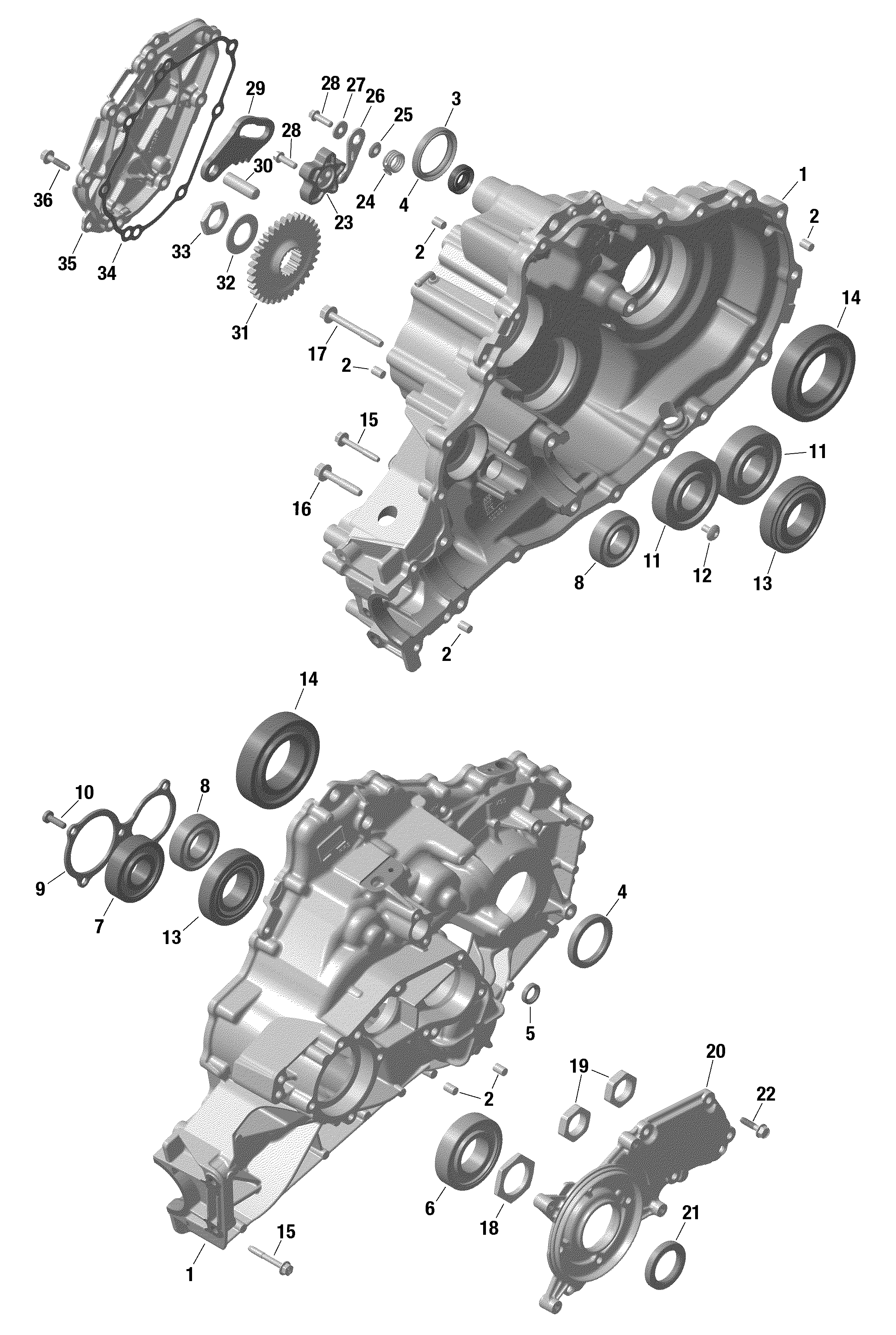

05- Gear Box 1 для BRP 005 - Maverick Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420250452 Oil SealOil Seal
-
4420230137 Oil SealOil Seal
-
5420931802 Oil SealOil Seal
-
6420632745 Ball BearingBall Bearing
-
7420832098 Ball BearingBall Bearing
-
8420232764 Ball Bearing 6205Ball Bearing 6205
-
9420651830 Retaining PlateRetaining Plate
-
10420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
11420932574 Ball BearingBall Bearing
-
12420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
14420632871 Ball BearingBall Bearing
-
15420441921 Collar Screw M6 X 45Collar Screw M6 X 45
-
16420441931 Collar Screw M8 x 45Collar Screw M8 x 45
-
17420441941 Collar Screw M8 x 65Collar Screw M8 x 65
-
18420842600 Hex Nut M34 X 1.5Hex Nut M34 X 1.5
-
19420242954 Hex. Nut M24Hex. Nut M24
-
20420212380 Bearing CoverBearing Cover
-
21420950089 Oil SealOil Seal
-
22420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
23420248024 Index WasherIndex Washer
-
24420239566 SpringSpring
-
25420227717 Step RingStep Ring
-
26420248528 Index Lever Ass'yIndex Lever Ass'y
-
27420827300 WasherWasher
-
28420441835 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
29420657440 Parking Lock LeverParking Lock Lever
-
30420249190 Needle PinNeedle Pin
-
31420634936 GearGear
-
32420245860 Spring WasherSpring Washer
-
33420242879 NutNut
-
34420450410 GasketGasket
-
35420212390 Gear Box CoverGear Box Cover
-
36420441951 Collar Screw M6 x 25Collar Screw M6 x 25
