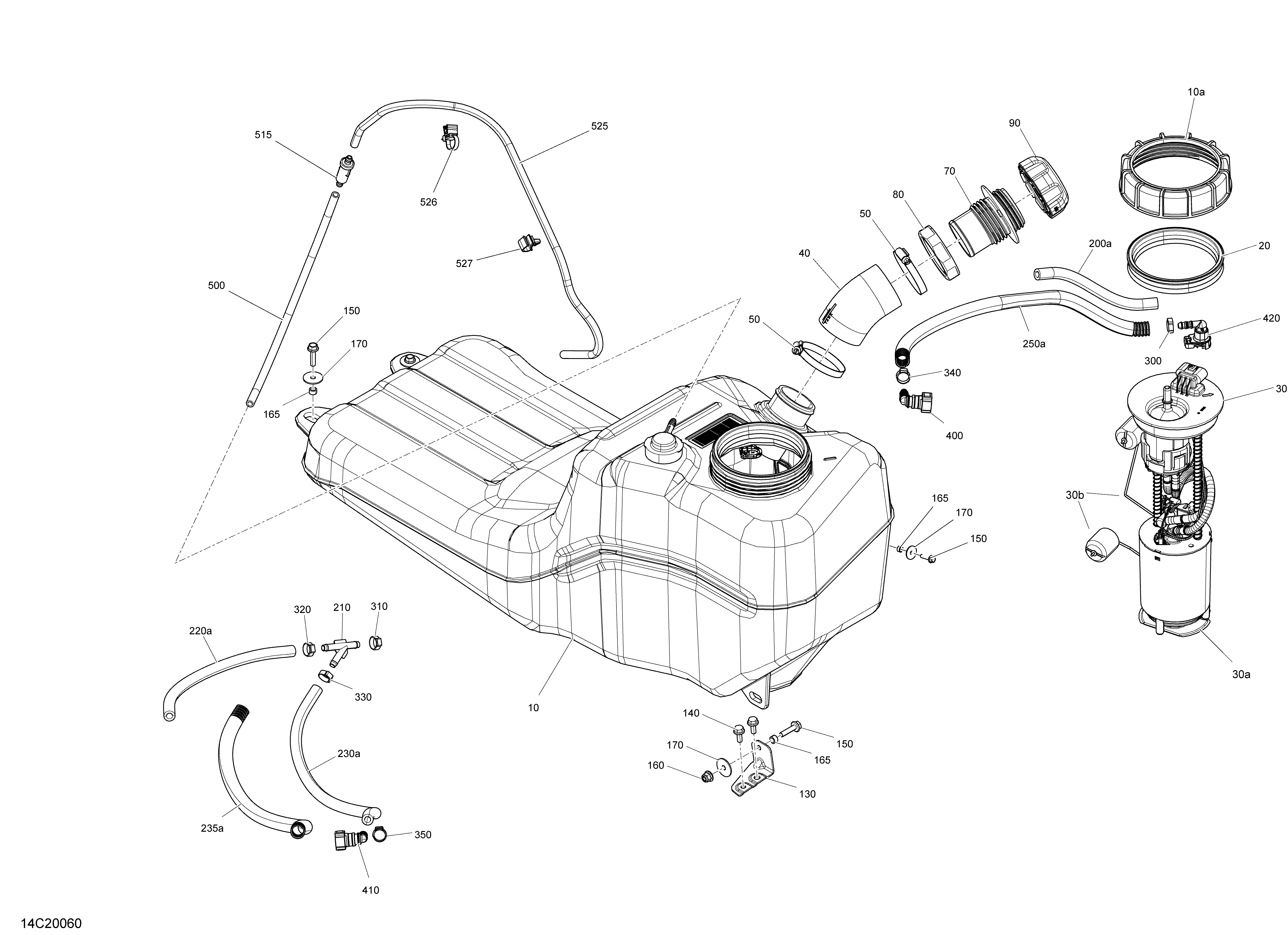

02- Fuel - DPS - NO EVAP для BRP 002 - Maverick Sport 1000 - DPS - North America - 2020
-
№АртикулНазвание
-
10709000815 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a250100062 Special Nut M130Special Nut M130
-
20293250173 GasketGasket
-
30709001056 Fuel Pump. Includes 30 to 30bFuel Pump. Includes 30 to 30b
-
30a270600113 Fuel FilterFuel Filter
-
30b715900424 Fuel SenderFuel Sender
-
40709000828 Fil Neck HoseFil Neck Hose
-
50293650081 Norma ClampNorma Clamp
-
70709000867 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90709000868 Fuel CapFuel Cap
-
130709000997 Tank BracketTank Bracket
-
140207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
150207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
160233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
165293900135 SpacerSpacer
-
170250200029 Washer M6Washer M6
-
200a709000516 Fuel LineFuel Line
-
210293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
220a709000516 Fuel LineFuel Line
-
230a709000516 Fuel LineFuel Line
-
235a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
250a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
300293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
310293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
320293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
330293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
340293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
350293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
400275500700 Quick Attach 90°Quick Attach 90°
-
410275500700 Quick Attach 90°Quick Attach 90°
-
420275500921 Quick DisconnectQuick Disconnect
-
500293830193 Polyurethane hosePolyurethane hose
-
515709001120 FilterFilter
-
525293830193 Polyurethane hosePolyurethane hose
-
526710002896 Tie-Rap ClipTie-Rap Clip
-
527515176795 Tie Rap Mount (screwable)Tie Rap Mount (screwable)
