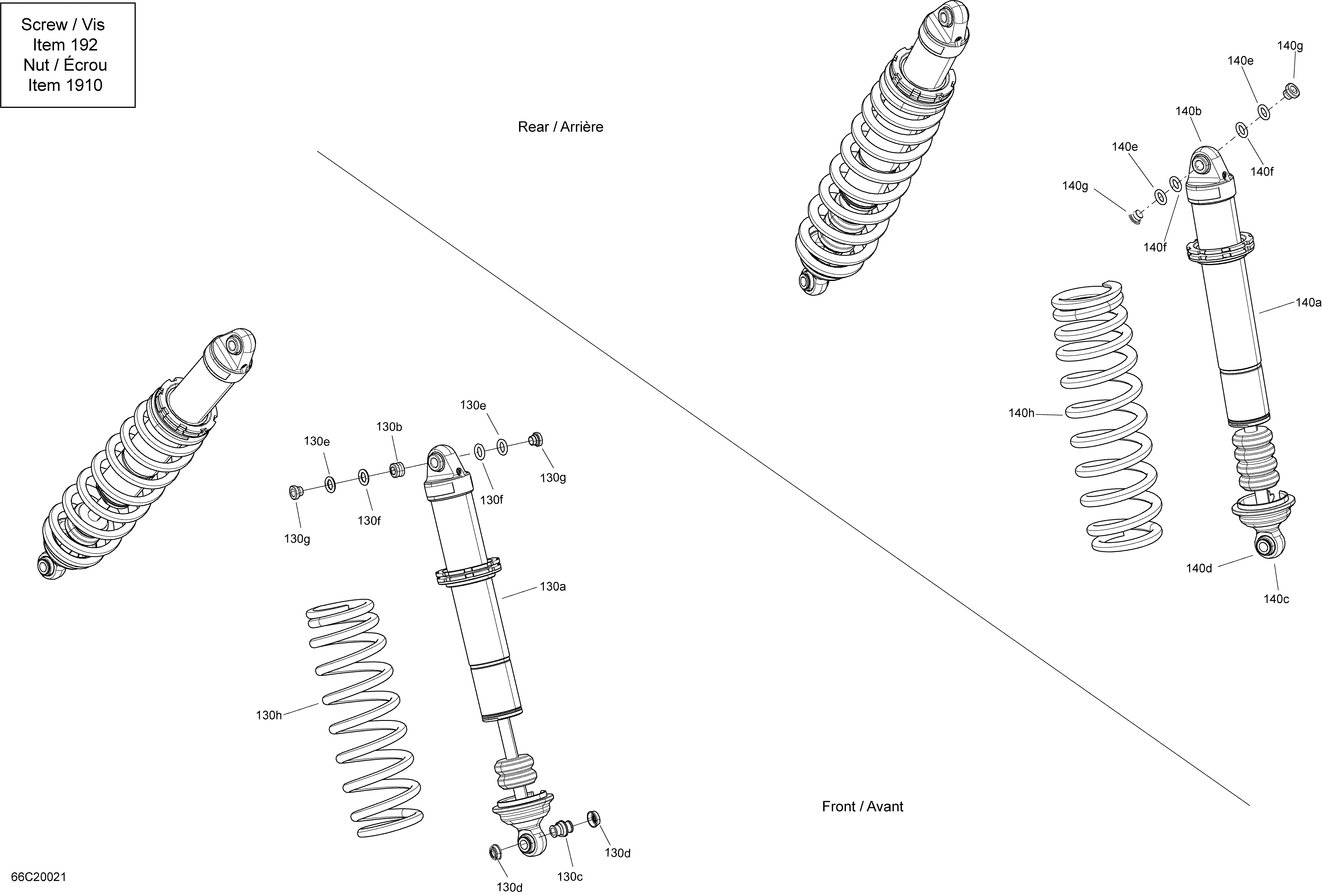

07- Shocks для BRP 003 - Maverick Sport 1000R - DPS - North America - 2020
-
№АртикулНазвание
-
130a706203194 Front Shock. Includes 130a to 130gFront Shock. Includes 130a to 130g
-
130b715900329 Spherical BearingSpherical Bearing
-
130c715900330 Spherical BearingSpherical Bearing
-
130d715900331 ProtectorProtector
-
130e715900268 O-Ring BushingO-Ring Bushing
-
130f715900252 Retaining RingRetaining Ring
-
130g715900267 Internal BushingInternal Bushing
-
130h706203560 Can-Am Red Front Spring. Model RedCan-Am Red Front Spring. Model Red
-
130h706203195 Black Front Spring. Model Timeless BlackBlack Front Spring. Model Timeless Black
-
140a706003029 Rear Shock. Includes 140a to 140gRear Shock. Includes 140a to 140g
-
140b715900329 Spherical BearingSpherical Bearing
-
140c715900330 Spherical BearingSpherical Bearing
-
140d715900331 ProtectorProtector
-
140e715900268 O-Ring BushingO-Ring Bushing
-
140f715900252 Retaining RingRetaining Ring
-
140g715900267 Internal BushingInternal Bushing
-
140h706003030 Deep Black, Rear Spring. Model Timeless BlackDeep Black, Rear Spring. Model Timeless Black
-
140h706003354 Can-Am Red, Rear Spring. Model RedCan-Am Red, Rear Spring. Model Red
-
192250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
1910233221466 Elastic Flange Nut M12Elastic Flange Nut M12
