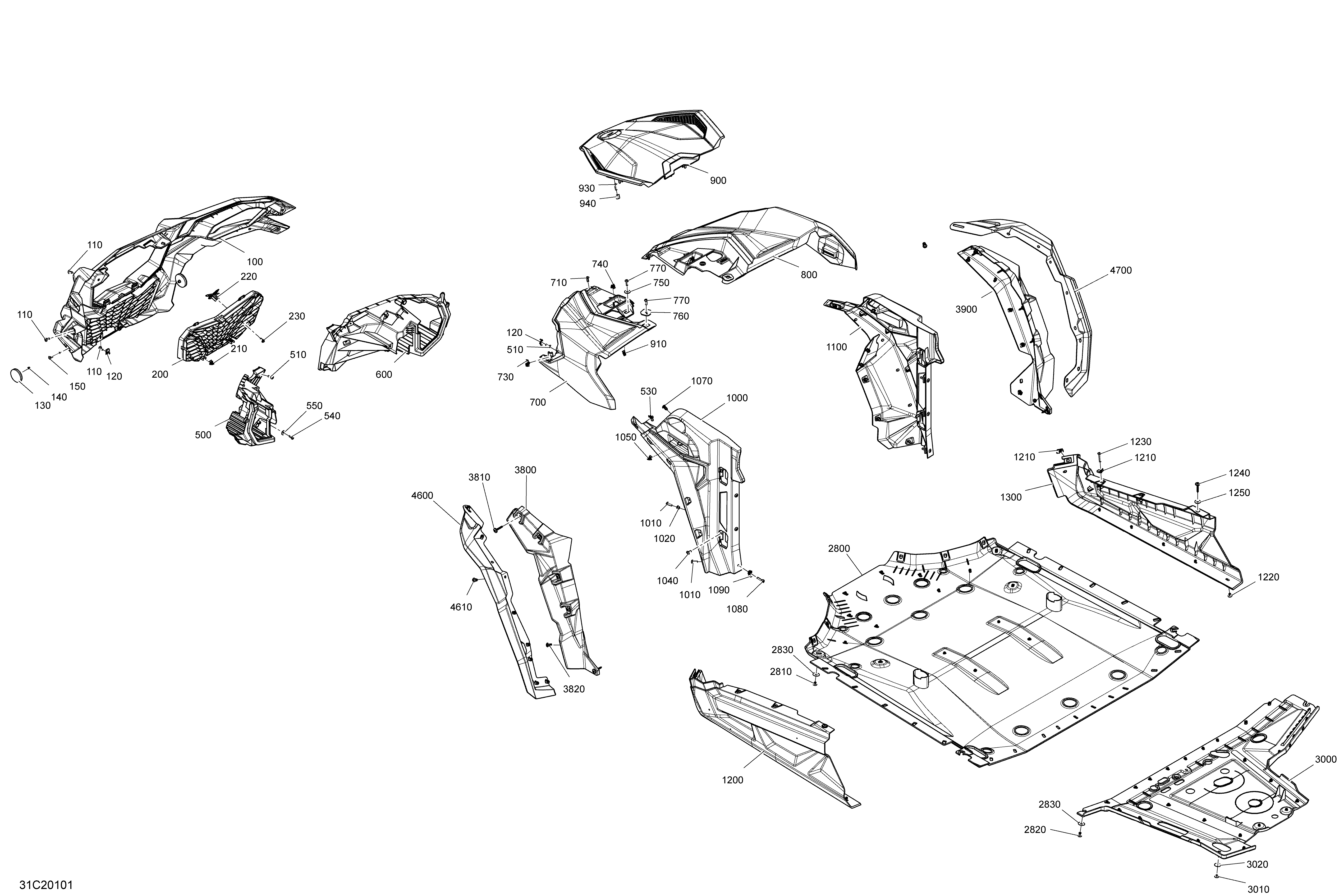

09- Body - Front Section - Manta Green для BRP 004 - Maverick Sport 1000R - XMR - North America - 2020
-
№АртикулНазвание
-
100705011317 Front FasciaFront Fascia
-
110250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
130705011222 Amber ReflectorAmber Reflector
-
140233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
150250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
200705011318 Fascia Removable GridFascia Removable Grid
-
210517306478 ClipClip
-
220705012245 Grill LogoGrill Logo
-
230250000725 Screw M4 X 16Screw M4 X 16
-
500705011319 LH Headlamp StructureLH Headlamp Structure
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
540250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705011320 RH Headlamp StructureRH Headlamp Structure
-
710250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
730250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
740517306478 ClipClip
-
750250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
760705003841 Support PlateSupport Plate
-
770250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900705011322 Removable HoodRemovable Hood
-
910517306478 ClipClip
-
930250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
940705502616 BushingBushing
-
1000705011323 LH Front MudguardLH Front Mudguard
-
1010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1040250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1050517306478 ClipClip
-
1070293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1080250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1090250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1100705011324 RH Front MudguardRH Front Mudguard
-
1200705011331 LH Rocker PanelLH Rocker Panel
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1220293150101 Pop Rivet 3/16”Pop Rivet 3/16”
-
1230250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1240250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
1250250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1300705011332 RH Rocker PanelRH Rocker Panel
-
2800705014696 Front Skid PlateFront Skid Plate
-
2810293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2820293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2830250200191 Flat Washer M6Flat Washer M6
-
3000705014697 Rear Skid PlateRear Skid Plate
-
3010293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
3020250200191 Flat Washer M6Flat Washer M6
-
3800705011325 LH FRONT 60'' Mud Guard ExtensionLH FRONT 60'' Mud Guard Extension
-
3810250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
3820293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3900705011326 RH Front 60'' Mudguard ExtensionRH Front 60'' Mudguard Extension
-
4600705012762 LH Front Fender ExtenderLH Front Fender Extender
-
4610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4700705012763 RH Front Fender ExtenderRH Front Fender Extender
