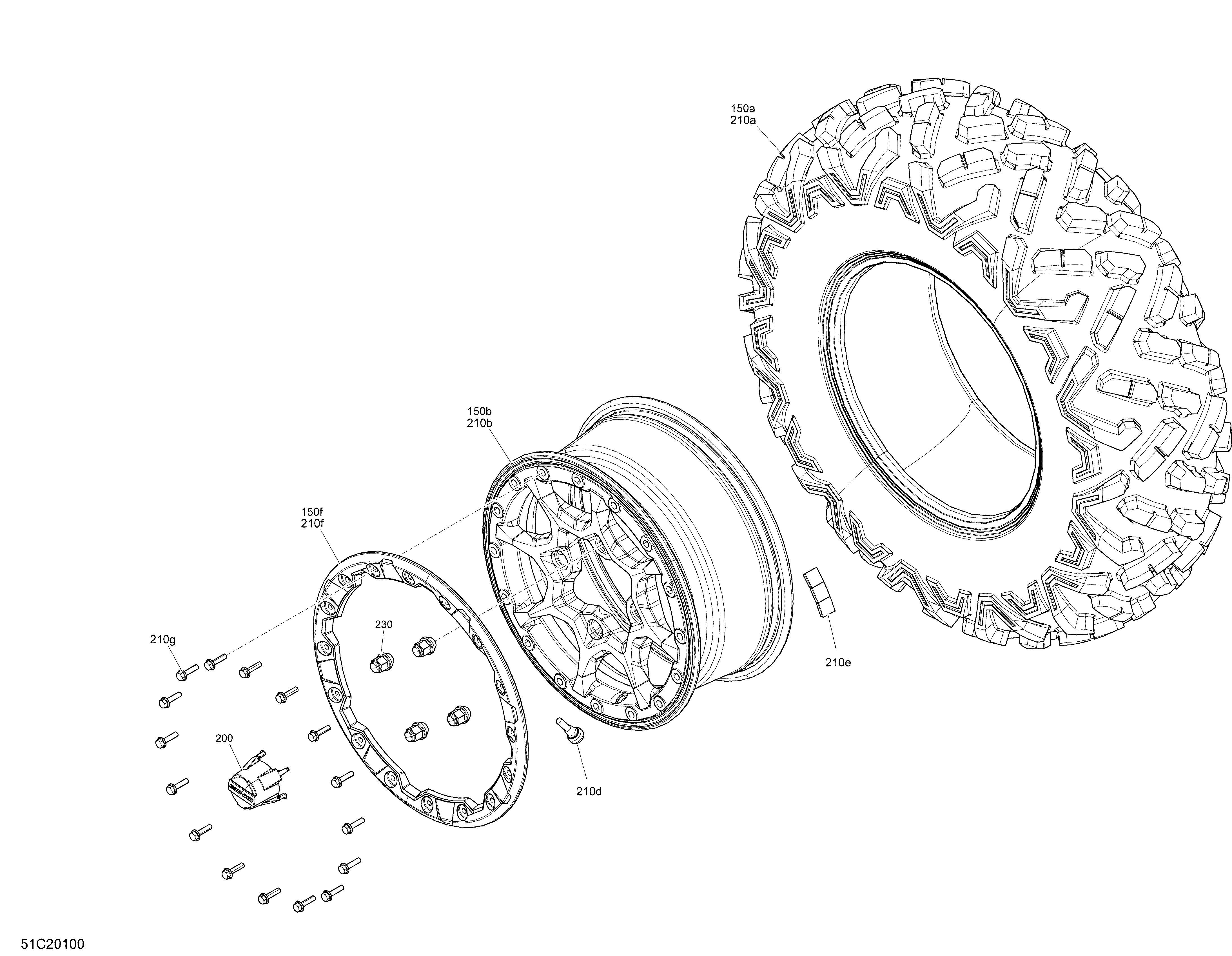

08- Wheels - XXC для BRP 006 - Maverick Sport 1000R - XXC - North America - 2020
-
№АртикулНазвание
-
150a705502604 Rear Tire. RearRear Tire. Rear
-
150b705502146 Black, Rim. RearBlack, Rim. Rear
-
150f705401837 Red, Reinforcement DiskRed, Reinforcement Disk
-
150g250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
200705400928 Wheel CapWheel Cap
-
210a705402081 Front Tire. FrontFront Tire. Front
-
210b705401594 Black Rim. FrontBlack Rim. Front
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705501385 1/2 OZ Weight1/2 OZ Weight
-
210f705401837 Red, Reinforcement DiskRed, Reinforcement Disk
-
210g250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
