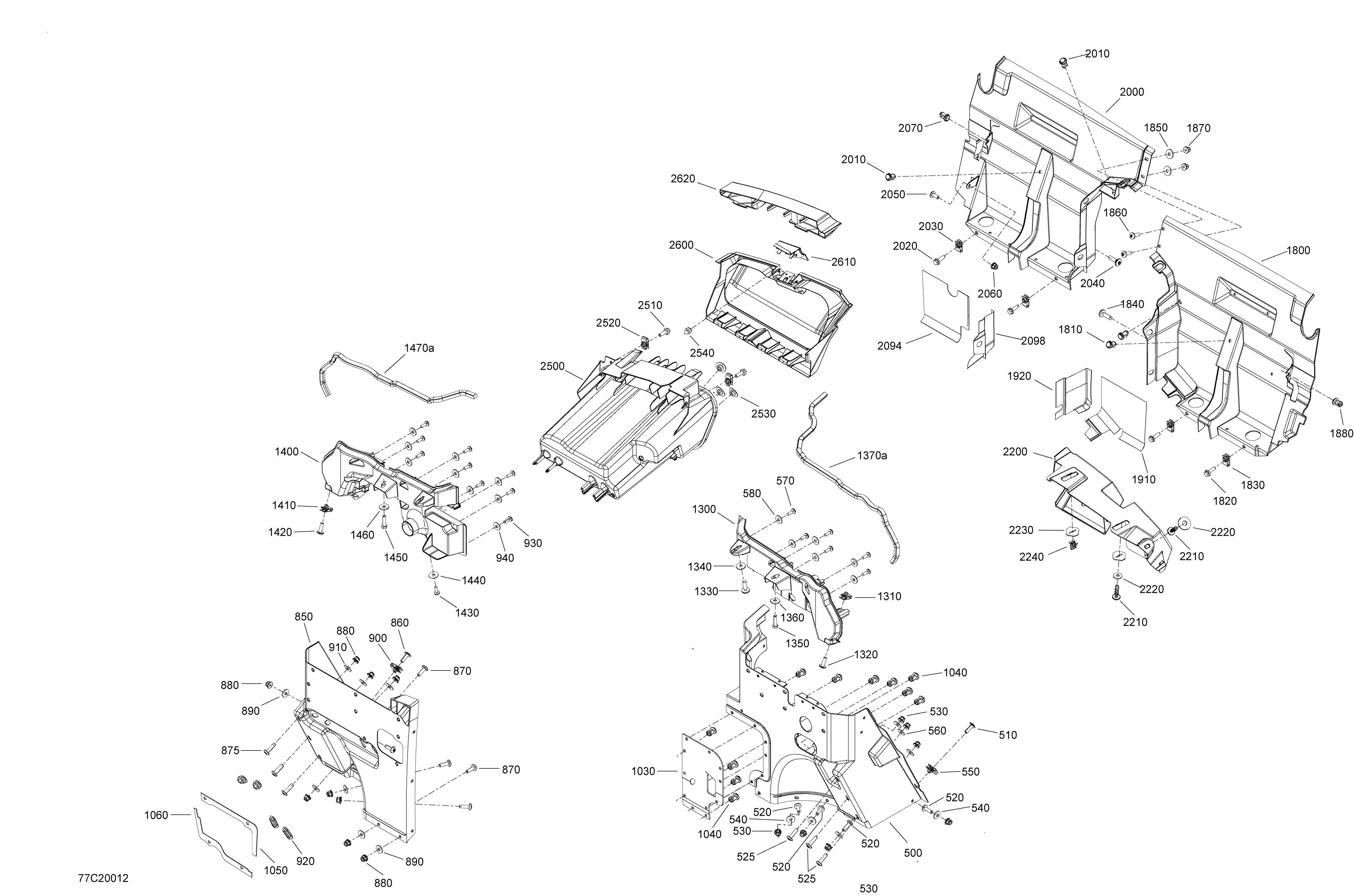

09- Cab Interior - Upper part для BRP 002 - Commander 1000R EFI - International - 2020
-
№АртикулНазвание
-
500707900181 LH Front FloorLH Front Floor
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
540234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
850707900004 RH Front FloorRH Front Floor
-
860250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
875250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
890234062670 Flat Washer, StainlessFlat Washer, Stainless
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
910234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920705003668 Oblong GrommetOblong Grommet
-
930250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1030707900192 DeflectorDeflector
-
1040293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1300707900029 LH Floor SupportLH Floor Support
-
1310250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1330250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1340224060201 Flat WasherFlat Washer
-
1350207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1360224061201 Flat WasherFlat Washer
-
1370a293200093 Neoprene SealNeoprene Seal
-
1400707900030 RH Floor SupportRH Floor Support
-
1410250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1440224060201 Flat WasherFlat Washer
-
1450207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1460224061201 Flat WasherFlat Washer
-
1470a293200093 Neoprene SealNeoprene Seal
-
1800707900164 LH Rear DeflectorLH Rear Deflector
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1820207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1830250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1850250200040 Flat WasherFlat Washer
-
1860250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1870233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900166 RH Rear DeflectorRH Rear Deflector
-
2010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2030250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2050250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
2060233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
2070293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2094707900167 Heat ShieldHeat Shield
-
2098707900184 Heat ShieldHeat Shield
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2210250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
2220234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2230705003841 Support PlateSupport Plate
-
2240517302785 Edge ClipEdge Clip
-
2500707900046 Storage BinStorage Bin
-
2510207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove BoxTrim Glove Box
-
4000250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4005250200040 Flat WasherFlat Washer
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
