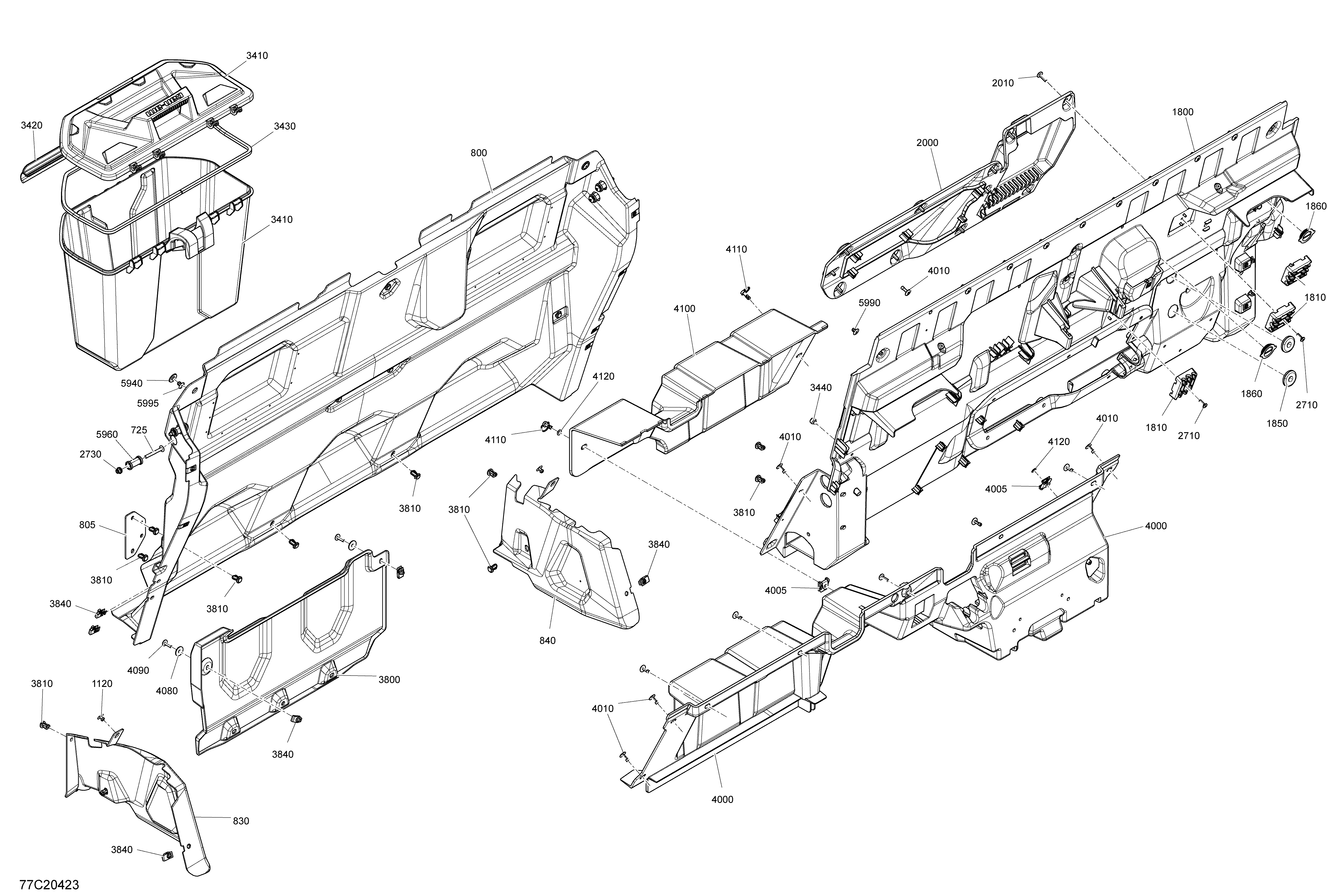

09- Cab Interior - Back Wall Section для BRP 006 - Defender MAX HD10 - International - 2020
-
№АртикулНазвание
-
725250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
800715003774 Median Deflector Ass'yMedian Deflector Ass'y
-
805707900469 PlatePlate
-
830707900443 LH Lower CoverLH Lower Cover
-
840707900444 RH Lower CoverRH Lower Cover
-
1120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1800707900715 Rear Upper Cab PanelRear Upper Cab Panel
-
1810707900788 Hose SupportHose Support
-
1850293720119 GrommetGrommet
-
1860293720119 GrommetGrommet
-
2000707900742 Rear Access CoverRear Access Cover
-
2010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2730250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
3410715003314 Storage BoxStorage Box
-
3420269501945 ClipClip
-
3430293250453 Neoprene SealNeoprene Seal
-
3440293830005 Rubber BumperRubber Bumper
-
3800707900426 Rear PanelRear Panel
-
3810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3840250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4000707900718 Rear Lower Cab PanelRear Lower Cab Panel
-
4005705002651 Quarter Turn NutQuarter Turn Nut
-
4010293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900743 Battery CoverBattery Cover
-
4110705002649 Quarter Turn ScrewQuarter Turn Screw
-
4120705002650 WasherWasher
-
5940292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5960707900470 SpacerSpacer
-
5990293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
5995293150104 Pop Rivet 3/16''Pop Rivet 3/16''
