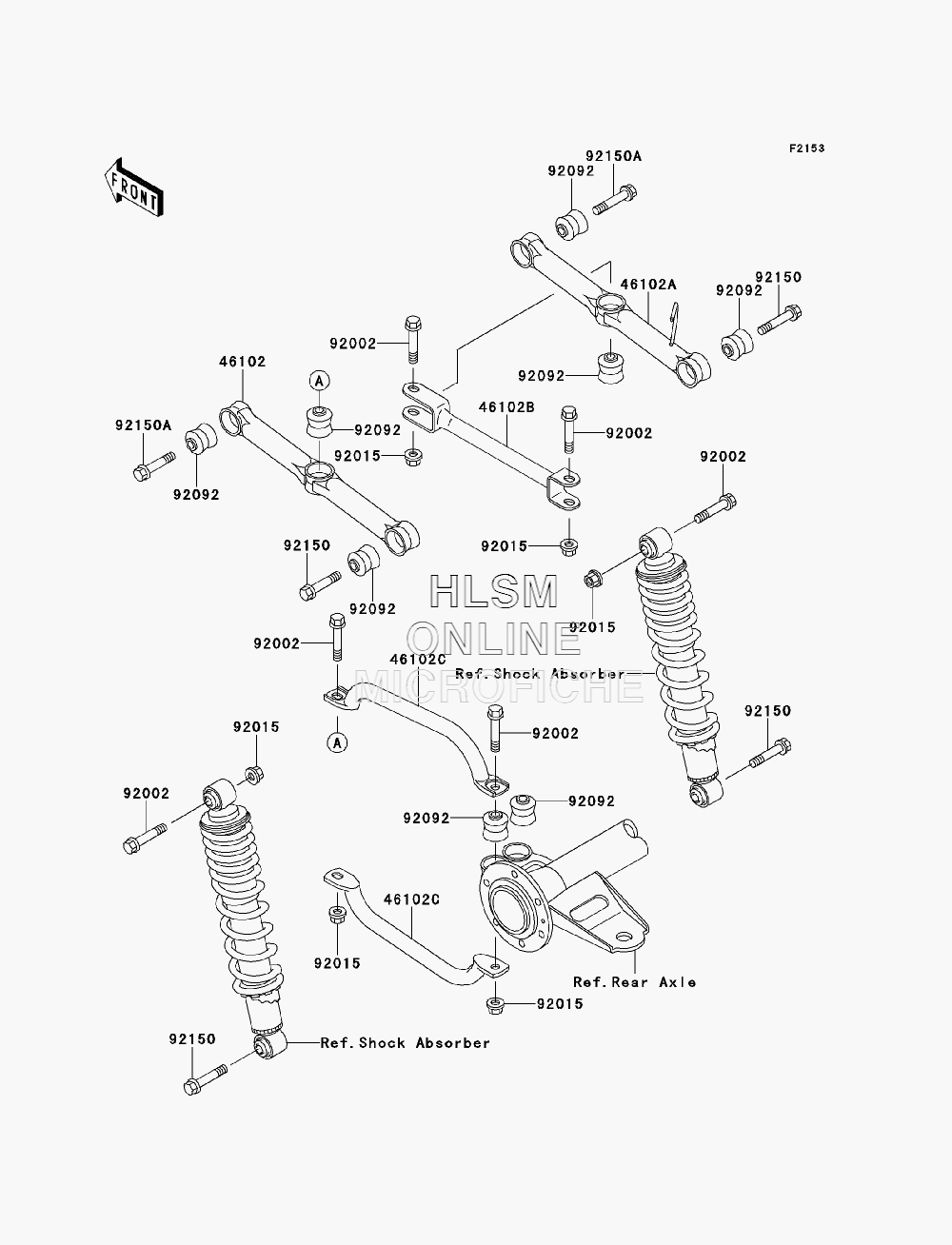

SUSPENSION - REAR для Kawasaki BAYOU 220 (KLF220-A13) - 2000 года выпуска
-
№АртикулНазвание
-
4610246102-1210 ROD, SUSPENSION, REAR, LEFT HANDROD, SUSPENSION, REAR, LEFT HAND
-
46102A46102-1211 ROD, SUSPENSION, REAR, RIGHT HANDROD, SUSPENSION, REAR, RIGHT HAND
-
46102B46102-1213 ROD, SUSPENSION, RIGHT CROSSROD, SUSPENSION, RIGHT CROSS
-
46102C46102-1330 ROD, SUSPENSION, LEFT CROSSROD, SUSPENSION, LEFT CROSS
-
9200292002-1529 BOLT, FLANGED, 10X53.5BOLT, FLANGED, 10X53.5
-
9201592015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9209292092-1064 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1048 BOLT, FLANGED, 10X49BOLT, FLANGED, 10X49
-
92150A92150-1070 BOLT, FLANGED, 10X52BOLT, FLANGED, 10X52
