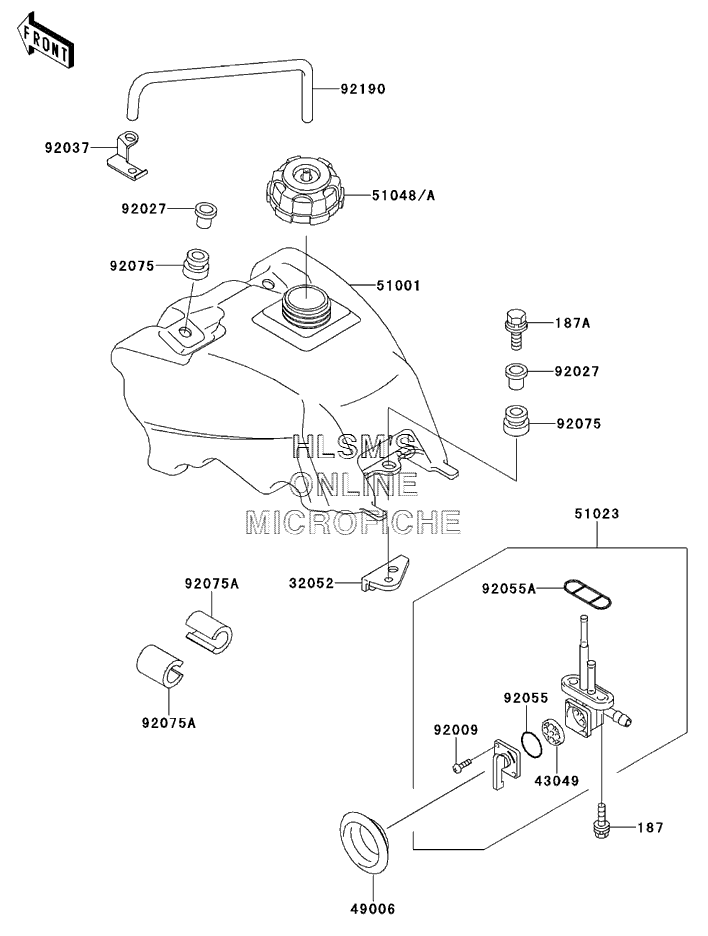

FUEL TANK для Kawasaki Mojave 250 (KSF250-A14) - 2000 года выпуска
-
№АртикулНазвание
-
187187B0614 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
187A187D0630 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
3205232052-1232 BRACKET-TANKBRACKET-TANK
-
4304943049-1017 PACKING, FUEL TAP LEVERPACKING, FUEL TAP LEVER
-
4900649006-1192 BOOTBOOT
-
5100151001-1482 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1146 TAP-ASSY, FUELTAP-ASSY, FUEL
-
51048A51048-1127 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
9200992009-1123 SCREW, 3X5SCREW, 3X5
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203792037-1961 CLAMP, TUBECLAMP, TUBE
-
9205592055-1111 RING-O, FUEL TAP LEVERRING-O, FUEL TAP LEVER
-
92055A92055-1348 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
9207592075-1787 DAMPERDAMPER
-
92075A92075-1835 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9219092190-1022 TUBE, 4.7X9.5X350TUBE, 4.7X9.5X350
