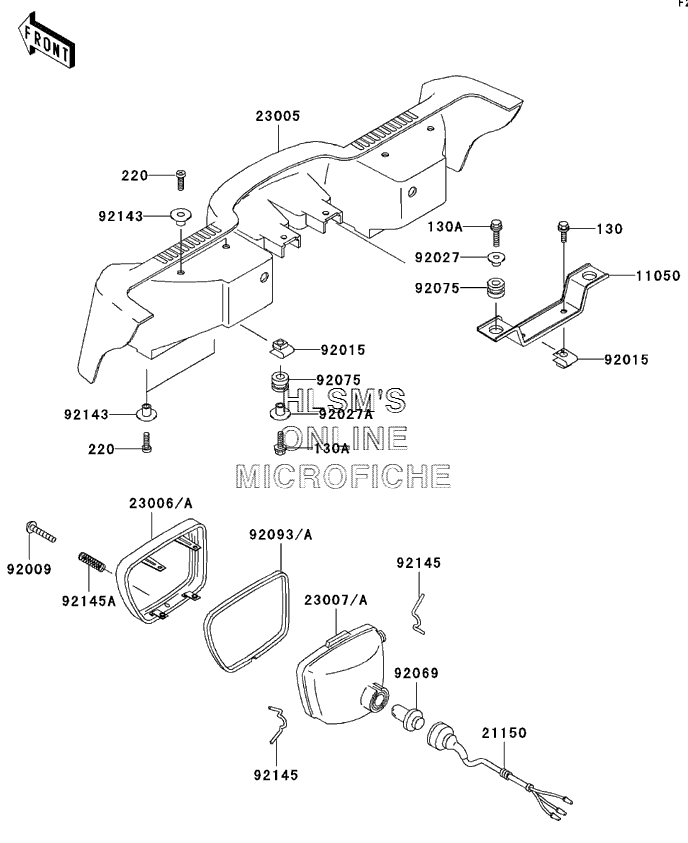

HEADLIGHT(S) для Kawasaki Prairie 400 4x4 (KVF400-C2) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130J0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
220220C0516 SCREW-PAN-CROS, 5X16 (BLACK)SCREW-PAN-CROS, 5X16 (BLACK)
-
1105011050-1717 BRACKET, HEAD LAMP COVERBRACKET, HEAD LAMP COVER
-
2115021150-1060 CORD-ASSY, HEAD LAMPCORD-ASSY, HEAD LAMP
-
2300523005-1170-6Z BODY-COMP-HEAD LAMP (F.BLACK)BODY-COMP-HEAD LAMP (F.BLACK)
-
2300623006-1075 RIM-LAMP (LEFT)RIM-LAMP (LEFT)
-
23006A23006-1076 RIM-LAMP (RIGHT)RIM-LAMP (RIGHT)
-
2300723007-1354 LENS-COMP, HEAD LAMP (LEFT)LENS-COMP, HEAD LAMP (LEFT)
-
23007A23007-1355 LENS-COMP, HEAD LAMP (RIGHT)LENS-COMP, HEAD LAMP (RIGHT)
-
9200992009-1139 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
-
9201592015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
92027A92027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9206992069-1080 BULB, 12V 30/30WBULB, 12V 30/30W
-
9207592075-1690 DAMPERDAMPER
-
9209392093-1481 SEAL, HEAD LAMP (LEFT)SEAL, HEAD LAMP (LEFT)
-
92093A92093-1482 SEAL, HEAD LAMP (RIGHT)SEAL, HEAD LAMP (RIGHT)
-
9214392143-1234 COLLARCOLLAR
-
9214592145-1190 SPRINGSPRING
-
92145A92145-1230 SPRINGSPRING
