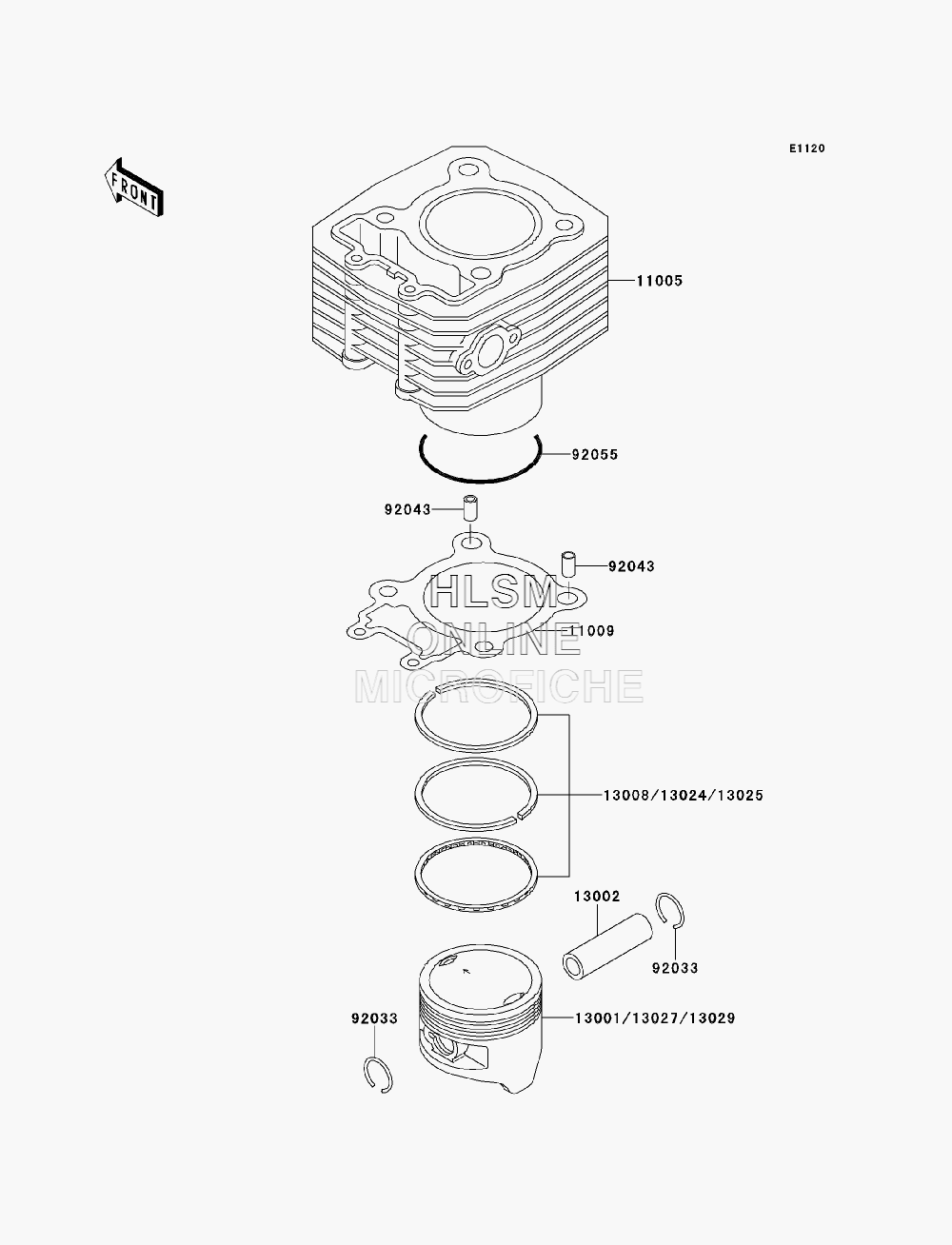

CYLINDER/PISTON(S) для Kawasaki BAYOU 220 (KLF220-A14) - 2001 года выпуска
-
№АртикулНазвание
-
1100511005-1669 CYLINDER-ENGINECYLINDER-ENGINE
-
1100911009-1670 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1282 PISTON-ENGINE, STDPISTON-ENGINE, STD
-
1300213002-1004 PIN-PISTONPIN-PISTON
-
1300813008-1090 RING-SET-PISTON, STDRING-SET-PISTON, STD
-
1302413024-1075 RING-SET-PISTON LL, O/S 1.00 (OPT)RING-SET-PISTON LL, O/S 1.00 (OPT)
-
1302513025-1085 RING-SET-PISTON L, O/S 0.50 (OPT)RING-SET-PISTON L, O/S 0.50 (OPT)
-
1302713027-1154 PISTON-ENGINE LL, O/S 1.00 (OPT)PISTON-ENGINE LL, O/S 1.00 (OPT)
-
1302913029-1177 PISTON-ENGINE L, O/S 0.50 (OPT)PISTON-ENGINE L, O/S 0.50 (OPT)
-
9203392033-1161 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-1178 RING-O, 68.6MMRING-O, 68.6MM
