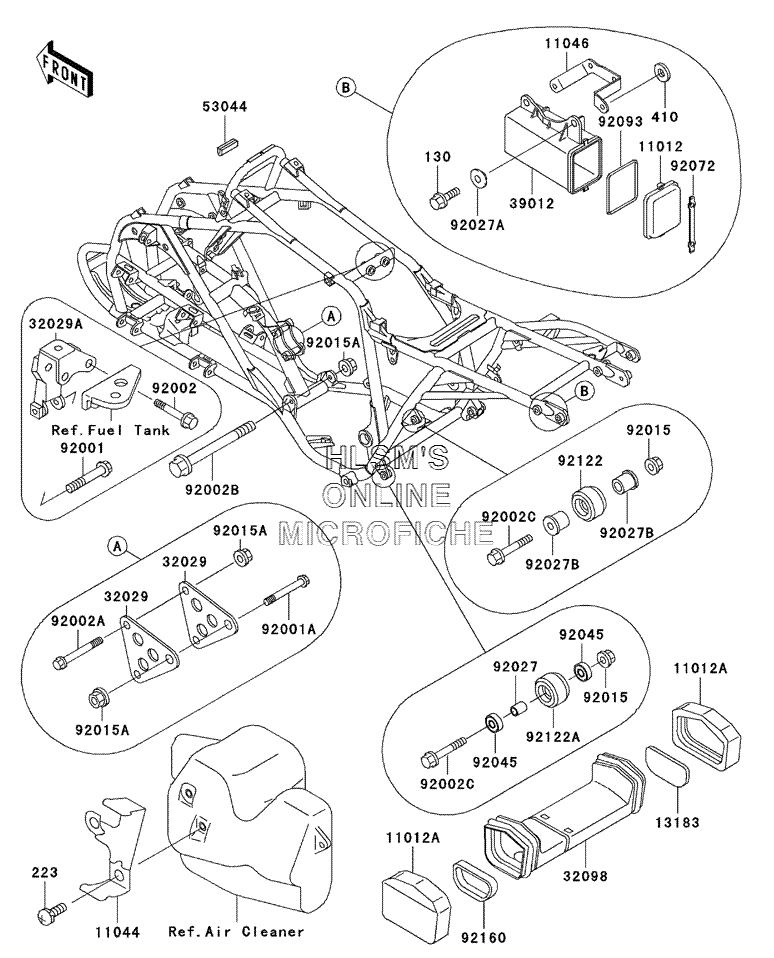

FRAME FITTINGS для Kawasaki Mojave 250 (KSF250-A15) - 2001 года выпуска
-
№АртикулНазвание
-
130130G0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
223223C0610 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
410410B0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
1101211012-1606 CAP, TOOL CASECAP, TOOL CASE
-
11012A11012-1622 CAP, TOOL CASECAP, TOOL CASE
-
1104411044-1932 BRACKET, IGNITERBRACKET, IGNITER
-
1104611046-1911 BRACKET, STORAGE CASEBRACKET, STORAGE CASE
-
1318313183-1220 PLATE, TOOL CASEPLATE, TOOL CASE
-
3202932029-1474 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32029A32029-1475 BRACKET-ENGINE, TOPBRACKET-ENGINE, TOP
-
3209832098-1090 CASE-TOOLCASE-TOOL
-
3901239012-1055 CASE-STORAGECASE-STORAGE
-
5304453044-1185 TRIM, L=50TRIM, L=50
-
9200192001-1579 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92001A92001-4021 BOLT, 10X75BOLT, 10X75
-
9200292002-1182 BOLT, 8X50BOLT, 8X50
-
92002A92002-1764 BOLT, FLANGED, 10X80BOLT, FLANGED, 10X80
-
92002B92002-1765 BOLT, FLANGED, 10X145BOLT, FLANGED, 10X145
-
92002C92002-1857 BOLT, FLANGED, 8X52BOLT, FLANGED, 8X52
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202792027-1081 COLLAR, 8.8X12X15.5COLLAR, 8.8X12X15.5
-
92027A92027-1354 COLLARCOLLAR
-
92027B92027-1383 COLLAR, CHAIN GUIDECOLLAR, CHAIN GUIDE
-
9204592045-1227 BEARING-BALL, 608DMC3 AV2SBEARING-BALL, 608DMC3 AV2S
-
9207292072-1226 BAND, TOOL CASE CAPBAND, TOOL CASE CAP
-
9209392093-1247 SEAL, TOOL CASE CAPSEAL, TOOL CASE CAP
-
9212292122-1021 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
92122A92122-1102 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9216092160-1010 DAMPER, TOOL CASEDAMPER, TOOL CASE
