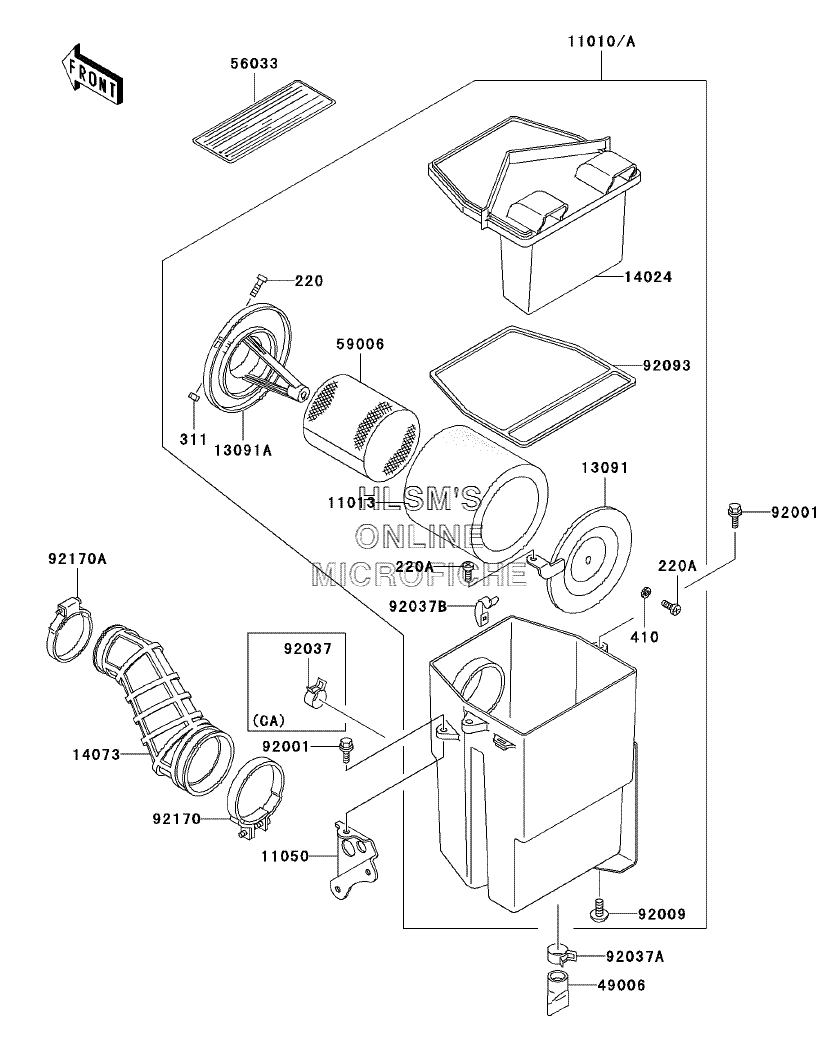

AIR CLEANER для Kawasaki Bayou 300 (KLF300-B15) - 2002 года выпуска
-
№АртикулНазвание
-
220220B0516 SCREW-PAN-CROSSCREW-PAN-CROS
-
220A220B0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
311311B0500 NUT-HEXNUT-HEX
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
1101011010-1648 FILTER-ASSY-AIR (EXCEPT CALIF)FILTER-ASSY-AIR (EXCEPT CALIF)
-
11010A11010-1649 FILTER-ASSY-AIR (CALIF. ONLY)FILTER-ASSY-AIR (CALIF. ONLY)
-
1101311013-1275 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1105011050-1979 BRACKETBRACKET
-
1309113091-1488 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1565 HOLDER, AIR FILTER ELEMENTHOLDER, AIR FILTER ELEMENT
-
1402414024-1703 COVER, AIR FILTERCOVER, AIR FILTER
-
1407314073-1372 DUCTDUCT
-
4900649006-1199 BOOTBOOT
-
5603356033-1079 LABEL-MANUAL, MAINTENANCELABEL-MANUAL, MAINTENANCE
-
5900659006-1052 ARRESTER-FLAMEARRESTER-FLAME
-
9200192001-1460 BOLT, 6X20BOLT, 6X20
-
9200992009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9203792037-1181 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037A92037-1460 CLAMPCLAMP
-
92037B92037-1783 CLAMP, AIR FILTERCLAMP, AIR FILTER
-
9209392093-1241 SEAL, AIR FILTERSEAL, AIR FILTER
-
9217092170-1149 CLAMPCLAMP
-
92170A92170-1674 CLAMPCLAMP
