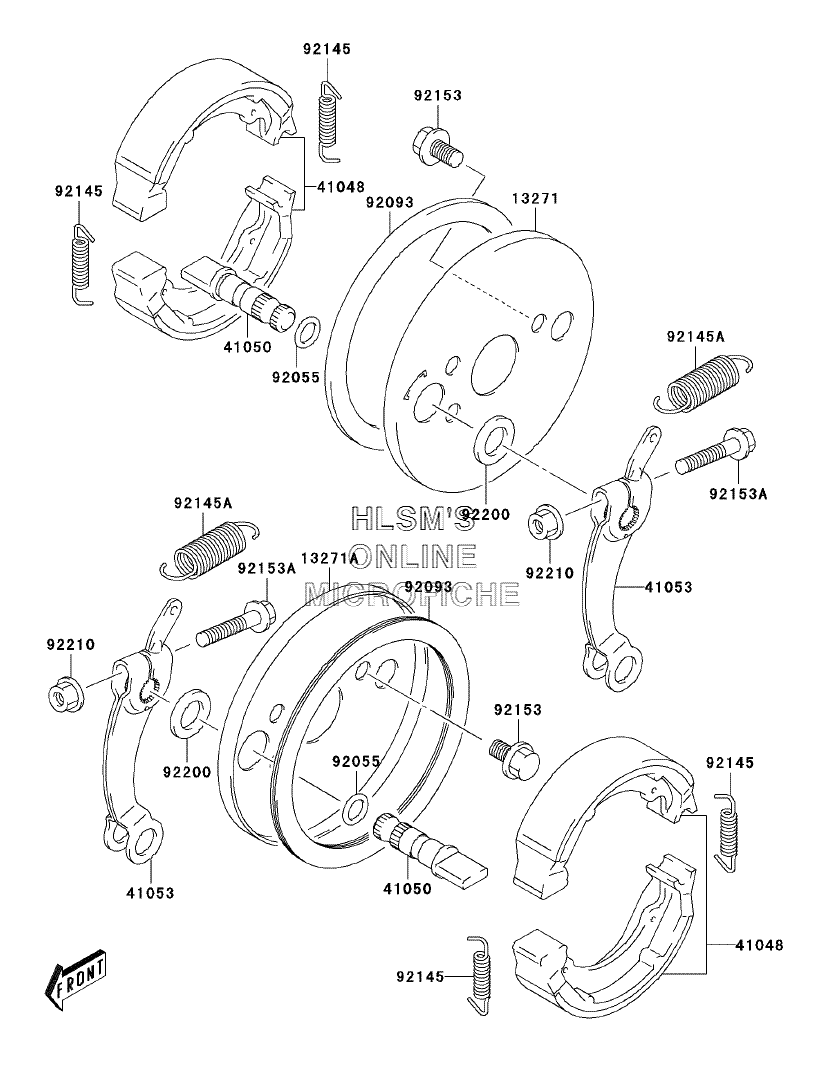

BRAKE - FRONT для Kawasaki KFX50 (KSF50-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1327113271-S034 PLATE, FRONT BRAKE (RIGHT)PLATE, FRONT BRAKE (RIGHT)
-
13271A13271-S035 PLATE, FRONT BRAKE (LEFT)PLATE, FRONT BRAKE (LEFT)
-
4104841048-S004 SHOE-BRAKESHOE-BRAKE
-
4105041050-S004 CAM-BRAKECAM-BRAKE
-
4105341053-S004 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
9205592055-S040 RING-O, BRAKE CAM DUSTRING-O, BRAKE CAM DUST
-
9209392093-S018 SEAL, FRONT BRAKE DUSTSEAL, FRONT BRAKE DUST
-
9214592145-S066 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
92145A92145-S067 SPRING, BRAKE CAM LEVERSPRING, BRAKE CAM LEVER
-
9215392153-S143 BOLTBOLT
-
92153A92153-S203 BOLT, BRAKE CAM LEVERBOLT, BRAKE CAM LEVER
-
9220092200-S092 WASHER, MAGNETOWASHER, MAGNETO
-
9221092210-S067 NUTNUT
