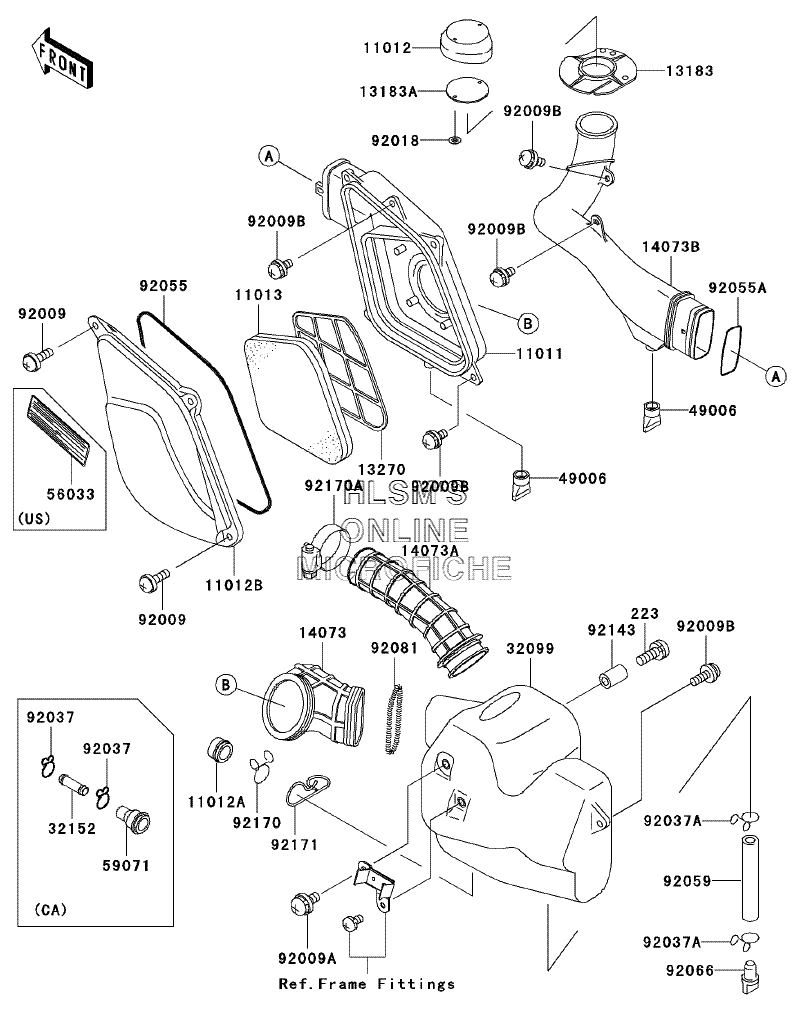

AIR CLEANER для Kawasaki Lakota Sport (KEF300-B3) - 2003 года выпуска
-
№АртикулНазвание
-
223223C0635 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1101111011-1442 CASE-AIR FILTERCASE-AIR FILTER
-
1101211012-1537 CAP, SNORKL DUCTCAP, SNORKL DUCT
-
11012A11012-1544 CAP, HEAD (EXCEPT CALIF)CAP, HEAD (EXCEPT CALIF)
-
11012B11012-1902 CAP, CAR FILTERCAP, CAR FILTER
-
1101311013-1145 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1318313183-1019 PLATE, SNORKL DUCTPLATE, SNORKL DUCT
-
13183A13183-1020 PLATE, SNORKL CAPPLATE, SNORKL CAP
-
1327013270-1317 PLATE, ELEMENTPLATE, ELEMENT
-
1407314073-1266 DUCT, CHAMBER-AIRFILTERDUCT, CHAMBER-AIRFILTER
-
14073A14073-1611 DUCT, AIR FILTERDUCT, AIR FILTER
-
14073B14073-1629 DUCT, SNORKLDUCT, SNORKL
-
3209932099-1155 CASE, AIR CHAMBERCASE, AIR CHAMBER
-
3215232152-1567 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
4900649006-1292 BOOTBOOT
-
5603356033-1079 LABEL-MANUAL, MAINTENANCE (EXCEPT CALIF)LABEL-MANUAL, MAINTENANCE (EXCEPT CALIF)
-
5907159071-1168 JOINT (CALIF. ONLY)JOINT (CALIF. ONLY)
-
9200992009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009A92009-1275 SCREW, 6X14SCREW, 6X14
-
92009B92009-1276 SCREW, 6X16SCREW, 6X16
-
9201892018-005 NUT, PUSH, 3MMNUT, PUSH, 3MM
-
9203792037-1271 CLAMP, FUEL TUBE (CALIF. ONLY)CLAMP, FUEL TUBE (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1344 RING-O, AIR FILTER CASERING-O, AIR FILTER CASE
-
92055A92055-1345 RING-O, 57.3X3RING-O, 57.3X3
-
9205992059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9208192081-1638 SPRING, DUCTSPRING, DUCT
-
9214392143-1046 COLLARCOLLAR
-
9217092170-1445 CLAMP, TUBECLAMP, TUBE
-
92170A92170-1674 CLAMPCLAMP
-
9217192171-1483 CLAMPCLAMP
