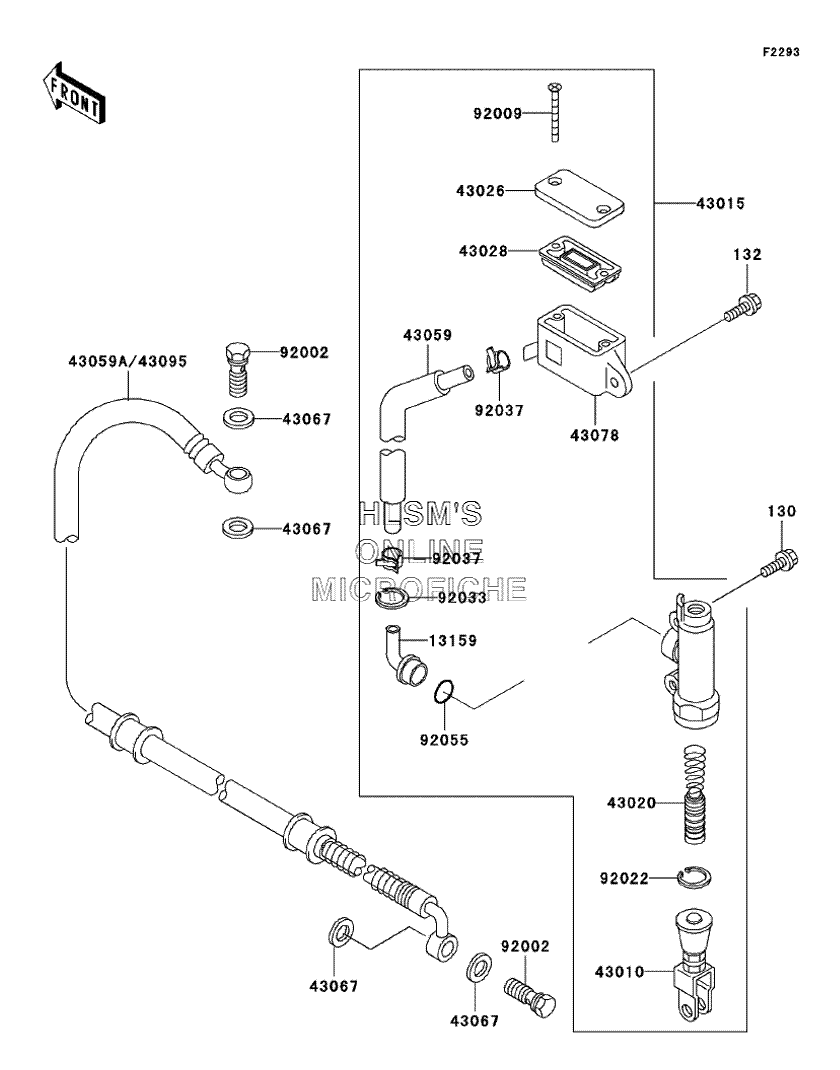

BRAKE - MASTER CYLINDER - REAR для Kawasaki Mojave 250 (KSF250-A17) - 2003 года выпуска
-
№АртикулНазвание
-
130130S0814 BOLT, FLANGEDBOLT, FLANGED
-
132132G0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1315913159-1052 CONNECTOR (REAR) MASTER CYLINDERCONNECTOR (REAR) MASTER CYLINDER
-
4301043010-1060 ROD, ASSY, BRAKE (REAR)ROD, ASSY, BRAKE (REAR)
-
4301543015-1326 CYLINDER, ASSY, MASTER (REAR)CYLINDER, ASSY, MASTER (REAR)
-
4302043020-1063 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1022 CAP, BRAKECAP, BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4305943059-1369 HOSE, BRAKE (REAR) MASTER CYLINDERHOSE, BRAKE (REAR) MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1078 RESERVOIRRESERVOIR
-
4309543095-1250 HOSE, BRAKE (REAR)HOSE, BRAKE (REAR)
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1409 SCREW, 5MMSCREW, 5MM
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
