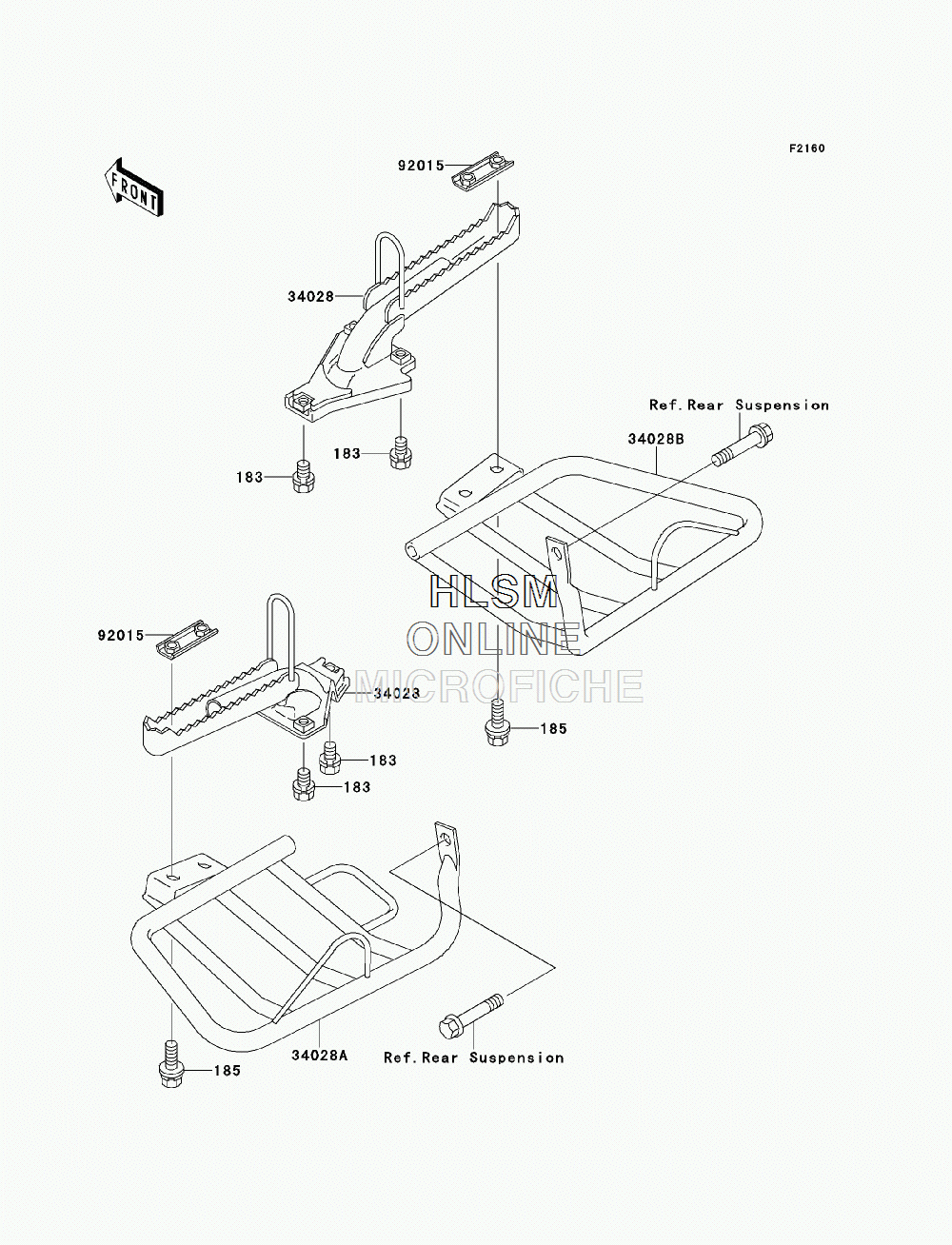

FOOTRESTS для Kawasaki BAYOU 250 (KLF250-A2) - 2004 года выпуска
-
№АртикулНазвание
-
183183H0818 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
185185J0820 BOLT-UPSET-WSP-SMALL, 8X20BOLT-UPSET-WSP-SMALL, 8X20
-
3402834028-1227 STEPSTEP
-
34028A34028-1308 STEP, FOOT BOARD, LEFT HANDSTEP, FOOT BOARD, LEFT HAND
-
34028B34028-1309 STEP, FOOT BOARD, RIGHT HANDSTEP, FOOT BOARD, RIGHT HAND
-
9201592015-1732 NUTNUT
