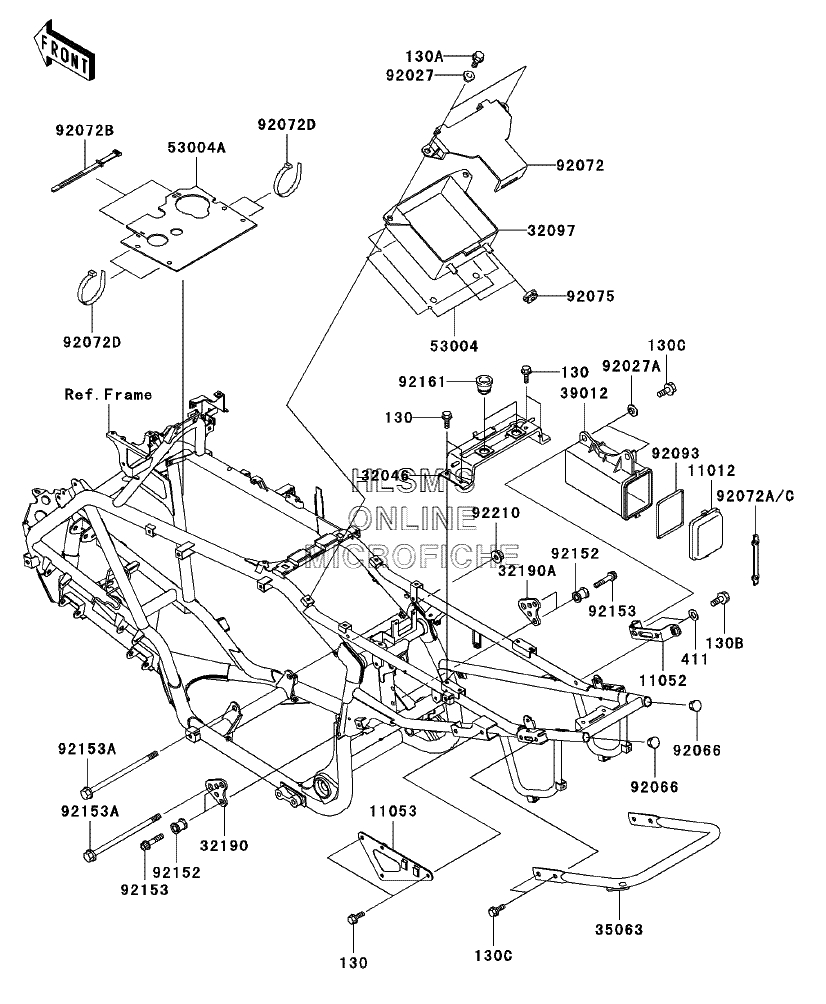

FRAME FITTINGS для Kawasaki KFX700 (KSV700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130J0812 BOLT-FLANGEDBOLT-FLANGED
-
130C130J0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
411411F0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
1101211012-1606 CAP, TOOL CASECAP, TOOL CASE
-
1105211052-1930 BRACKET, TOOL CASE JOINTBRACKET, TOOL CASE JOINT
-
1105311053-0301 BRACKET, REGULATER (LEFT)BRACKET, REGULATER (LEFT)
-
3204632046-0006 BRACKET-SEATBRACKET-SEAT
-
3209732097-0002 CASE-BATTERYCASE-BATTERY
-
3219032190-1315-HN BRACKET-ENGINE (REAR/UPPER/LEFT/GRAY)BRACKET-ENGINE (REAR/UPPER/LEFT/GRAY)
-
32190A32190-1316-HN BRACKET-ENGINE (REAR/UPPER/RIGHT/GRAY)BRACKET-ENGINE (REAR/UPPER/RIGHT/GRAY)
-
3506335063-0033-HN STAY, GLOVE BAR (GRAY)STAY, GLOVE BAR (GRAY)
-
3901239012-1055 CASE-STORAGECASE-STORAGE
-
5300453004-0002 MAT, BATTERY CASEMAT, BATTERY CASE
-
53004A53004-0009 MAT, WATER PROTECTMAT, WATER PROTECT
-
9202792027-1166 COLLARCOLLAR
-
92027A92027-1354 COLLARCOLLAR
-
9206692066-1220 PLUGPLUG
-
9207292072-0006 BAND, BATTERYBAND, BATTERY
-
92072B92072-030 BAND, L=123BAND, L=123
-
92072C92072-1226 BAND, TOOL CASE CAPBAND, TOOL CASE CAP
-
92072D92072-1239 BAND, L=188BAND, L=188
-
9207592075-1787 DAMPERDAMPER
-
9209392093-1247 SEAL, TOOL CASE CAPSEAL, TOOL CASE CAP
-
9215292152-0061 COLLAR, L=25COLLAR, L=25
-
9215392153-0408 BOLT, SOCKET, 10X45BOLT, SOCKET, 10X45
-
92153A92153-1272 BOLT, FLANGED, 12X190BOLT, FLANGED, 12X190
-
9216192161-0048 DAMPERDAMPER
-
9221092210-1150 NUT, LOCK, FLANGED 12MMNUT, LOCK, FLANGED 12MM
