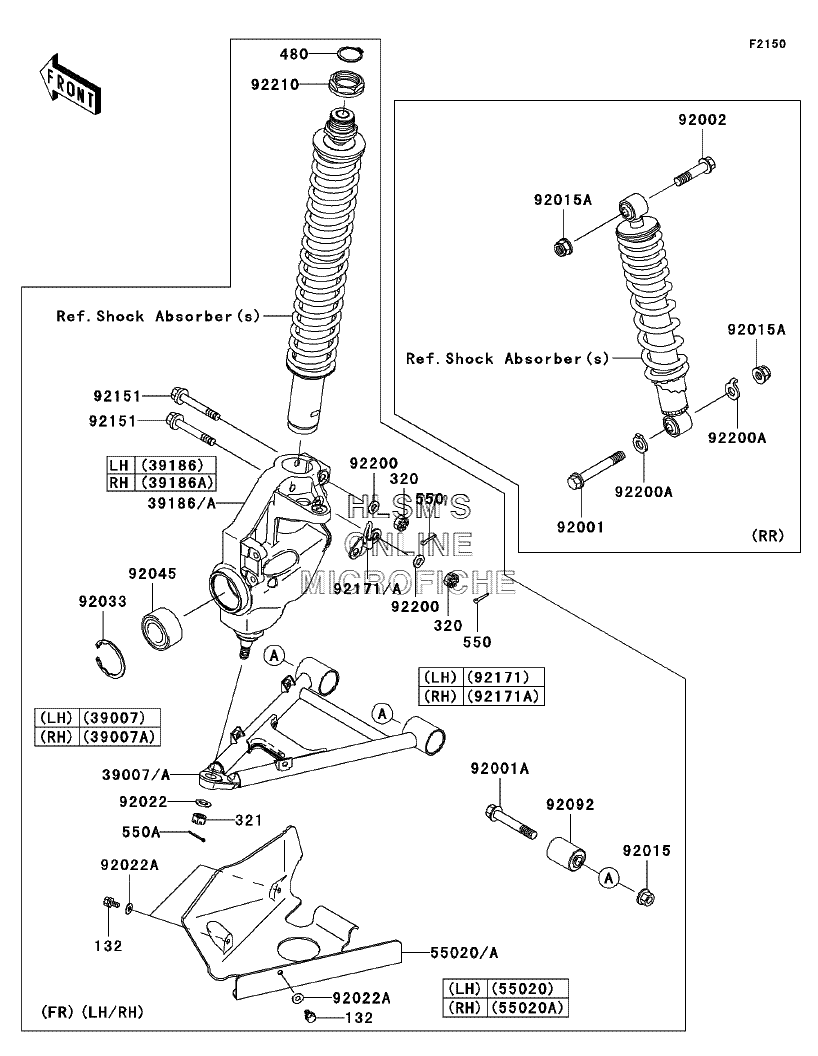

SUSPENSION для Kawasaki Prairie 360 4x4 (KVF360-A2) - 2004 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
320320H1000 NUT-CASTLENUT-CASTLE
-
321321H1200 NUT-CASTLE, 12MMNUT-CASTLE, 12MM
-
480480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
3900739007-0053 ARM-SUSP (LEFT)ARM-SUSP (LEFT)
-
39007A39007-0054 ARM-SUSP (RIGHT)ARM-SUSP (RIGHT)
-
3918639186-0043 KNUCKLE ASSY, FRONT (LEFT)KNUCKLE ASSY, FRONT (LEFT)
-
39186A39186-0044 KNUCKLE ASSY, FRONT (RIGHT)KNUCKLE ASSY, FRONT (RIGHT)
-
5502055020-1768 GUARD, FRONT AXLE (LEFT)GUARD, FRONT AXLE (LEFT)
-
55020A55020-1769 GUARD, FRONT AXLE (RIGHT)GUARD, FRONT AXLE (RIGHT)
-
9200192001-1693 BOLT, FLANGED, 12X88BOLT, FLANGED, 12X88
-
92001A92001-1986 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
9200292002-1840 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
9201592015-1426 NUT, 12MMNUT, 12MM
-
92015A92015-1617 NUT, FLANGED, LOCK, 12MMNUT, FLANGED, LOCK, 12MM
-
9202292022-1065 WASHER, 12.3X22X1.6WASHER, 12.3X22X1.6
-
92022A92022-1344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
9203392033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-1448 BEARING-BALL, 30BWD08ABEARING-BALL, 30BWD08A
-
9209292092-7501 BUSHING-RUBBERBUSHING-RUBBER
-
9215192151-1879 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
9217192171-1499 CLAMP (LEFT)CLAMP (LEFT)
-
92171A92171-1500 CLAMP (RIGHT)CLAMP (RIGHT)
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
92200A92200-7501 WASHER, CLAW, 12.7X25.4X3.4WASHER, CLAW, 12.7X25.4X3.4
-
9221092210-1066 NUT, 35MMNUT, 35MM
