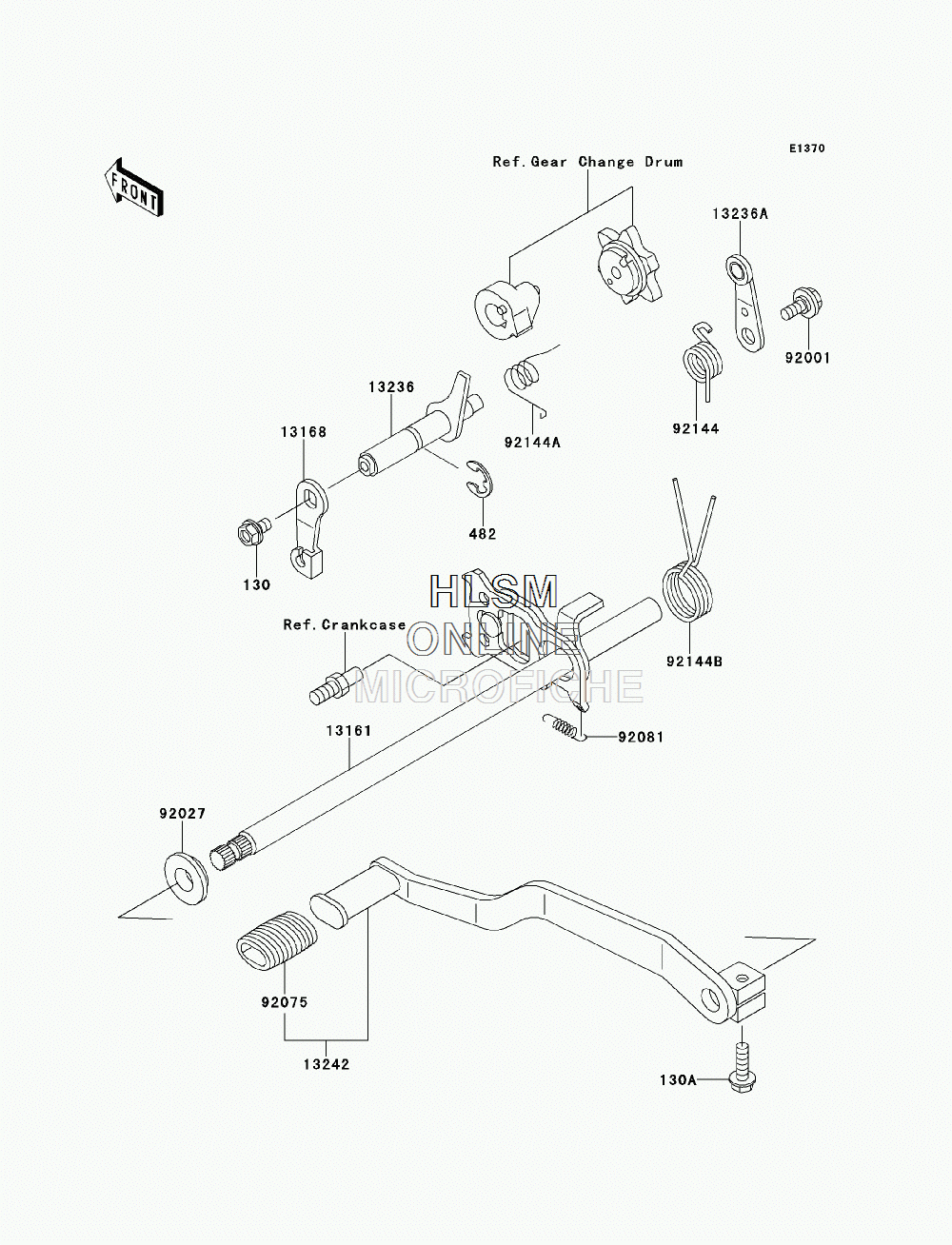

GEAR CHANGE MECHANISM для Kawasaki BAYOU 250 (KLF250-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130C0610 BOLT-FLANGED, 6X10, (BLACK)BOLT-FLANGED, 6X10, (BLACK)
-
130A130S0620 BOLT-FLANGED, 6X20, (BLACK)BOLT-FLANGED, 6X20, (BLACK)
-
482482L0100 CIRCLIP-TYPE-E, 10MMCIRCLIP-TYPE-E, 10MM
-
1316113161-1238 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316813168-1357 LEVER, REVERSE CABLELEVER, REVERSE CABLE
-
1323613236-1157 LEVER-COMP, REVERSELEVER-COMP, REVERSE
-
13236A13236-1164 LEVER-COMP, CHANGE POSITIONLEVER-COMP, CHANGE POSITION
-
1324213242-1234 LEVER-ASSY-CHANGE, PEDALLEVER-ASSY-CHANGE, PEDAL
-
9200192001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9202792027-1891 COLLAR, L=5.2COLLAR, L=5.2
-
9207592075-1585 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1753 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1162 SPRINGSPRING
-
92144A92144-1163 SPRINGSPRING
-
92144B92144-1359 SPRING, CHANGE SHAFT RETURNSPRING, CHANGE SHAFT RETURN
