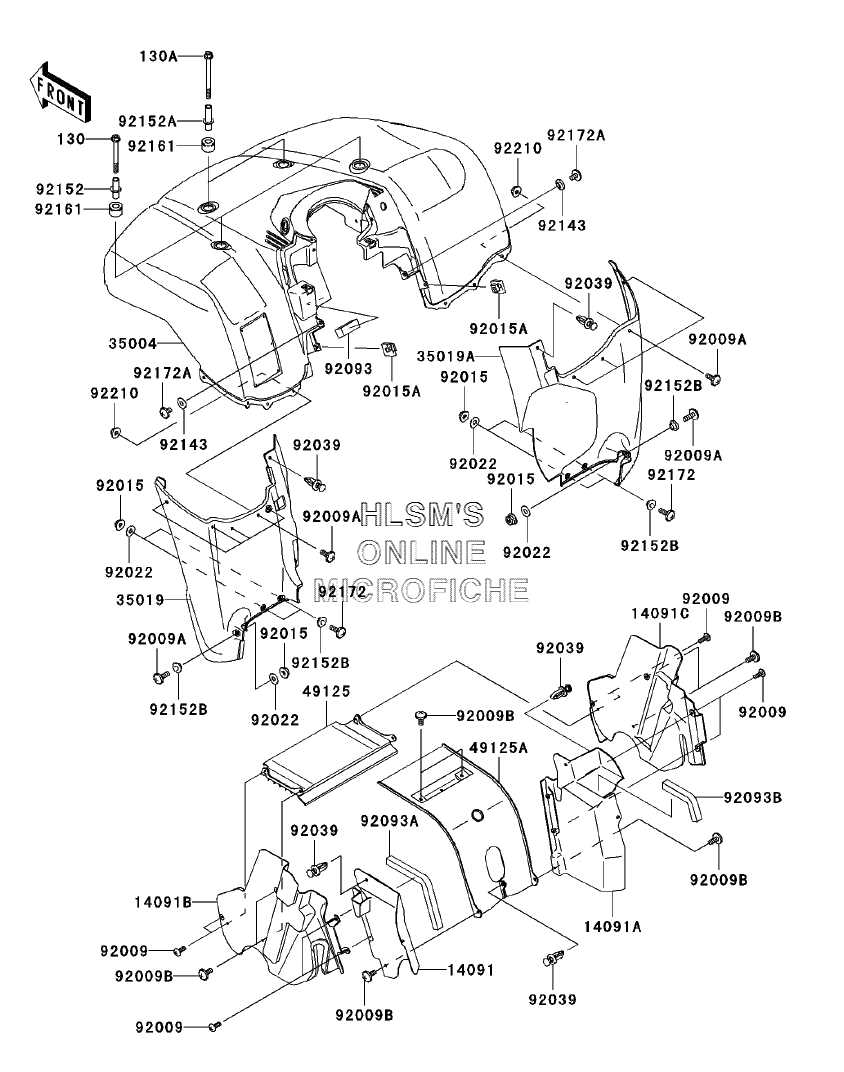

FENDER - FRONT для Kawasaki Brute Force 650 4x4 Realtree Hardwoods Green HD (KVF650-E1) - 2005 года выпуска
-
№АртикулНазвание
-
130130S0875 BOLT-FLANGED, 8X75BOLT-FLANGED, 8X75
-
130A130S0895 BOLT-FLANGED, 8X95BOLT-FLANGED, 8X95
-
1409114091-1282 COVER, SIDE, REAR (LEFT)COVER, SIDE, REAR (LEFT)
-
14091A14091-1283 COVER, SIDE, REAR (RIGHT)COVER, SIDE, REAR (RIGHT)
-
14091B14091-1428 COVER, SIDE, FRONT (LEFT)COVER, SIDE, FRONT (LEFT)
-
14091C14091-1429 COVER, SIDE, FRONT (RIGHT)COVER, SIDE, FRONT (RIGHT)
-
3500435004-0044-826 FENDER-FRONT (C.H.GREEN)FENDER-FRONT (C.H.GREEN)
-
3501935019-0038-6Z FLAP, FRONT (LEFT/F.BLACK)FLAP, FRONT (LEFT/F.BLACK)
-
35019A35019-0039-6Z FLAP, FRONT (RIGHT/F.BLACK)FLAP, FRONT (RIGHT/F.BLACK)
-
4912549125-0006 SHROUD, FRONT (LOWER)SHROUD, FRONT (LOWER)
-
49125A49125-1081 SHROUD, FRONT (UPPER)SHROUD, FRONT (UPPER)
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
92009B92009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9203992039-1229 RIVETRIVET
-
9209392093-0038 SEAL, FRONT FENDER (LEFT)SEAL, FRONT FENDER (LEFT)
-
92093A92093-0039 SEAL, INNER COVER (LEFT)SEAL, INNER COVER (LEFT)
-
92093B92093-0040 SEAL, INNER COVER (RIGHT)SEAL, INNER COVER (RIGHT)
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0026 COLLAR, L=60.7COLLAR, L=60.7
-
92152A92152-0222 COLLAR, L=76.8COLLAR, L=76.8
-
92152B92152-0224 COLLARCOLLAR
-
9216192161-1166 DAMPER, L=25.5DAMPER, L=25.5
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
92172A92172-0005 SCREW, 6X10SCREW, 6X10
-
9221092210-1368 NUT, 6MMNUT, 6MM
