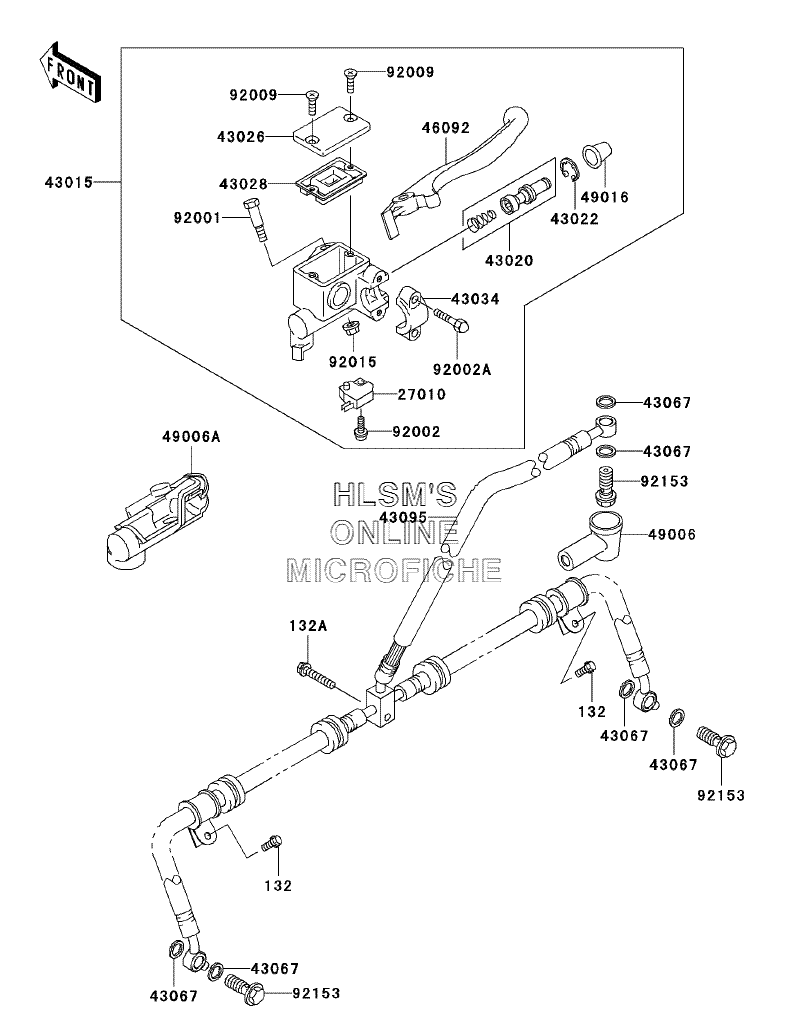

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Brute Force 750 4x4i Realtree Hardwoods Green HD (KVF750-B1) - 2005 года выпуска
-
№АртикулНазвание
-
132132J0512 BOLT-FLANGED-SMALL, 5X12BOLT-FLANGED-SMALL, 5X12
-
132A132J0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0036 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1054 PISTON-COMP-BRAKE, FRONTPISTON-COMP-BRAKE, FRONT
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-0078 HOSE-BRAKE, FRHOSE-BRAKE, FR
-
4609246092-1208 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
49006A49006-1338 BOOT (RIGHT)BOOT (RIGHT)
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
