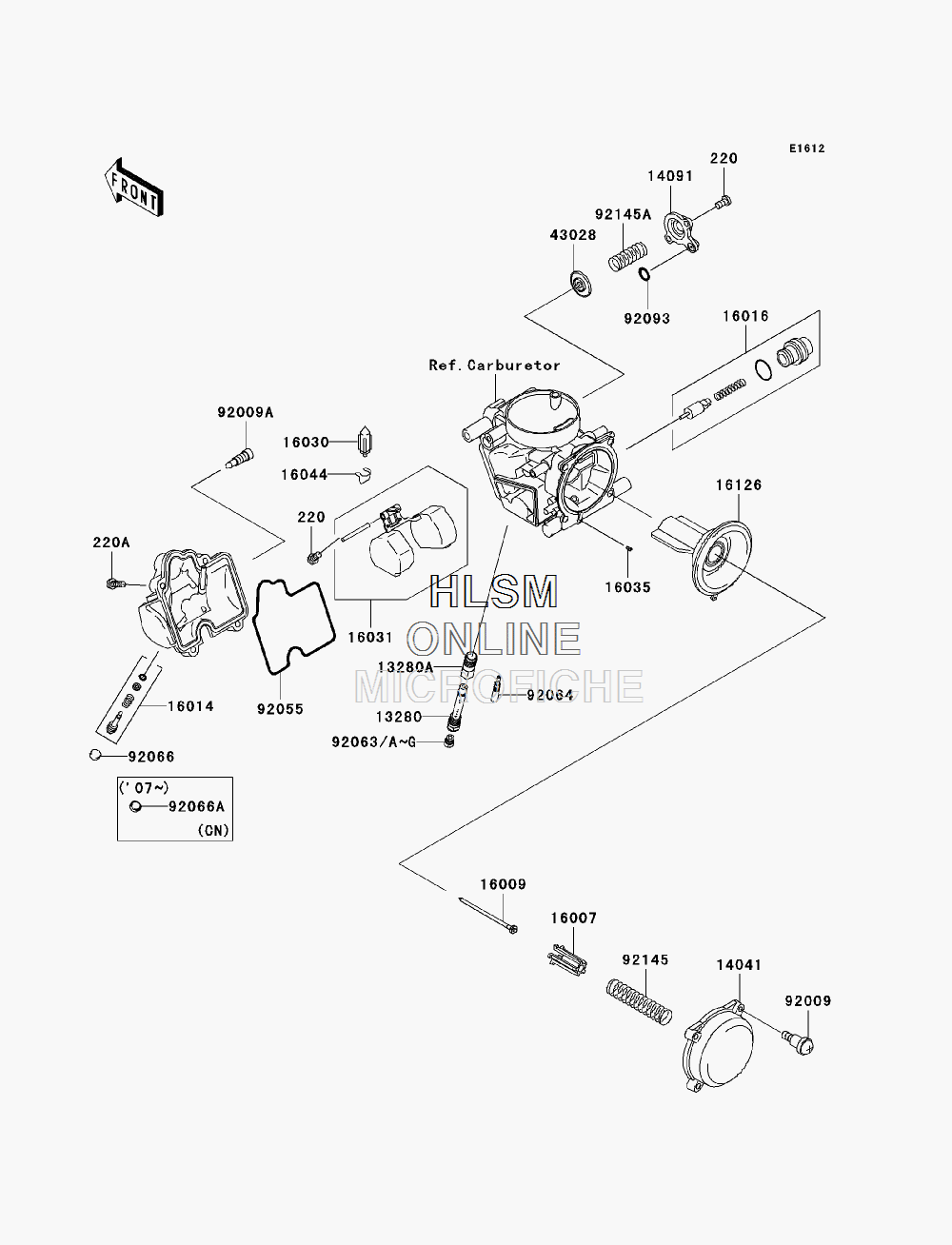

CARBURETOR PARTS для Kawasaki Brute Force 650 4x4i Realtree Hardwoods Green HD (KVF650G6F) - 2006 года выпуска
-
№АртикулНазвание
-
220220AA0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
1328013280-0185 HOLDERHOLDER
-
13280A13280-1096 HOLDER,JETHOLDER,JET
-
1404114041-1091 CAP-CHAMBER,MIXINGCAP-CHAMBER,MIXING
-
1409114091-1246 COVER,AIR CUT VALVECOVER,AIR CUT VALVE
-
1600716007-1117 SEAT-SPRING,VALVESEAT-SPRING,VALVE
-
1600916009-1544 NEEDLE-JET,N60NNEEDLE-JET,N60N
-
1601416014-1101 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1117 PLUNGERPLUNGER
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1097 FLOATFLOAT
-
1603516035-1055 JET-AIR, LEAKJET-AIR, LEAK
-
1604416044-007 CLAMP,FLOAT VALVECLAMP,FLOAT VALVE
-
1612616126-0015 VALVEVALVE
-
4302843028-1085 DIAPHRAGM,AIR CUT VALVEDIAPHRAGM,AIR CUT VALVE
-
9200992009-1549 SCREW,4X4.4SCREW,4X4.4
-
92009A92009-1551 SCREW,DRAIN,6X0.75SCREW,DRAIN,6X0.75
-
9205592055-1589 RING-O,FLOAT CHAMBERRING-O,FLOAT CHAMBER
-
9206392063-1015 JET-MAIN,#138 (OPTION)JET-MAIN,#138 (OPTION)
-
92063A92063-1016 JET-MAIN,#142 (OPTION)JET-MAIN,#142 (OPTION)
-
92063B92063-1324 JET-MAIN,#148 (OPTION)JET-MAIN,#148 (OPTION)
-
92063C92063-1330 JET-MAIN,#150 (OPTION)JET-MAIN,#150 (OPTION)
-
92063D92063-1331 JET-MAIN,#152 (OPTION)JET-MAIN,#152 (OPTION)
-
92063E92063-1332 JET-MAIN,#155JET-MAIN,#155
-
92063F92063-1344 JET-MAIN,#158 (OPTION)JET-MAIN,#158 (OPTION)
-
92063G92063-1345 JET-MAIN,#160 (OPTION)JET-MAIN,#160 (OPTION)
-
9206492064-0011 JET-PILOT,#38JET-PILOT,#38
-
9206692066-1051 PLUG,PILOT AIR SCREW,6.9X2 (USA ONLY)PLUG,PILOT AIR SCREW,6.9X2 (USA ONLY)
-
9209392093-1046 SEAL,"U"RINGSEAL,"U"RING
-
9214592145-0267 SPRINGSPRING
-
92145A92145-1450 SPRING,AIR CUT VALVESPRING,AIR CUT VALVE
-
220A220AA0414 SCREW-PAN-CROS,4X14SCREW-PAN-CROS,4X14
