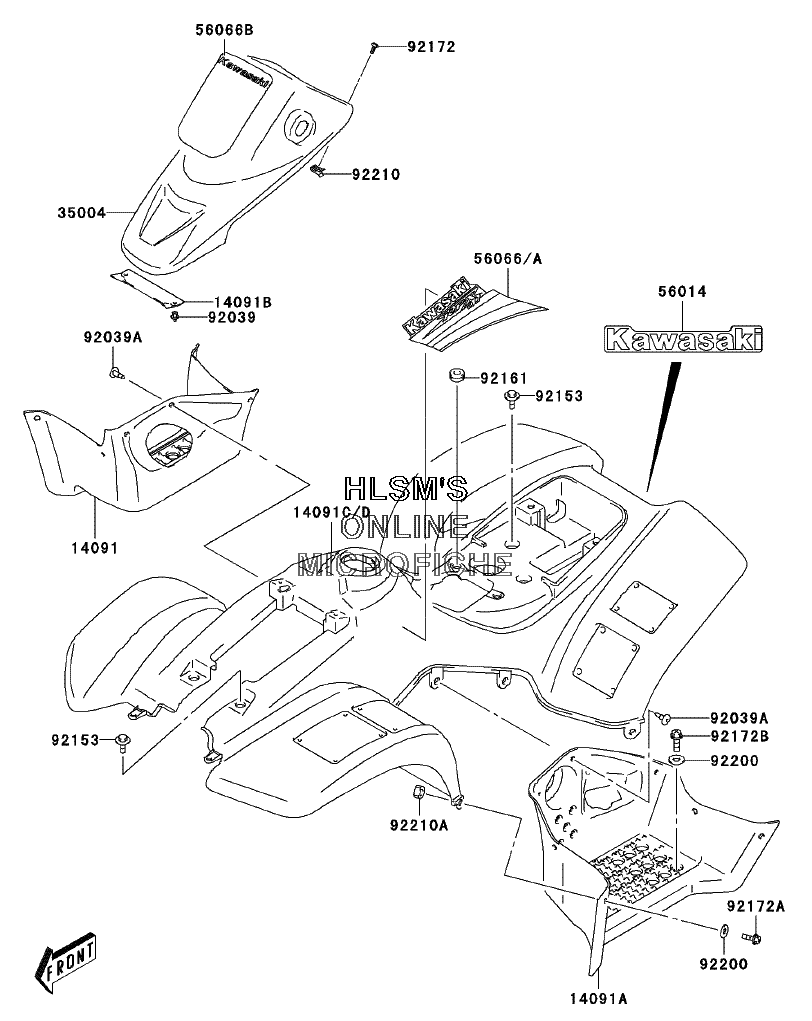

FENDERS для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1409114091-S067-504 COVER , FRAME (RIGHT) (BLACK)COVER , FRAME (RIGHT) (BLACK)
-
14091A14091-S068-504 COVER , FRAME (LEFT) (BLACK)COVER , FRAME (LEFT) (BLACK)
-
14091B14091-S070-504 COVER, FRONT FENDER (BLACK)COVER, FRONT FENDER (BLACK)
-
14091C14091-S159-535 COVER , FRAME CENTER, (L.GREEN) (US ONLY)COVER , FRAME CENTER, (L.GREEN) (US ONLY)
-
14091D14091-S160-535 COVER , FRAME CENTER, (L.GREEN) (CANADA ONLY)COVER , FRAME CENTER, (L.GREEN) (CANADA ONLY)
-
3500435004-S007-504 FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
5601456014-S012-554 EMBLEM (BLACK/GREEN)EMBLEM (BLACK/GREEN)
-
5606656066-S003-558 PATTERN, (WHITE/BLACK)PATTERN, (WHITE/BLACK)
-
56066A56066-S033-587 PATTERN (RIGHT) (WHT/BLK/GLD/GRN)PATTERN (RIGHT) (WHT/BLK/GLD/GRN)
-
56066B56066-S034-587 PATTERN (LEFT) (WHT/BLK/GLD/GRN)PATTERN (LEFT) (WHT/BLK/GLD/GRN)
-
9203992039-S003-505 RIVET, O. (BLACK)RIVET, O. (BLACK)
-
92039A92039-S005-506 RIVET (BLACK)RIVET (BLACK)
-
9215392153-S196 BOLTBOLT
-
9216192161-S069 DAMPER , FRAME COVERDAMPER , FRAME COVER
-
9217292172-S018 SCREWSCREW
-
92172A92172-S019 SCREWSCREW
-
92172B92172-S022 SCREWSCREW
-
9220092200-S005 WASHER, 6.5X16X1.2WASHER, 6.5X16X1.2
-
9221092210-S023 NUT, COWLNUT, COWL
-
92210A92210-S054 NUTNUT
