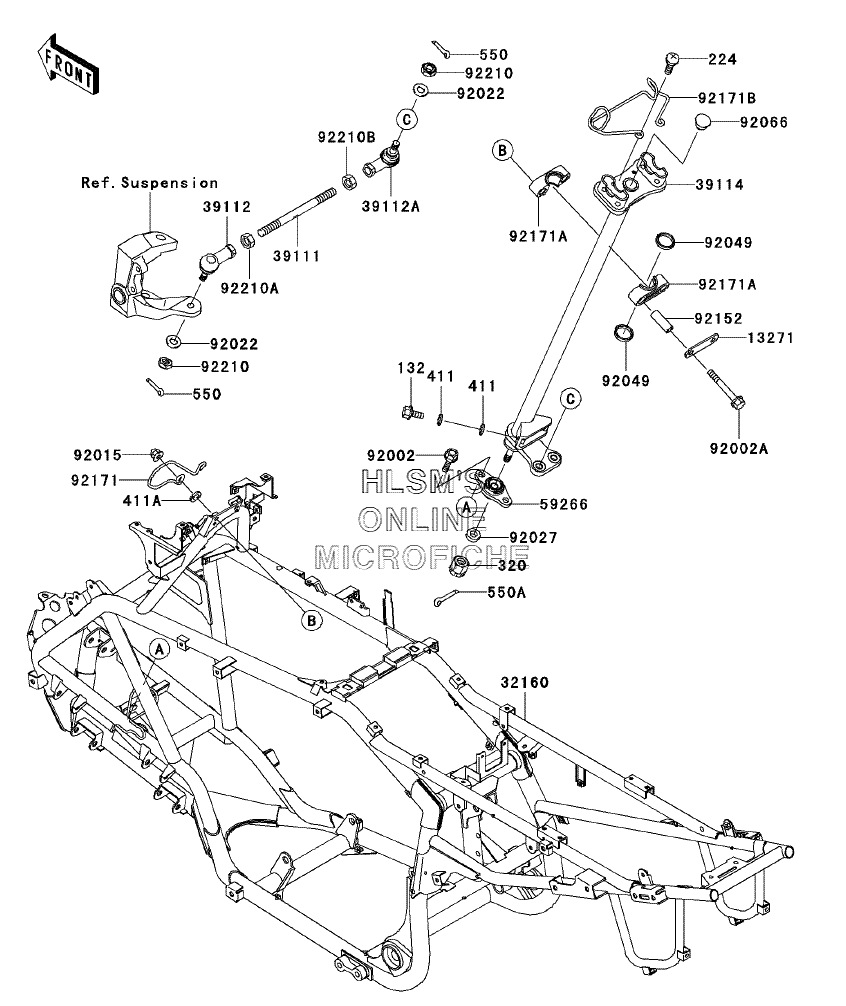

FRAME для Kawasaki KFX700 (SILVER) (KS700C6F) - 2006 года выпуска

№

Артикул

Название
132

132J0616 BOLT-FLANGED-SMALL, 6X16

BOLT-FLANGED-SMALL, 6X16

390 ₽
224

224C0614 SCREW-PAN-WP-CROS, 6X14

SCREW-PAN-WP-CROS, 6X14

720 ₽
320

320H1000 NUT-CASTLE

NUT-CASTLE

1 380 ₽
411

411B0600 WASHER-PLAIN, 6MM

WASHER-PLAIN, 6MM

520 ₽
411A

411F0800 WASHER-PLAIN, 8MM (BLACK)

WASHER-PLAIN, 8MM (BLACK)

270 ₽
550

550D2015 PIN-COTTER, 2.0X15

PIN-COTTER, 2.0X15

160 ₽
550A

550D2518 PIN-COTTER, 2.5X18

PIN-COTTER, 2.5X18

90 ₽
13271

13271-1887 PLATE

PLATE

360 ₽
32160

32160-0028-HN FRAME-COMP (G.GRAY)

FRAME-COMP (G.GRAY)

130 ₽
39111

39111-0010 ROD-TIE

ROD-TIE

2 920 ₽
39112

39112-1087 RODEND-TIE, RIGHT HANDED

RODEND-TIE, RIGHT HANDED

6 130 ₽
39112A

39112-1088 RODEND-TIE, LEFT HANDED

RODEND-TIE, LEFT HANDED

6 130 ₽
39114

39114-0001 SHAFT-COMP-STRG

SHAFT-COMP-STRG

37 340 ₽
59266

59266-0001 JOINT-BALL

JOINT-BALL

25 220 ₽
92002

92002-1250 BOLT, 8X20

BOLT, 8X20

890 ₽
92002A

92002-1349 BOLT, FLANGED, 8X70

BOLT, FLANGED, 8X70

840 ₽
92015

92015-1174 NUT, CAP, 8MM (BLACK)

NUT, CAP, 8MM (BLACK)

780 ₽
92022

92022-3742 WASHER, 10.2X20X1.5

WASHER, 10.2X20X1.5

730 ₽
92027

92027-1817 COLLAR, 10X21.3X7

COLLAR, 10X21.3X7

2 270 ₽
92049

92049-1611 SEAL-OIL, SR25.4X31X3.8

SEAL-OIL, SR25.4X31X3.8

670 ₽
92066

92066-1220 PLUG

PLUG

780 ₽
92152

92152-1456 COLLAR, 9.1X13.9X39.2

COLLAR, 9.1X13.9X39.2

1 190 ₽
92171

92171-0066 CLAMP, CABLE

CLAMP, CABLE

1 490 ₽
92171A

92171-1542 CLAMP, STEERING SHAFT

CLAMP, STEERING SHAFT

1 240 ₽
92171B

92171-1543 CLAMP, CABLE AND HARNESS

CLAMP, CABLE AND HARNESS

2 950 ₽
92210

92210-1184 NUT, LOCK, 10MM

NUT, LOCK, 10MM

960 ₽
92210A

92210-1385 NUT, RIGHT HANDED

NUT, RIGHT HANDED

980 ₽
92210B

92210-1386 NUT, LEFT HANDED

NUT, LEFT HANDED

980 ₽
