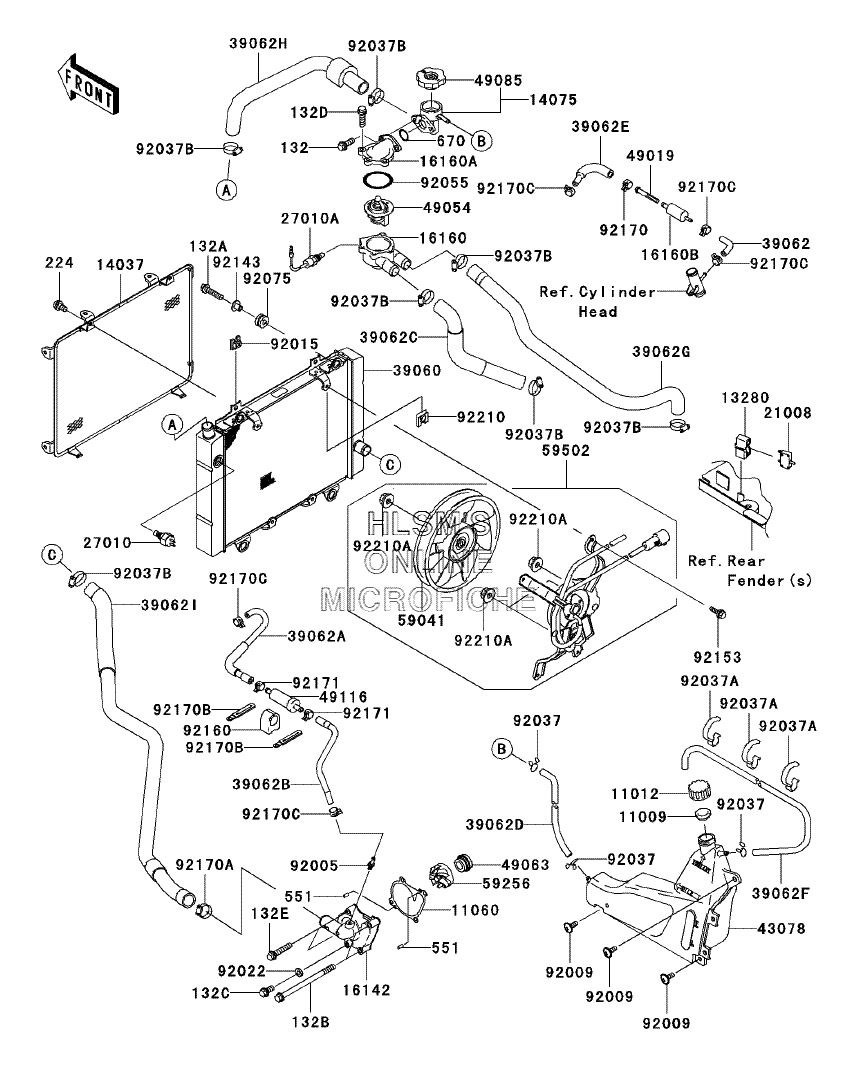

RADIATOR для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700D6F) - 2006 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-1964 GASKET, WATER PUMPGASKET, WATER PUMP
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-1283 SCREEN, RADIATORSCREEN, RADIATOR
-
1407514075-1105 CAP-ASSY, PRESSURECAP-ASSY, PRESSURE
-
1614216142-0002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-1112 BODY, THERMOSTAT (LOWER)BODY, THERMOSTAT (LOWER)
-
16160A16160-1113 BODY, THERMOSTAT (UPPER)BODY, THERMOSTAT (UPPER)
-
16160B16160-1359 BODYBODY
-
2100821008-0001 BREAKER, FAN MOTORBREAKER, FAN MOTOR
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
27010A27010-1346 SWITCH, SENSOR WATERSWITCH, SENSOR WATER
-
3906039060-0011 RADIATORRADIATOR
-
3906239062-1816 HOSE-COOLING, HEAD-FILTERHOSE-COOLING, HEAD-FILTER
-
39062A39062-1817 HOSE-COOLING, CARB-VALVEHOSE-COOLING, CARB-VALVE
-
39062B39062-1818 HOSE-COOLING, VALVE-WATER PUMPHOSE-COOLING, VALVE-WATER PUMP
-
39062C39062-1820 HOSE-COOLING, HEAD, FR-THERMOHOSE-COOLING, HEAD, FR-THERMO
-
39062D39062-1823 HOSE-COOLING, THERMO-RESERVHOSE-COOLING, THERMO-RESERV
-
39062E39062-1858 HOSE-COOLING, FILTER-CARBHOSE-COOLING, FILTER-CARB
-
39062F39062-1872 HOSE-COOLING, 5.5X10.5X1030HOSE-COOLING, 5.5X10.5X1030
-
39062G39062-1874 HOSE-COOLING, HEAD, RR-THERMOHOSE-COOLING, HEAD, RR-THERMO
-
39062H39062-1875 HOSE-COOLING, THERMO-RADIATORHOSE-COOLING, THERMO-RADIATOR
-
39062I39062-1893 HOSE-COOLING, RADIATOR-PUMPHOSE-COOLING, RADIATOR-PUMP
-
4307843078-1171 RESERVOIRRESERVOIR
-
4901949019-1068 FILTER-WATERFILTER-WATER
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-1067 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4911649116-1190 VALVE-ASSYVALVE-ASSY
-
5904159041-1062 FANFAN
-
5925659256-1069 IMPELLERIMPELLER
-
5950259502-0012 FAN-ASSYFAN-ASSY
-
9200592005-1337 FITTING, BLEED PIPEFITTING, BLEED PIPE
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1487 NUTNUT
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1552 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
132132H0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132H0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132B132J0690 BOLT-FLANGED-SMALL, 6X90BOLT-FLANGED-SMALL, 6X90
-
132C132Y0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132D132Y0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132E132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
224224C0612 SCREW-PAN-WP-CROS, 6X12SCREW-PAN-WP-CROS, 6X12
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
670670B2020 O RING, 20MMO RING, 20MM
-
9205592055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215392153-0531 BOLTBOLT
-
9216092160-1451 DAMPER, VALVEDAMPER, VALVE
-
9217092170-1491 CLAMPCLAMP
-
92170A92170-1497 CLAMPCLAMP
-
92170B92170-1514 CLAMPCLAMP
-
92170C92170-2042 CLAMPCLAMP
-
9217192171-0515 CLAMPCLAMP
-
9221092210-1323 NUTNUT
-
92210A92210-1396 NUTNUT
