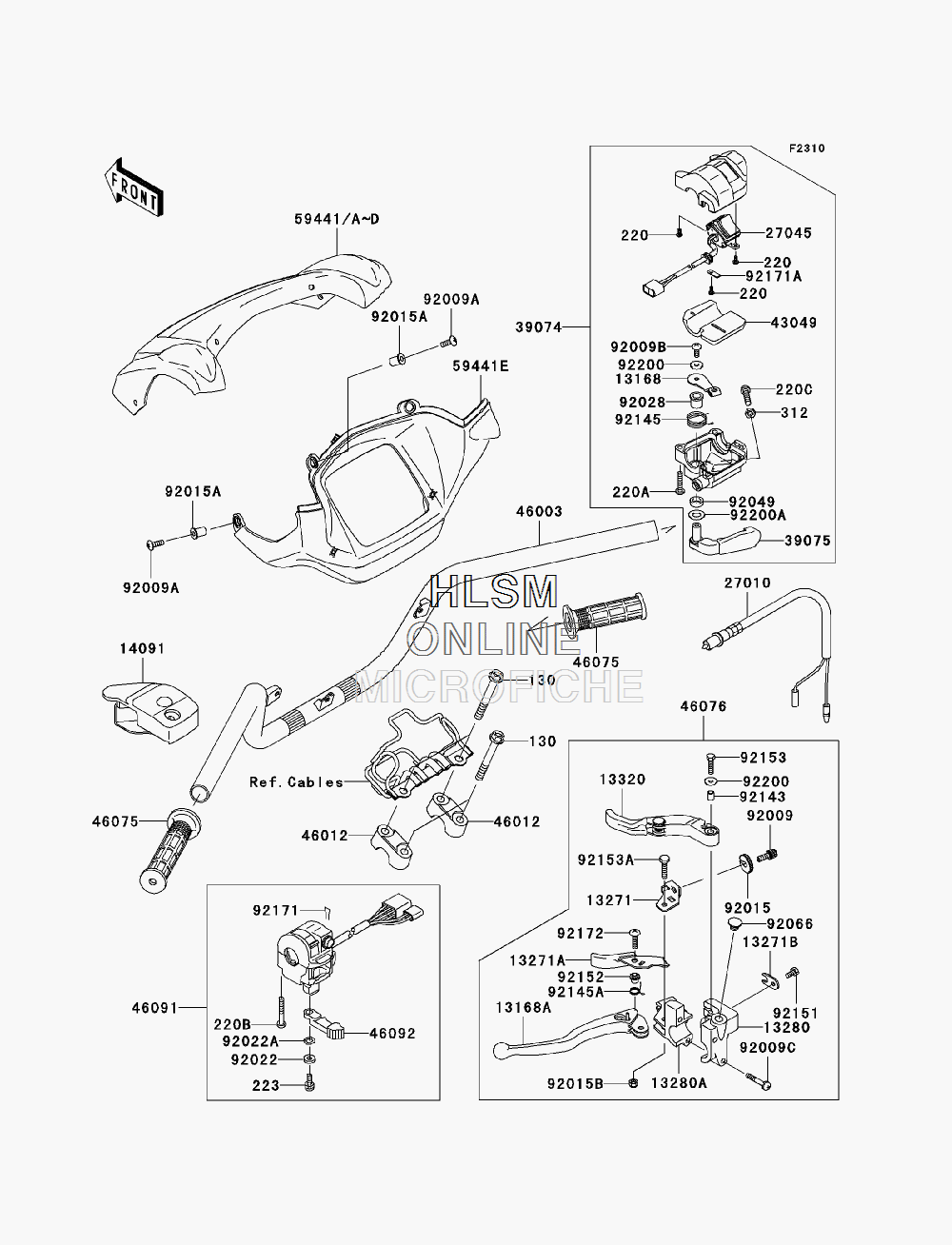

HANDLEBAR для Kawasaki BRUTE FORCE 650 4X4 (KVF650D7F) - 2007 года выпуска
-
№АртикулНазвание
-
1316813168-1715 LEVERLEVER
-
13168A13168-1736 LEVER, LEFT HANDLEVER, LEFT HAND
-
1327113271-1259 PLATE,LOCKPLATE,LOCK
-
13271A13271-1635 PLATE, LEVER LOCKPLATE, LEVER LOCK
-
13271B13271-1636 PLATE,WIRE OUTER STOPPERPLATE,WIRE OUTER STOPPER
-
1328013280-1226 HOLDER,DIFF LOCK LEVERHOLDER,DIFF LOCK LEVER
-
13280A13280-1227 HOLDER, LEVER, LEFT HANDHOLDER, LEVER, LEFT HAND
-
1332013320-1018 LEVER-ASSY,DEFF LOCKLEVER-ASSY,DEFF LOCK
-
1409114091-1403 COVER,DIFF LOCK LEVERCOVER,DIFF LOCK LEVER
-
2701027010-1294 SWITCH,BRAKESWITCH,BRAKE
-
2704527045-0010 SWITCH-ASSYSWITCH-ASSY
-
3907439074-0002 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-1062 LEVER-THROTTLELEVER-THROTTLE
-
4304943049-1088 PACKINGPACKING
-
4600346003-1580 HANDLEHANDLE
-
4601246012-1168 HOLDER-HANDLEHOLDER-HANDLE
-
4607546075-7501 GRIP,HANDLEGRIP,HANDLE
-
4607646076-1238 LEVER-ASSY-GRIP,DEFF LOCKLEVER-ASSY-GRIP,DEFF LOCK
-
4609146091-1847 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-1217 LEVER-GRIP,CHOKELEVER-GRIP,CHOKE
-
5944159441-0005-260 COVER-HANDLE, FRONT,A.RED (FOR 260)COVER-HANDLE, FRONT,A.RED (FOR 260)
-
59441A59441-0005-286 COVER-HANDLE, FRONT,W.GREEN (FOR 286)COVER-HANDLE, FRONT,W.GREEN (FOR 286)
-
59441B59441-0005-290 COVER-HANDLE, FRONT,L.GREEN (FOR 290)COVER-HANDLE, FRONT,L.GREEN (FOR 290)
-
59441D59441-0005-839 COVER-HANDLE, FRONT,BLACK (FOR 839)COVER-HANDLE, FRONT,BLACK (FOR 839)
-
59441E59441-0006-6Z COVER-HANDLE, REAR,F.BLACKCOVER-HANDLE, REAR,F.BLACK
-
9200992009-1435 SCREW,CABLE ADJUST,8MMSCREW,CABLE ADJUST,8MM
-
92009A92009-1654 SCREW,5X16,BLACKSCREW,5X16,BLACK
-
92009B92009-1959 SCREWSCREW
-
92009C92009-1961 SCREW,6X30SCREW,6X30
-
9201592015-1596 NUT,CABLE ADJUST LOCK,8MMNUT,CABLE ADJUST LOCK,8MM
-
92015A92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
92015B92015-1829 NUTNUT
-
9202292022-1837 WASHER,5MMWASHER,5MM
-
92022A92022-1838 WASHER,WAVE,5MMWASHER,WAVE,5MM
-
9202892028-1986 BUSHINGBUSHING
-
9204992049-1578 SEAL-OILSEAL-OIL
-
9206692066-1077 PLUG,9.5X8,POLYETHYLENEPLUG,9.5X8,POLYETHYLENE
-
9214392143-1216 COLLARCOLLAR
-
9214592145-1392 SPRINGSPRING
-
130130CA0860 BOLT-FLANGED,8X60BOLT-FLANGED,8X60
-
220220AA0308 SCREW-PAN-CROS,3X8SCREW-PAN-CROS,3X8
-
220A220AB0525 SCREW-PAN-CROS,5X25SCREW-PAN-CROS,5X25
-
220B220AB0535 SCREW-PAN-CROSS,5X35SCREW-PAN-CROSS,5X35
-
220C220AB0625 SCREW-PAN-CROS,6X25SCREW-PAN-CROS,6X25
-
223223AB0512 SCREW-PAN-WS-CROS,5X12SCREW-PAN-WS-CROS,5X12
-
312312AB0600 NUT-HEX,6MM,BLACKNUT-HEX,6MM,BLACK
-
92145A92145-1429 SPRINGSPRING
-
9215192151-1975 BOLT,5X10BOLT,5X10
-
9215292152-1176 COLLARCOLLAR
-
9215392153-1129 BOLT,5X20BOLT,5X20
-
92153A92153-1919 BOLTBOLT
-
9217192171-1095 CLAMP,CLIPCLAMP,CLIP
-
92171A92171-1344 CLAMPCLAMP
-
9217292172-0078 SCREW,5X20SCREW,5X20
-
9220092200-1558 WASHERWASHER
-
92200A92200-1559 WASHERWASHER
