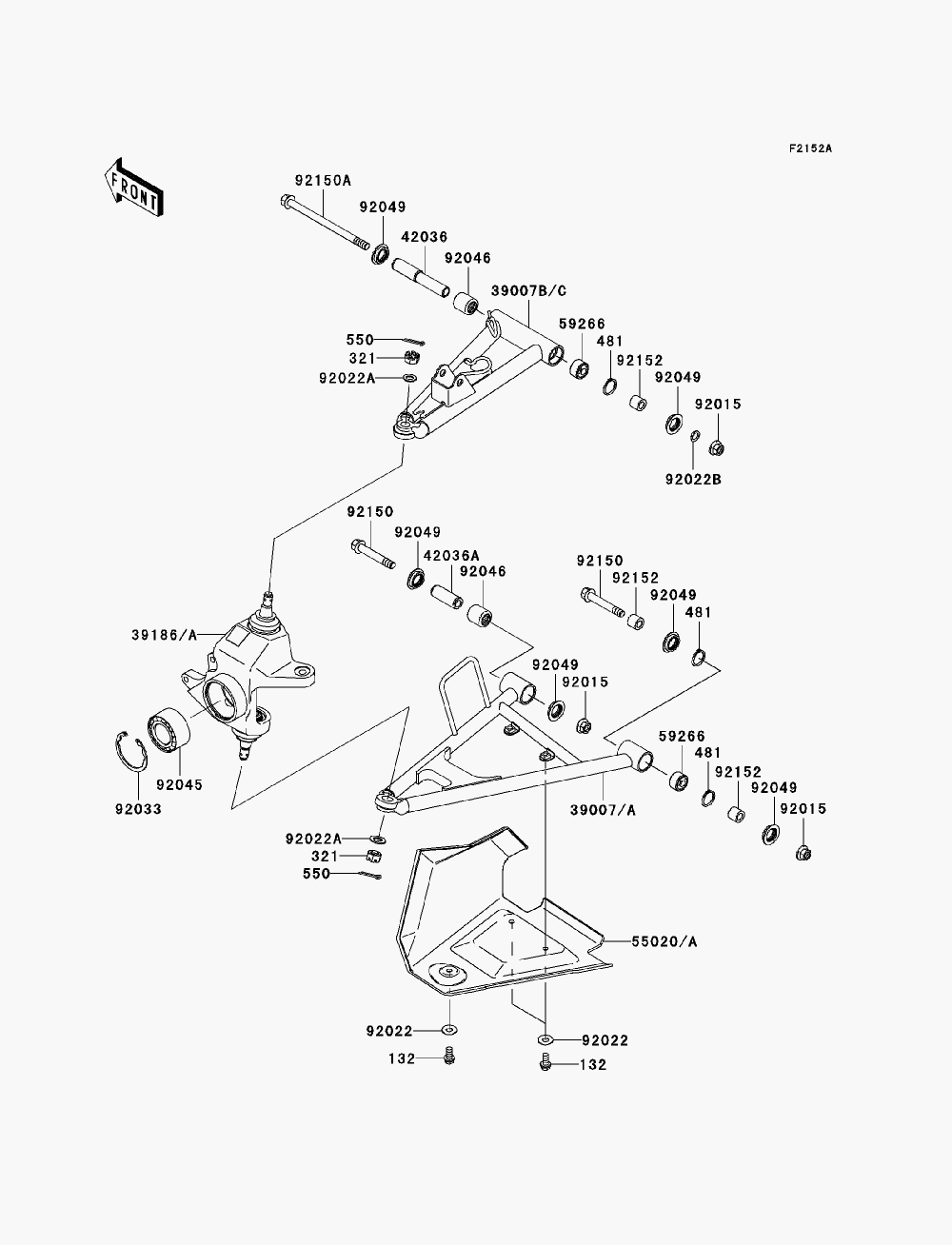

SUSPENSION - FRONT для Kawasaki BRUTE FORCE 750 4X4I (KVF750A7F) - 2007 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
321321H1200 NUT-CASTLE,12MMNUT-CASTLE,12MM
-
481481J2400 CIRCLIPCIRCLIP
-
550550D3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
3900739007-0064 ARM-SUSP, FRONT,LWR, LEFT HANDARM-SUSP, FRONT,LWR, LEFT HAND
-
39007A39007-0065 ARM-SUSP, FRONT,LWR, RIGHT HANDARM-SUSP, FRONT,LWR, RIGHT HAND
-
39007B39007-0066 ARM-SUSP, FRONT,UPP, LEFT HANDARM-SUSP, FRONT,UPP, LEFT HAND
-
39007C39007-0067 ARM-SUSP, FRONT,UPP, RIGHT HANDARM-SUSP, FRONT,UPP, RIGHT HAND
-
3918639186-0033 KNUCKLE ASSY, FRONT, LEFT HANDKNUCKLE ASSY, FRONT, LEFT HAND
-
39186A39186-0034 KNUCKLE ASSY, FRONT, RIGHT HANDKNUCKLE ASSY, FRONT, RIGHT HAND
-
4203642036-0016 SLEEVE,SUSPENSION ARMSLEEVE,SUSPENSION ARM
-
42036A42036-1376 SLEEVESLEEVE
-
5502055020-0109-6Z GUARD, FRONT ARM, LEFT HAND,F.BLACKGUARD, FRONT ARM, LEFT HAND,F.BLACK
-
55020A55020-0110-6Z GUARD, FRONT ARM, RIGHT HAND,F.BLACKGUARD, FRONT ARM, RIGHT HAND,F.BLACK
-
5926659266-0013 JOINT-BALLJOINT-BALL
-
9201592015-1415 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
9202292022-024 WASHER,7X16X1.2WASHER,7X16X1.2
-
92022A92022-1065 WASHER,12.3X22X1.6WASHER,12.3X22X1.6
-
92022B92022-1829 WASHER,10.2X16X1WASHER,10.2X16X1
-
9203392033-1274 RING-SNAP,55MMRING-SNAP,55MM
-
9204592045-1448 BEARING-BALL,30BWD08ABEARING-BALL,30BWD08A
-
9204692046-1046 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1223 SEAL-OIL,MHA17245.7FSEAL-OIL,MHA17245.7F
-
9215092150-1384 BOLT,FLANGED,10X63BOLT,FLANGED,10X63
-
92150A92150-1686 BOLT,FLANGED,10X150BOLT,FLANGED,10X150
-
9215292152-1455 COLLAR,10X17X14.5COLLAR,10X17X14.5
